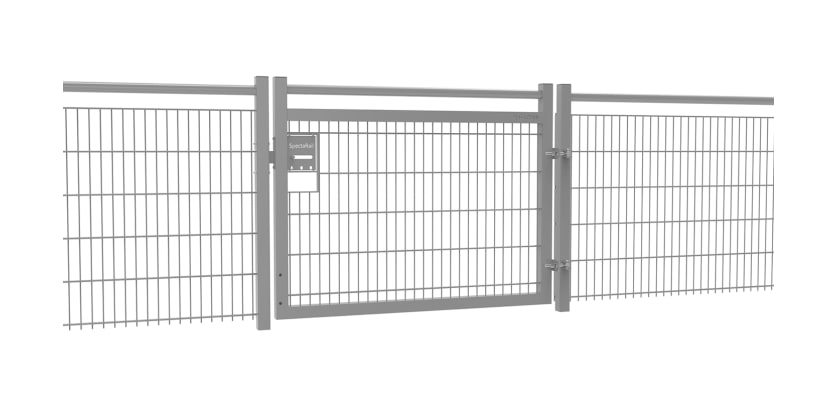

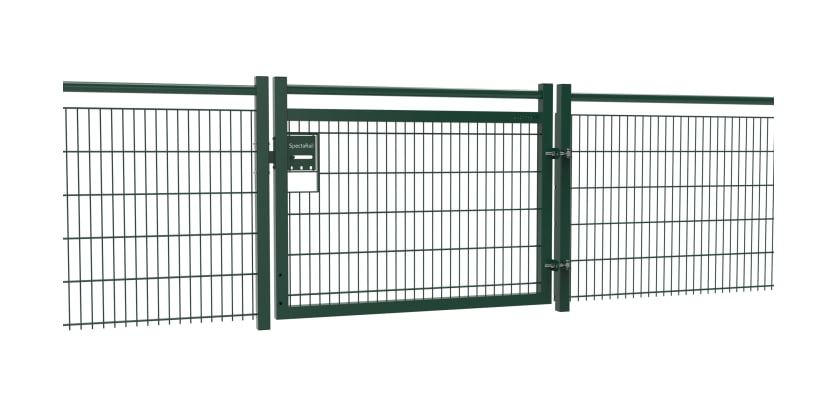

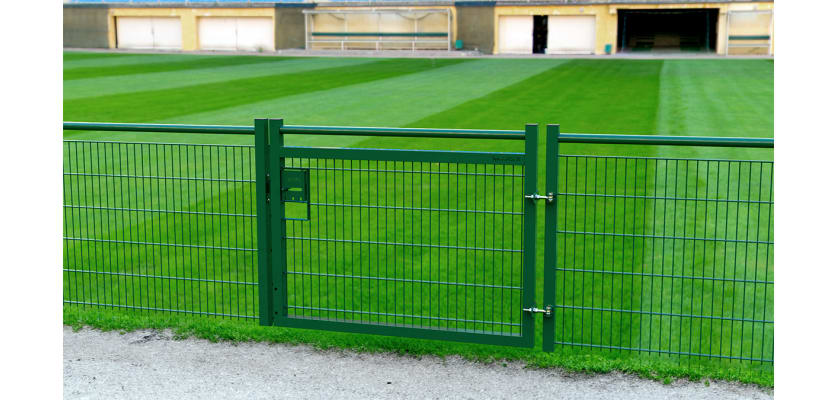

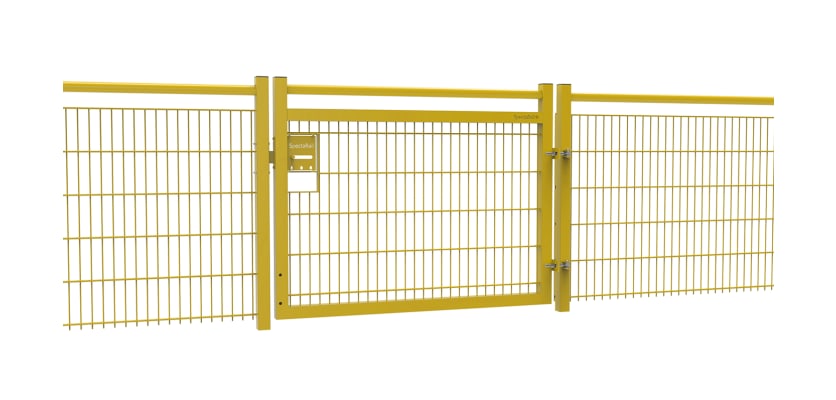

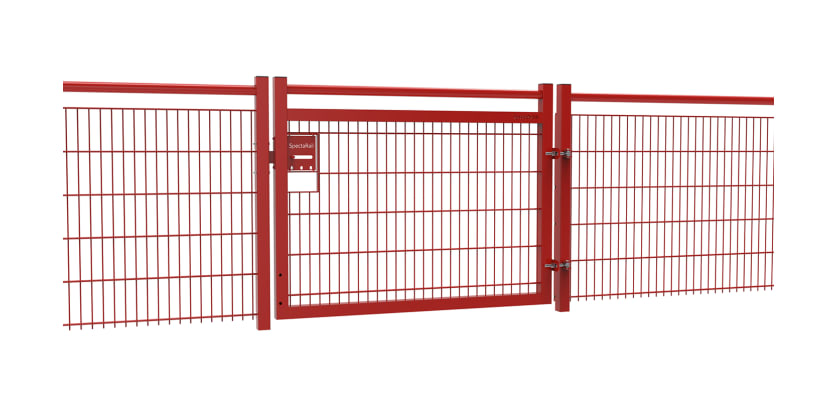

1.2m High x 1.5m Wide 868 Mesh SpectaRail® Single Leaf Gate Kit
Product Description
1.2m High x 1.5m Wide 868 Mesh SpectaRail® Single Leaf Gate Kit
Elevate the security and accessibility of your sports facility with First Fence's premium SpectaRail® single leaf gate kit, designed specifically to work with the SpectaRail® fencing system. Engineered for durability and functionality, these gates offer the perfect blend of robust protection and easy access, ensuring a safe and controlled environment for both spectators, participants, and staff.
Spectator railings serve several purposes, including safety, crowd control, and enhancing the viewing experience. Many sports venues are required to have proper safety measures in place, including railings. Spectator railing gates are an important part of an overall system, allowing control over who can enter specific areas, which is vital for maintaining security, as they can help to deter pitch invasion and other forms of unauthorised access.
The SpectaRail® single leaf gate kit from First Fence contains all the elements required for creating an essential element of your spectator railing system. The SpectaRail® line has been developed in compliance with the Sports and Play Construction Association (SAPCA) Code of Practice for the construction and maintenance of fencing systems for sports facilities.
The single leaf gate is SAPCA compliant ('pedestrian barrier').
Please note, that this product line has not been designed as a stadium crush barrier.
Features and Benefits

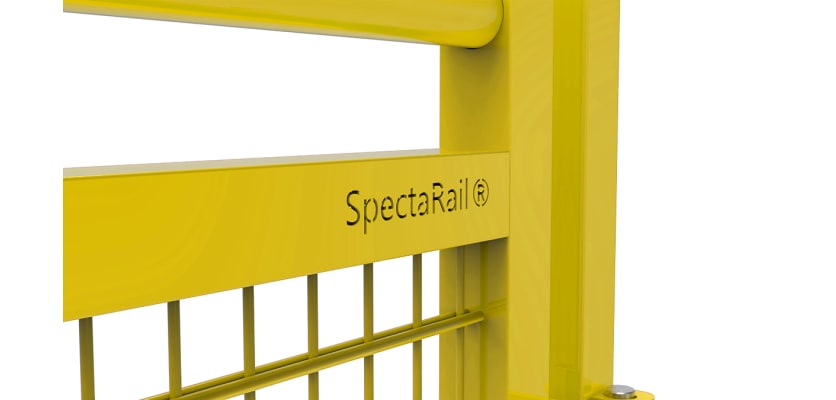

The 1.2m High x 1.5m Wide 868 Mesh Single Leaf Gate Kit is part of the SpectaRail® line, which includes fencing and gates. Manufactured from high quality pre-galvanised steel, the single leaf gate kit is resistant to damage and corrosion and ideal for permanent outdoor installation. Choose a polyester powder coating, available in a range of RAL colours, and give your gate additional resilience to the harsh effects of the elements while seamlessly matching your SpectaRail® fencing run.

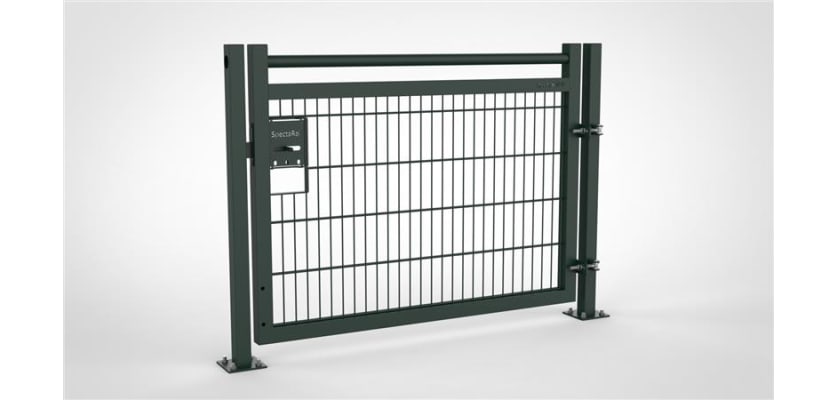

SpectaRail® is a dig-in or bolt-down fencing solution and is ideal for the type of ground sports pitches and grounds typically have. For the dig in version, you will need post mix to ensure a very strong installation; we recommend two bags per gate post.

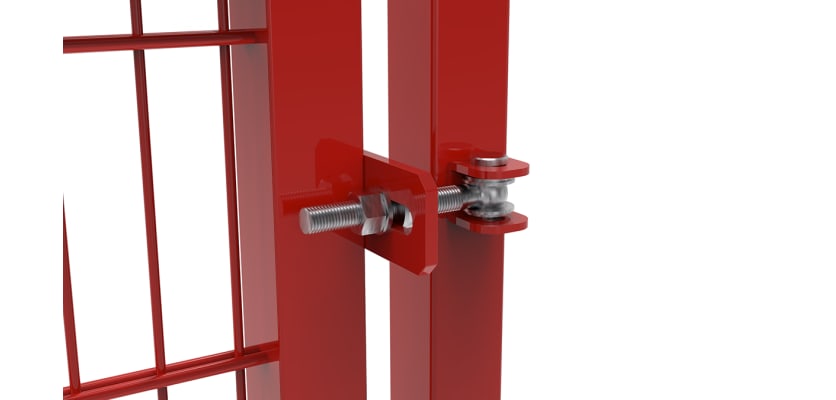

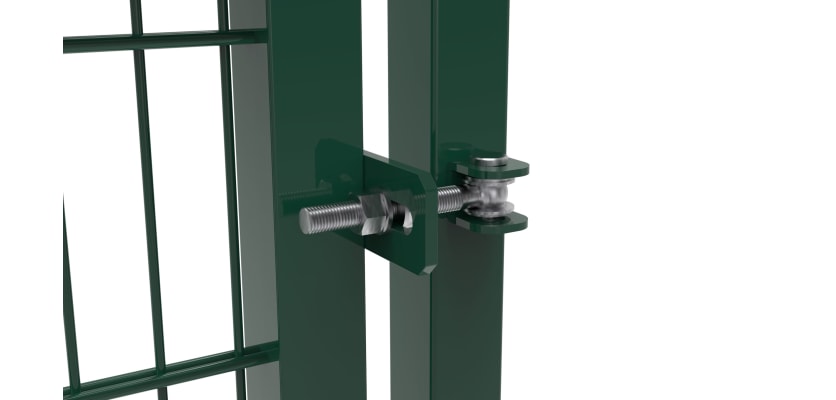

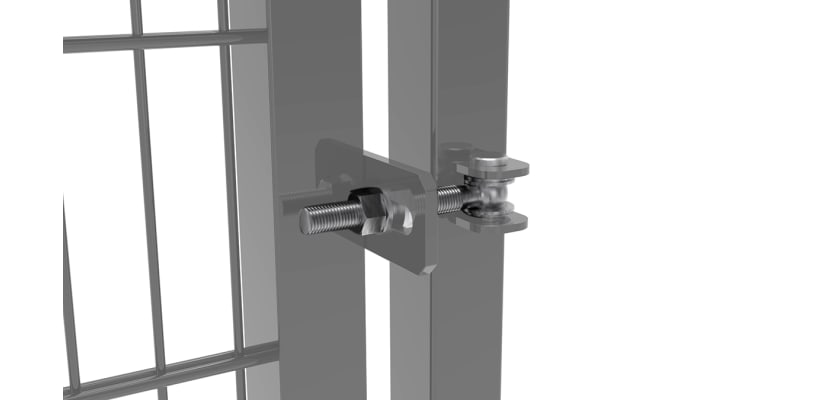

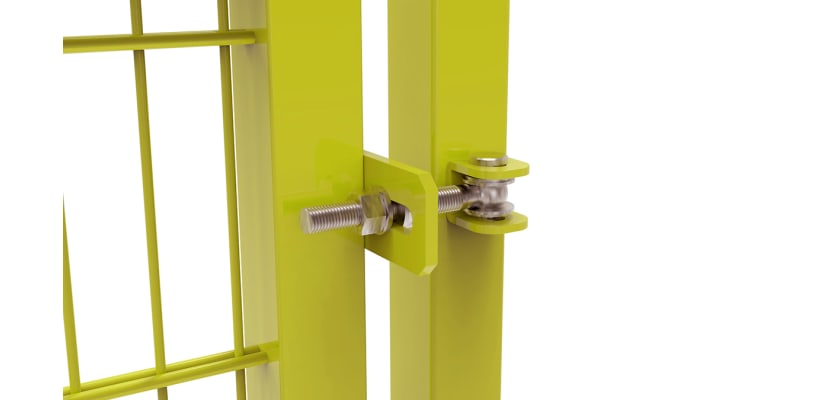

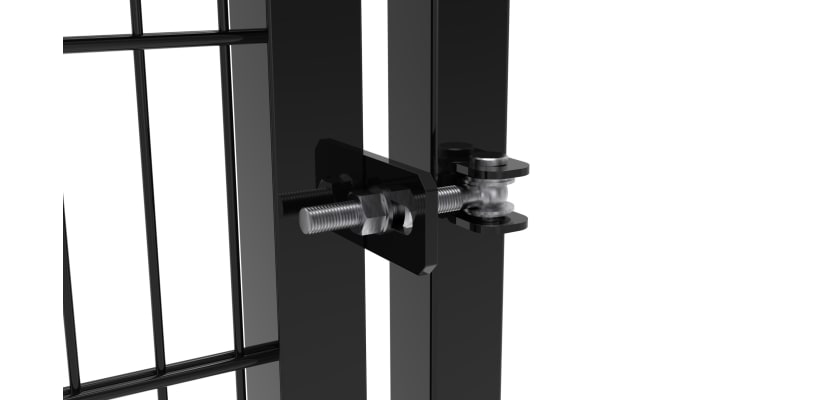

Each single leaf gate kit contains a gate leaf, hinge and catch post, folded clamp bars, a SpectaRail® fixing kit, and a Unislide single slider gate kit (padlockable). The SpectaRail® single leaf gate is to be installed with 600mm in the ground, which gives a ground clearance of 20mm which must be maintained to keep sports equipment inside effectively, and the 3-way weld-on hinge allows opening of 180°, meaning the gate can swing back against the fence without obstructing the walkway, keeping pedestrians and players safe.
The single leaf gate features clamp bar fixings, these stop finger entrapment and ensure there are no sharp edges.
The SpectaRail® Fixing Kit contains:
M8 x 40mm mesh security bolt x12
M4.8 x 20MM self tapping screws x2
60x60 black ribbed inserts x4
LOCINOX bolt and nut M14 x2
LOCINOX anti-sabotage eyebolt (110mm) and M16 nuts x2
SpectaRail® slide bolt security plate (single) x1
Within the First Fence SpectaRail® line is a double leaf gate and fencing kit.
Contact us
Please get in touch if you would like any additional information on this product line. The sales team is waiting to offer you expert guidance to ensure you get the right product for your project. The team can be reached by calling 01283 512111 or by using the live chat.
Specifications & Downloads
| Height | 1.2m [Installed, 1.8m actual length for dig in] |
| Access Width | 1.5m |
| Overall Width | 1.7m |
| Post Type | Dig In or Bolt Down |
| Post Box Section | 60 x 60mm |
| Weight | 43.39kg |
| Material | Pre-Galvanised Steel |
| Mesh Type | 868 Mesh |
| Ground Clearance | 20 to 70mm |
| Finish | Polyester Powder Coated |
| PPC Colours | Green or Black as standard [Other RAL colours available] |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
What's Included
| Name | Quantity |
|---|---|
| SpectaRail® Gate Leaf [1.2m x 1.5m Wide] | 1 |
| SpectaRail® Hinge Gate Post [Left Hand Hung, 1.2m High x 60 x 60mm box section] | 1 |
| SpectaRail® Catch Gate Post [Right Hand Hung, 1.2m High x 60 x 60mm box section] | 1 |
| SpectaRail® Folded Clamp Bar [1.0m] | 2 |
| SpectaRail® Fixing Kit | 1 |
| Unislide Single Slider Gate Kit [padlockable] | 1 |
