Stripe Mesh Fencing Calculator

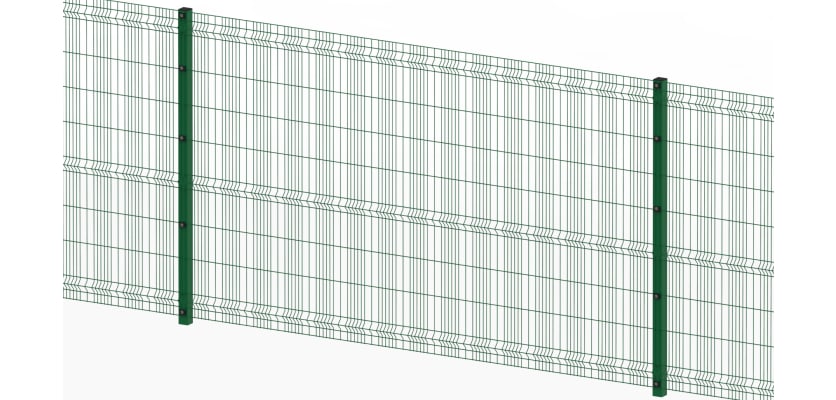

Note: A fencing bay contains a panel, post and fixing pack
Product Description
Stripe Mesh Fencing Calculator
Our interactive Stripe Mesh Fencing Calculator is engineered to take the guesswork completely out of your project, automatically configuring exactly how many panels, posts, and fixtures your project requires.
Whether you are securing a school, a commercial warehouse, or a sleek residential boundary, this tool builds your comprehensive custom kit in seconds. Follow our simple step-by-step breakdown below to configure your perfect perimeter.
Step 1: Input Your Meterage & Choose Your Height
Simply type your required total linear meterage into the calculator to get started. From there, select the ideal height to meet your security and aesthetic requirements. We offer three robust options in our stripe mesh collection, all featuring standard 3000mm wide panels:
1.8m High Stripe Mesh: Ideal for standard boundaries, schools, and commercial premises looking for a neat, non-intrusive security profile.
2.0m High Stripe Mesh: The sweet spot for elevated security, perfect for retail centres, public facilities, and busy commercial hubs.
2.4m High Stripe Mesh: Maximum perimeter protection designed to deter even the most determined intruders, best suited for industrial yards and high-risk zones.
What makes this mesh special?

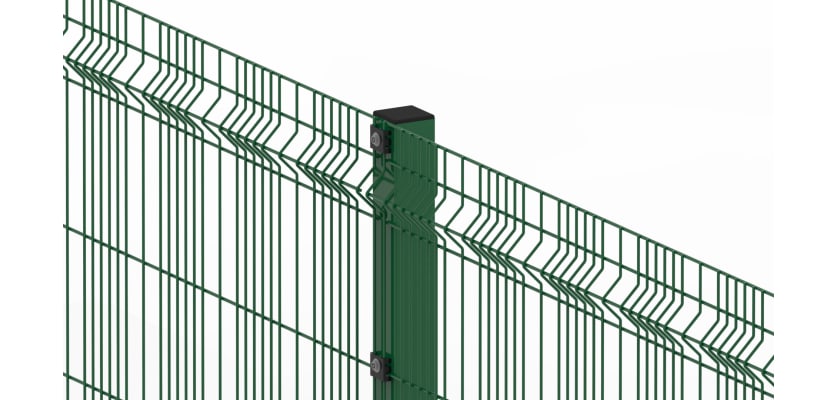

Stripe mesh fencing (also widely known as paladin or 3D mesh) features an innovative V-style stripe pattern of alternating wide and narrow wire openings. This unique configuration gives the fencing its name, adds enhanced structural strength, and makes the panels incredibly rigid, difficult to climb, and highly resistant to cutting.
Step 2: Select Your Post Fixing Method
Every site has unique ground conditions, which is why our calculator lets you customise your installation by choosing between two primary post types:
Dig-In Posts: The go-to choice for soft terrain, grass, or soil. These posts are manufactured with extra length, allowing you to set them securely below ground level with concrete for maximum structural integrity.
Bolt-Down Posts: The ideal solution for hard surfaces like existing concrete, tarmac, or structural slabs. These posts feature heavy-duty, pre-welded base plates, allowing you to anchor them directly to the surface using concrete anchor bolts.
Step 3: Account for Corners and Ends
A straight line of fencing is simple, but real-world boundaries have twists and turns. To ensure your fence is structurally sound and complete, use the selection menu to add any required Corner Posts or End Posts. The calculator will seamlessly integrate these specific post configurations into your final components list, ensuring you aren't left short on installation day.
Step 4: Add Essential Tools & Installation Accessories
Don't let the small details hold up your installation. Our calculator allows you to add vital installation accessories to your basket with a single click:
Torque Bit: Essential for installing specialised, tamper-resistant security fasteners that secure the mesh panels tightly to the posts.
Touch Up Spray Can: Perfect for quick, professional touch-ups on-site. Use it to seal any cut edges or minor installation scratches, preserving the integrity of the fence's protective coating.
Complete Your Perimeter with Our 868 Twin Wire Gates
No secure perimeter is complete without a reliable, heavy-duty point of access. Our 868 gates are the perfect addition to your stripe mesh fencing system. Renowned for their incredible strength and dual-wire configuration, these gates offer premium security while seamlessly blending with the clean aesthetics of your new fence line. Available in a comprehensive range of sizes—from narrow pedestrian gates for controlled foot traffic to wide, double-leaf vehicle security gates—they ensure your access points remain just as impenetrable as your perimeter.
Why Choose Stripe Mesh Fencing?
Stripe mesh fencing is a premier, versatile security solution celebrated for its brilliant blend of strength, visibility, and contemporary appeal.
Uncompromising Security: The distinct vertical wire pattern creates narrow strips that prevent intruders from gaining a foothold or easily getting a cutter through, making it a powerful deterrent against thieves and vandals.
Durability Built to Last: Crafted from pre-galvanised steel and finished with a high-quality, powder-coated RAL colour. This process creates an extra barrier against rust and harsh weathering, resulting in an exceptionally strong, long-lasting fence.
Versatile Applications: Highly adaptable for residential areas (providing a visually pleasing boundary), commercial centres (offering a professional appearance), and industrial sites (demarcating zones and protecting valuable equipment).
Contact Us
Should you have any questions about this range of mesh fencing or about any of our other products and accessories, please don’t hesitate to contact us. We can be reached either online via email at sales@firstfence.co.uk, through our online chat system or you can call our sales team on 01283 512 111.
Specifications & Downloads
| Heights | 1.8m, 2.0m and 2.4m |
| 1.8m High Total Post Length | 1800mm [Bolt Down], 2400mm [Dig In] |
| 2.0m High Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| 2.4m High Total Post Length | 2400mm [Bolt Down], 3000mm [Dig In] |
| Width | 3000mm |
| Thickness of Wires | 3.8mm [Vertical], 4.5mm [Horizontal] |
| Mesh Aperture | 200mm [H] x 22/45mm [W] |
| Number of 'V' Beams | 3 |
| Material | Pre-Galvanised Steel |
| Finish | Pre-Galvanised or Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
What's Included
| Name | Quantity |
|---|---|
| Mesh Panel to suit size requested | 1 |
| Mesh post to suit size requested | 1 |
| Bolts and Clips Pack | 1 |
| Ribbed Insert | 1 |
Specifications & Downloads
| Heights | 1.8m, 2.0m and 2.4m |
| 1.8m High Total Post Length | 1800mm [Bolt Down], 2400mm [Dig In] |
| 2.0m High Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| 2.4m High Total Post Length | 2400mm [Bolt Down], 3000mm [Dig In] |
| Width | 3000mm |
| Thickness of Wires | 3.8mm [Vertical], 4.5mm [Horizontal] |
| Mesh Aperture | 200mm [H] x 22/45mm [W] |
| Number of 'V' Beams | 3 |
| Material | Pre-Galvanised Steel |
| Finish | Pre-Galvanised or Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
What's Included
| Name | Quantity |
|---|---|
| Mesh Panel to suit size requested | 1 |
| Mesh post to suit size requested | 1 |
| Bolts and Clips Pack | 1 |
| Ribbed Insert | 1 |
