Standard Temporary Fencing Panel
BreezeGuardTMPanel, Stabilising and Wind Load Calculations
BreezeGuard suitability report costs £99.00 per design
Engineer issued TWD and advice for your specific site for only £749.99 per design
| Panel Dimensions | 2025mm [H], 3450mm [W] |
| Foot Dimensions | 122mm [H], 770mm [L], 195mm [D] |
| Coupler Dimensions | 30mm [H], 136mm [W] |
| Panel Frame Diameter | 38.1mm [Vertical] , 25.4mm [Horizontal] |
| Panel Mesh Diameter | 3.2mm [Horizontal], 2.2mm [Vertical] |
| Dimensions of Openings Between Wires | 100mm [Horizontal] 262mm [Vertical] |
| Weight | 10.5kg [Panel], 14kg [Foot], 28kg [Concrete Foot], 0.2kg [Coupler] |
| Materials | Pre-Galvanised [Panel & Coupler], Plastic or Concrete[Foot] |

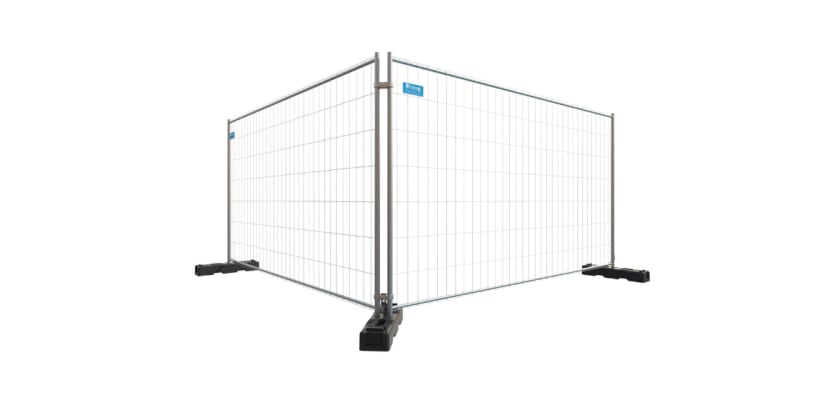

Standard Temporary Fencing Panel
Standard Temporary Fencing Panels are designed to provide site security on a temporary basis. They are easy to assemble and can be reused, making them a great investment. Standard Temporary Fencing is an extremely versatile piece of equipment, ideal for construction sites and outdoor events.
Manufactured from pre-galvanised steel, these panels come at the height of 2025mm and length of 3450mm. The mesh infill of the panel, helps to make it wind resistant as air can flow through it freely, ensuring that it will not collapse with help of the stabilisers.
Temporary Fencing is connected with Couplers or Anti-Tamper Couplers, if you require more security, and with Standard or High Visibility Temporary Fencing Feet.
Key Features
- Made from high quality steel
- Joints welded using SmartWeld 100 technology
- Reusable
- Easy to transport
- Assembled with Couplers and Temporary Fencing Feet
- Customisation options:
Temporary Fencing Assembly Guides
Assembly guides are available at the top of the page to help you install stabilisers to your fencing.
Contact us:
Please get in touch with any questions you have regarding our temporary fencing panels, or any of our other fencing ranges and accessories. We can be reached via phone on 01283 512 111, by email at sales@firstfence.co.uk or it is also possible to speak with one of our helpful and friendly sales staff via our online chat system.
Please Note:
We may upgrade the thermoplastic feet to our concrete feet depending on our stock availability. This upgrade is free of charge.
We advise against using tarpaulin with our square top temporary fencing panels, due to high winds being unable to pass through the tarpaulin and potentially damaging the panel. As an alternative, we recommend using debris netting, with square top panels; or you could upgrade to Round Top Panels, or Round Top Panels with a Centre Bar, if Tarpaulin is required.
