2.4m x 2.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2370mm |
| Box Sections of Posts | [Hinge Post: 120mm x 120mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

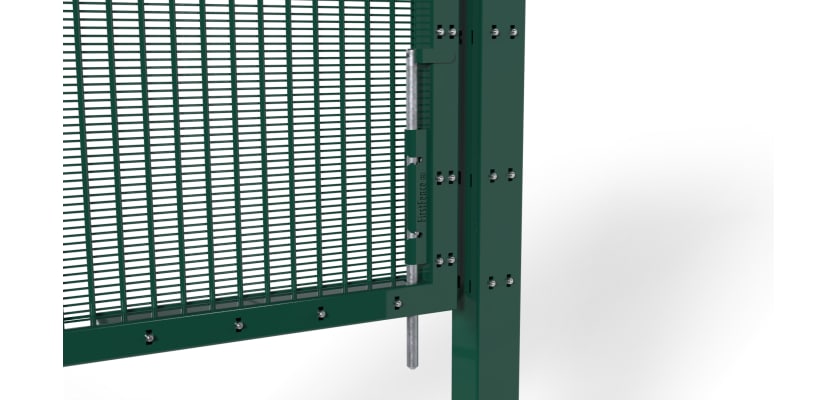

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.4m x 2.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This 2.4m high ProFence® 2X single gate provides a 2.0m wide opening, making it a highly capable and versatile solution for sites that require both imposing height and easy access for small vehicles, all certified to the LPS 1175 B3 standard.
The proven three-minute delay against forced entry provided by this gate's certification is essential for operators of data centres and secure storage facilities. The 2.0m width is ideal for moving palletised goods or specialist machinery, allowing for efficient operations without compromising the hardened physical security required to protect high-value assets and information from theft.
It's also an excellent specification for securing the perimeter of police or MoD training facilities. The gate is wide enough for utility vehicles and ATVs, while the 2.4m anti-climb height and B3 rating ensure the site remains secure and contained during training exercises. For a complete perimeter solution, this gate is designed to work seamlessly with the 2.4m high ProFence® 2X fence system.
As a Red Book listed product, its performance and quality are guaranteed, offering total security for access points that require more than just personnel entry.
Features & Benefits

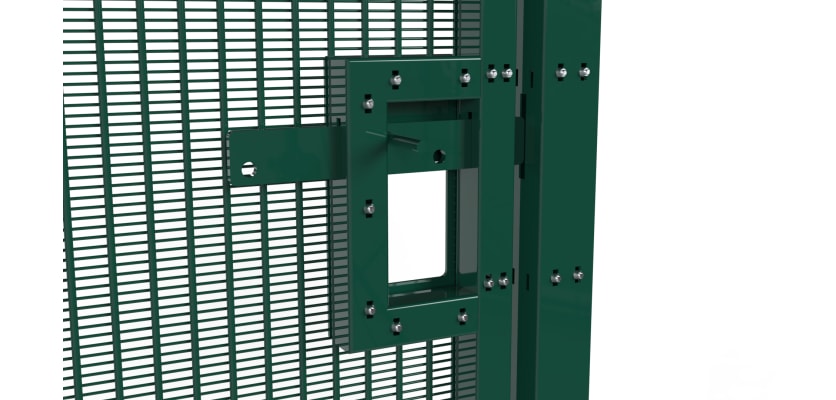

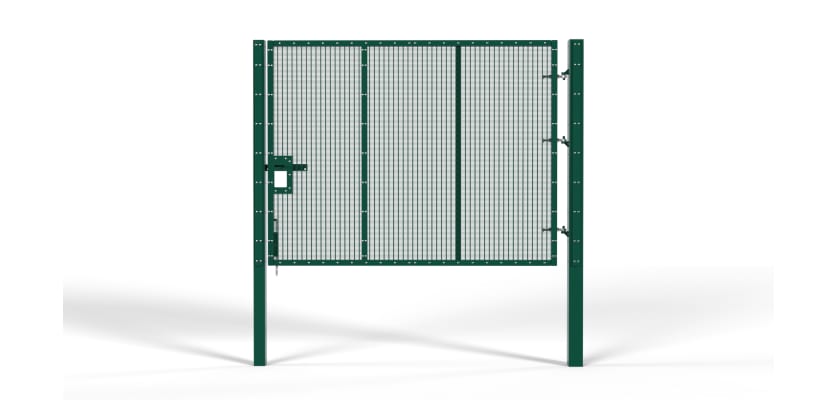

The complete 2.4m x 2.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit comprises one 2.0m wide gate leaf, a heavy-duty hinge post, a reinforced catch post, and three SR2-rated gate eyes. The gate leaf is held firmly in the closed position by a robust sliding latch bolt that offers a secure point for a high-security padlock.

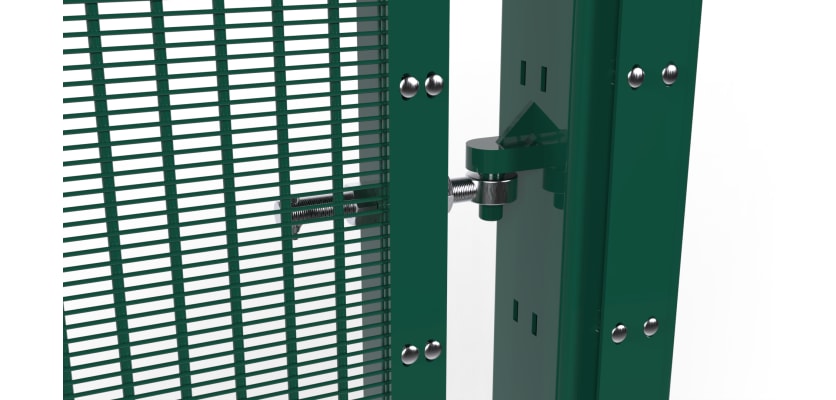

Fabricated from high-grade structural steel, the gate is protected by a hot-dip galvanised treatment and a tough polyester powder-coated layer for maximum service life. The gate's anti-climb properties are significantly enhanced by its 2.4m height and the dense MeshPro® 10 infill, which also resists determined attacks with cutting tools. The hinge system is permanently secured with high-security shear nuts.
Installation Made Easy
Available in both bolt-down and dig-in formats to suit your specific ground conditions. The bolt-down option is supplied with the necessary ground anchor bolts. To properly support these taller posts, the dig-in version requires a solid foundation using C20 or C25 concrete and three to four bags of Post Mix per post.
Get in Touch
For a quote or for more technical information, please call our sales team on 01283 512 111 or email sales@firstfence.co.uk for more information. You can also connect via our live chat service for quick questions and answers.
