Height | 3000mm [Installed] |
Access Width | 3000mm |
Total Width | 3510mm |
Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
This 3.0m high ProFence® 2X SR2 (B3) certified gate is engineered for maximum security applications. The imposing height combined with its proven resistance to a sustained, three-minute attack (Toolkit B) makes it a premier choice for securing sensitive sites.
The LPS 1175 B3 rating provides the verified delay crucial for protecting critical national infrastructure. A 3.0m high by 3.0m wide gate is an ideal specification for service entrances at telecommunication exchanges or utility control centres, where the combination of anti-climb height and certified attack resistance is required to prevent unauthorised access and potential disruption to essential services.
It is also a perfect fit for securing the perimeters of Border Force or Home Office facilities. The intimidating height deters unauthorised entry, the 3.0m width accommodates service vehicles, and the B3 rating meets the stringent security demands of government operations. To ensure the entire boundary is impenetrable, this gate works as part of a system with the 3.0m high ProFence® 2X fence kit.
This Red Book listed system provides the highest confidence in your perimeter's security.

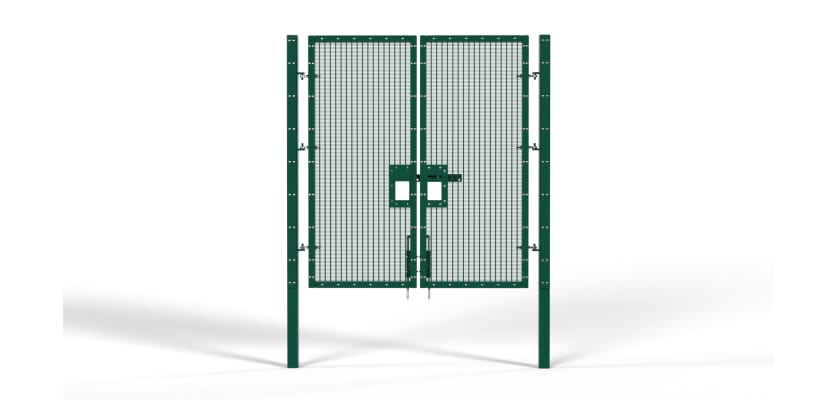

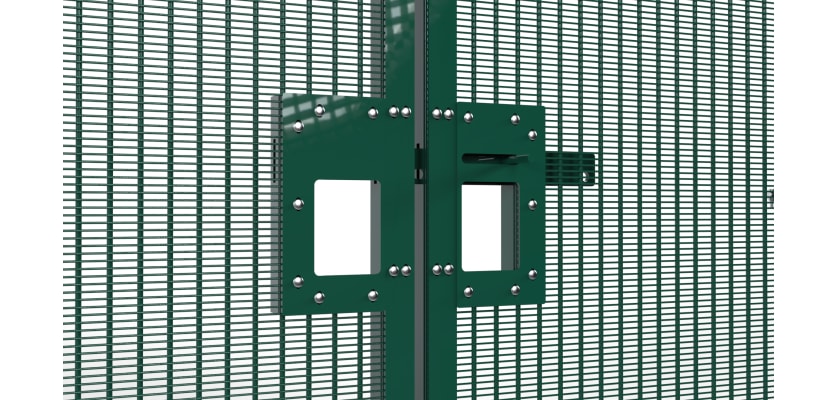

The 3.0m x 3.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 1.5m gate leaves, two hinge posts, and all essential SR2-rated hardware. The gate is secured by a powerful central sliding latch and dual ground-locking drop bolts, which create an exceptionally strong and stable closure.

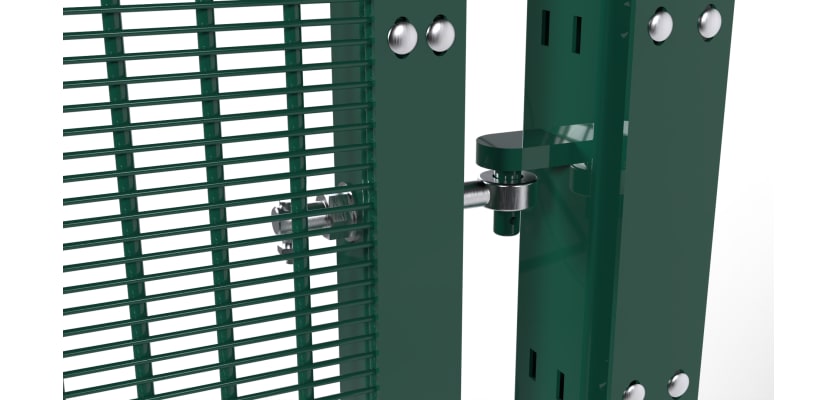

The gate's outstanding durability comes from its galvanised steel construction, which is enhanced with a protective polyester powder-coated finish. The dense MeshPro® 10 infill offers excellent visibility for monitoring while being almost impossible to climb or cut. All six hinges are fastened with tamper-proof shear nuts.
A choice of dig-in or bolt-down posts allows for secure installation. All necessary ground anchor bolts are included with the bolt-down option. For dig-in applications at this 3.0m height, we recommend a deep foundation of C20 or C25 concrete, using four bags of our suggested Post Mix per post.
