2.4m x 4.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description
2.4m x 4.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit

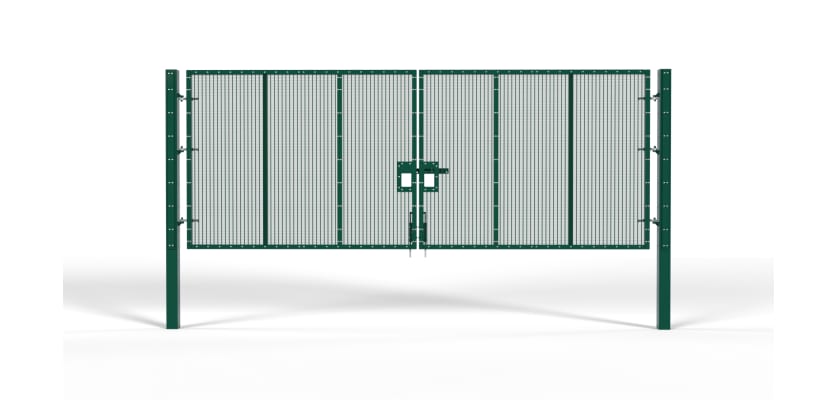

This 2.4m high ProFence® 2X double gate combines enhanced height with a generous 4m width, all certified to the stringent LPS 1175 SR2 (B3) standard.
The core benefit of the LPS 1175 B3 standard is the proven delay it provides against determined, tool-equipped attackers. This is of paramount importance for sites of national critical importance, such as gas compressor stations or electricity substations. A 4.0m wide gate provides the necessary clearance for service vehicles and machinery, while its certified construction ensures it is a hardened target against potential saboteurs.
Beyond CNI, this gate is an ideal choice for securing the compounds of high-value agricultural operations, protecting expensive GPS-guided machinery and livestock from organised crime. The 2.4m height deters climbing, and the B3 rating resists forced entry. To protect the entire farmstead, this gate integrates perfectly with the 2.4m high ProFence® 2X fencing.
As a Red Book listed product, its performance and quality are guaranteed, offering total security for vehicular access points.
Features & Benefits

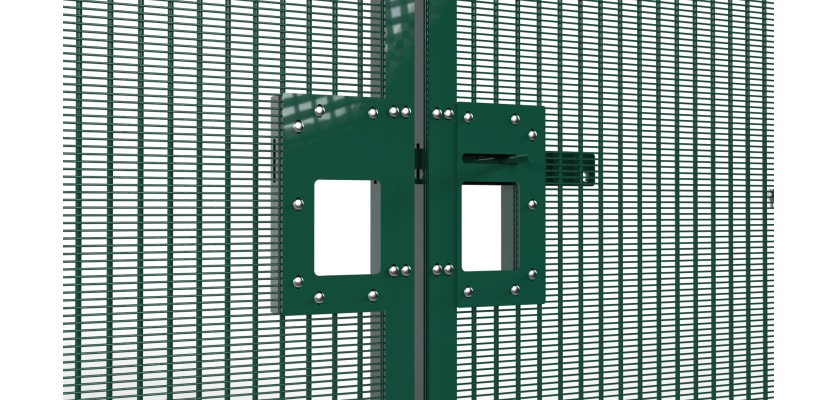

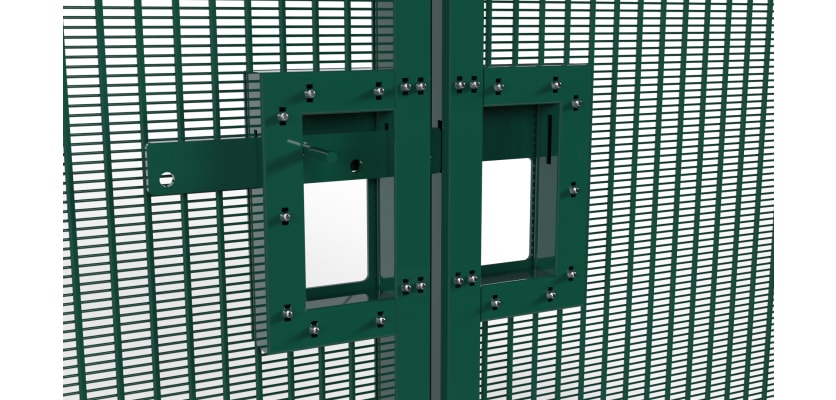

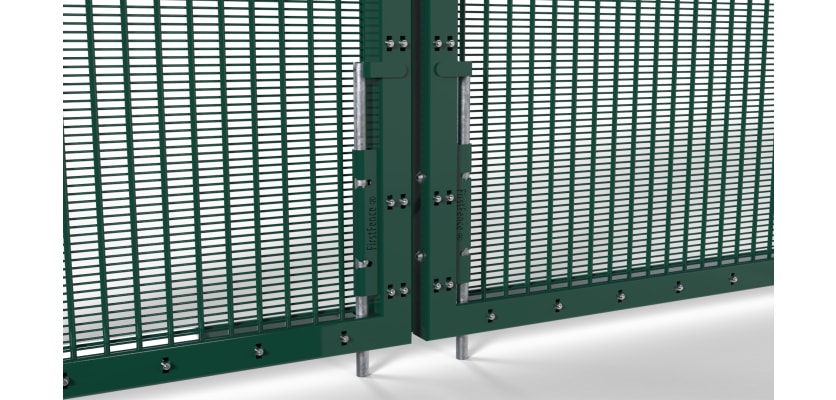

The complete 2.4m x 4.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit comprises two 2.0m wide gate leaves, two corresponding hinge posts, and six heavy-duty, SR2-rated gate eyes. Its multi-point locking system features a central sliding latch and two substantial drop bolts that secure the base of each gate leaf into the ground.

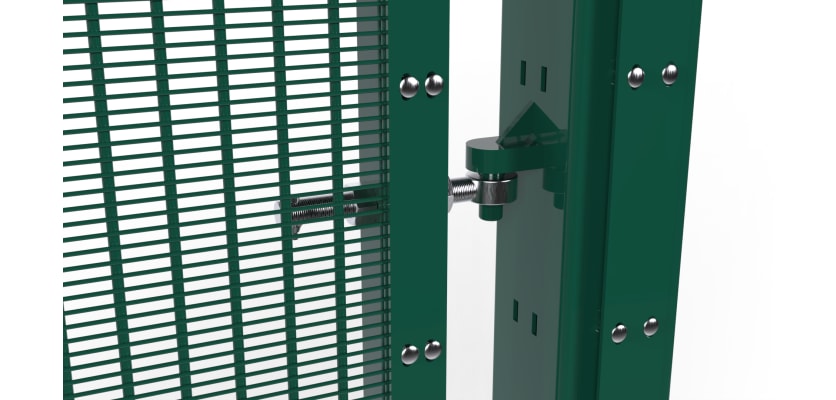

Fabricated from steel, the gate is protected by a hot-dip galvanised treatment and a tough polyester powder-coated layer. The gate's anti-climb properties are enhanced by its height and the dense MeshPro® 10 infill, which also resists cutting. The hinge system is secured with high-security shear nuts.
Get in Touch
Should you have any questions about this range of LPS 1175 rated fencing, or for more information on stock and availability, please don’t hesitate to contact us. We can be reached via phone on 01283 512 111, via email at sales@firstfence.co.uk or we can be reached via our online chat system where one of our helpful and friendly staff will be more than happy to assist you.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
