3.0m High x 6.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description

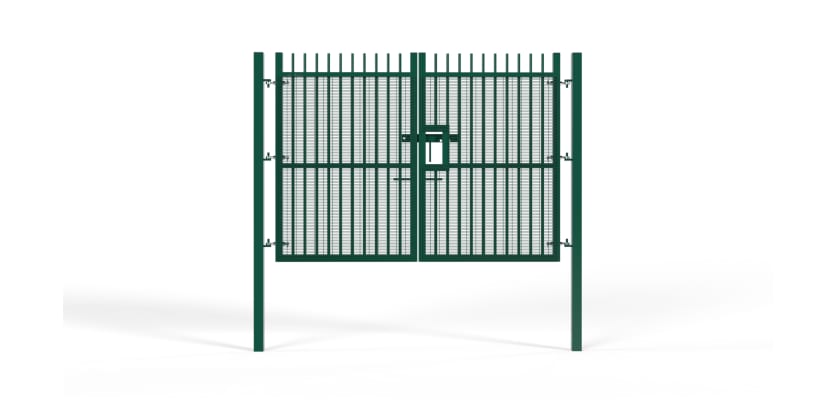

3.0m High x 6.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit

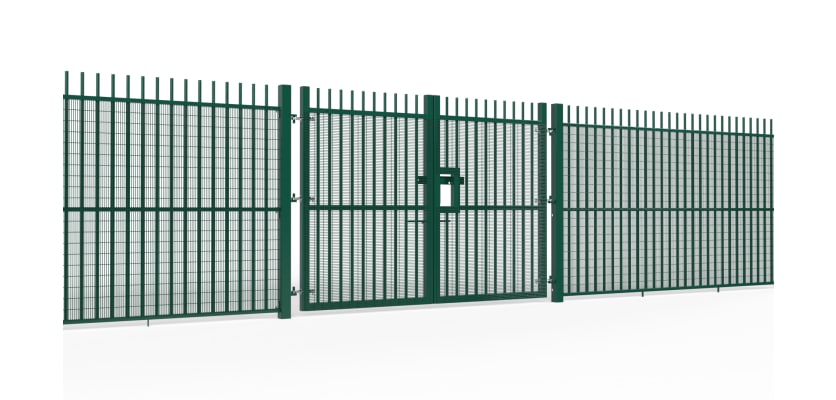

For the widest, most demanding access points, the EnviroProtect® 3.0m x 6.0m Double Leaf Gate Kit offers unmatched security. Its 6.0m span provides ample clearance for articulated lorries and heavy vehicles, while the 3.0m height and welded 358 ‘prison mesh’ deliver an uncompromising anti-climb barrier. Supported by reinforced 100x100mm hinge posts and certified to LPS 1175 A1 (SR1), this flagship model is engineered for high-frequency use in the most sensitive environments. Our EnviroProtect anti-climb gates are designed to integrate seamlessly with EnviroProtect anti-climb fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Certified Anti-Climb Security
Independently tested to LPS 1175 A1 (SR1), this system provides verified resistance against forced entry with common tools, ensuring a minimum 60-second delay. The dense 358 mesh infill eliminates footholds and resists cutting, creating a barrier that is both certified and practically unclimbable—ideal for maximum-security facilities.
Built for Extreme Durability

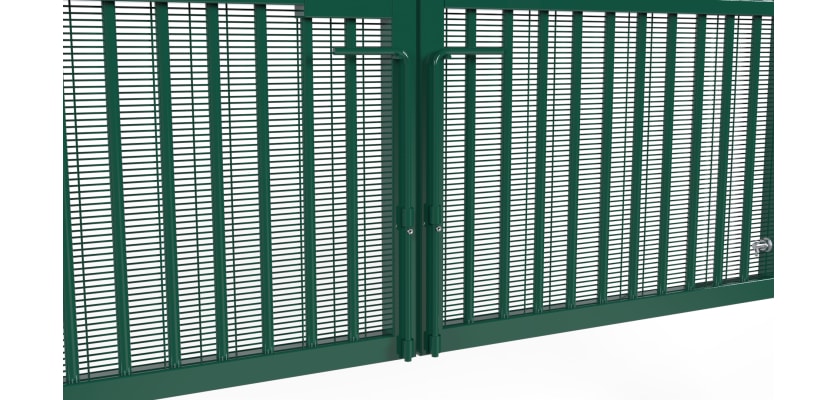

The gate’s structure is formed from two 60x60mm box-section leaves, each reinforced with welded 358 mesh for rigidity. Massive 100x100x3mm hinge posts are designed to carry the significant leverage of a 6.0m span at full height, ensuring long-term operational stability with no risk of sagging. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Overview
- Height: 3.0m (3000mm) certified
- Clear opening width: 6.0m (6000mm)
- Overall width: 6430mm
- Leaf frame: 60x60mm with welded 358 mesh
- Posts: 100x100x3mm heavy-duty hinge posts
Installation Options
Supplied with both post types for installation flexibility:
- Bolt-down (3000mm) secure to existing concrete bases
- Dig-in (3700mm) set into new deep concrete foundations for maximum stability
Applications
With its imposing width and certified security, this gate is the ideal solution for:
- Haulage depots
- Airports and ports
- MOD and defence facilities
- Large manufacturing plants
- Critical National Infrastructure sites
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 6000mm |
| Total Width | 6430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 140mm Bolts | 6 |
| Drop Bolt | 2 |
| 120x120mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 6 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 6000mm |
| Total Width | 6430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 140mm Bolts | 6 |
| Drop Bolt | 2 |
| 120x120mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 6 |
