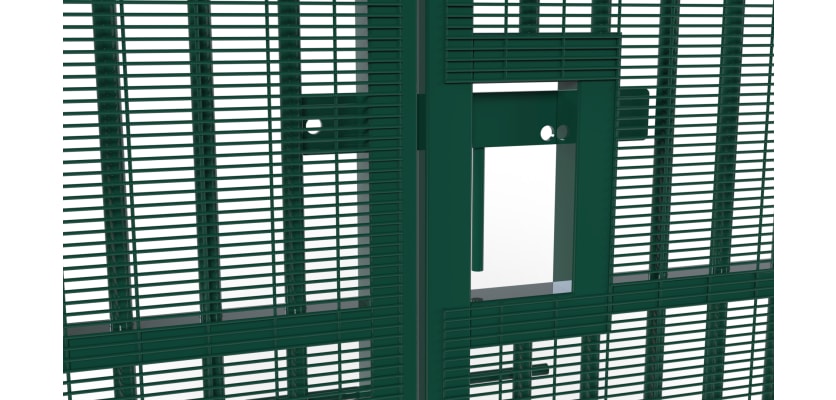

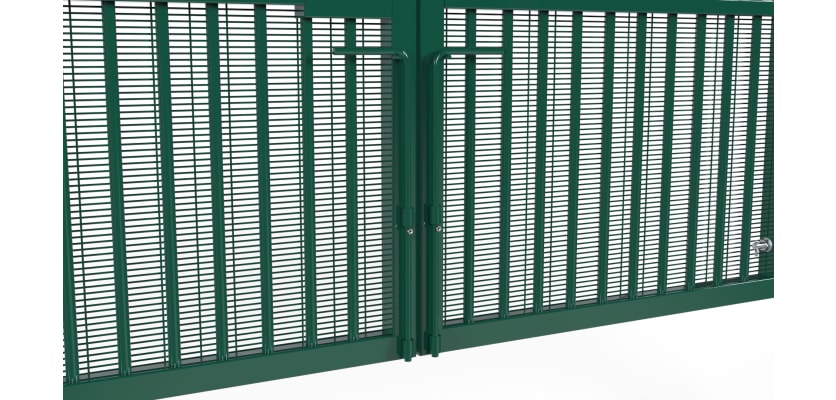

3.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
3.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Control high-risk vehicle access points with the imposing strength of the EnviroProtect® 3.0m x 3.0m Double Leaf Gate Kit. Designed for maximum-security perimeters, this gate combines certified protection with a broad 3.0m span, ideal for larger vehicles. Featuring 358 welded ‘prison mesh’ and LPS 1175 A1 (SR1) approval, it delivers assured performance where no compromise on security is possible.
Our EnviroProtect anti-climb gates are designed to integrate seamlessly with EnviroProtect anti-climb fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Maximum Protection: Certified & Anti-Climb
This gate provides two layers of security in one system. Independently tested to LPS 1175 A1 (SR1), it offers proven resistance against forced entry using basic tools, while the 3.0m high 358 mesh infill eliminates climbing attempts and resists cutting. Together, they form a barrier built to withstand both physical attack and scaling.
Built for Strength & Longevity
Each gate leaf is manufactured from heavy-duty 60x60mm box-section framing, securely housing the anti-climb mesh. The structure is supported by robust 80x80x3mm hinge posts designed to carry the weight of the tall gate leaves. All steelwork is pre-galvanised to ensure long-term resistance to rust and corrosion, reducing maintenance demands over the gate’s lifespan.
Technical Overview
- Height: 3.0m (3000mm) certified
- Clear opening width: 3.0m (3000mm)
- Overall width: 3430mm
- Leaf construction: 60x60mm frame with 358 welded mesh infill
- Posts: 80x80x3mm hinge posts for reliable support
Flexible Installation Options
Choose the post type to suit your installation needs:
- Bolt-down (3000mm) for fixing onto existing concrete bases
- Dig-in (3700mm) for creating a permanent foundation in new concrete
Ideal Applications
With its combination of width and height, this gate is best suited for vehicle entrances at high-security facilities, including:
- Critical National Infrastructure sites
- Research laboratories
- Secure government compounds
- Data centres and utility hubs
It integrates seamlessly with the EnviroProtect® 3.0m Anti-Climb fencing system for complete perimeter protection.
Get in Touch
Ready to secure your perimeter with the ultimate solution? For technical data sheets and quotations on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111 or email sales@firstfence.co.uk.
