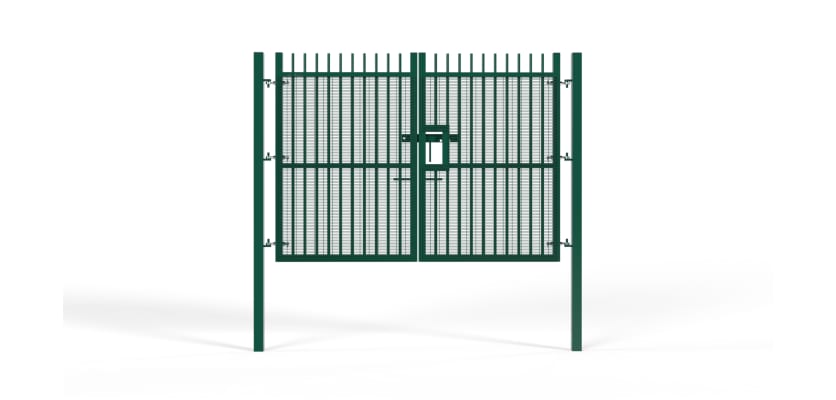

2.0m High x 4.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
| Height | 2000mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4430mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
2.0m High x 4.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit

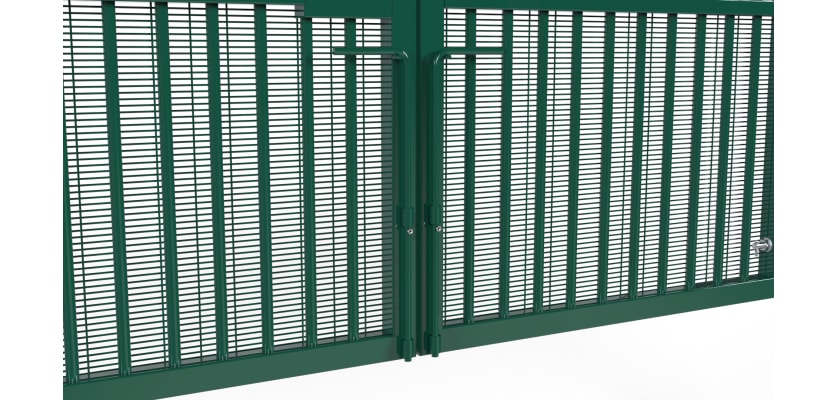

When wider vehicle entrances need secure control, the 2.0m high, 4.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit delivers proven, certified protection. Its generous span accommodates larger vans and small lorries with ease, while the welded 358 ‘prison mesh’ provides an effective anti-climb and anti-cut barrier. Backed by LPS 1175 A1(SR1) certification and built with reinforced hinge posts, this gate is a reliable solution for safeguarding busy commercial and industrial access points.
Dual-Layered Defence: Certified and Impenetrable
Security is assured through a dual system of certified construction and anti-climb mesh. The A1(SR1) accreditation verifies the gate’s resistance to forced entry for at least 60 seconds, long enough to deter intruders and trigger an on-site response. Combined with 358 mesh, which offers no footholds and resists cutting with standard tools, this gate creates a formidable barrier.
Engineered for Long-Term Strength
Each gate leaf is built from robust 60x60mm box section frames, reinforced by the welded mesh for outstanding rigidity. The uprated 100x100x3mm hinge posts are specifically designed to support the added leverage of the 4.0m opening, ensuring reliable performance without sagging. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.0m (2000mm)
- Clear access width: 4.0m (4000mm)
- Total installed width: 4430mm
- Gate leaves: Two 60x60mm frames with 358 mesh infill
- Posts: Heavy-duty 100x100x3mm hinge posts
- Finish: Pre-galvanised steel with polyester powder coating finish
Flexible Installation Options
Supplied with both bolt-down posts (2000mm) for existing surfaces and dig-in posts (2700mm) for concrete foundations, this kit allows for secure installation across a range of ground conditions. Dig-in foundations provide the strongest resistance to physical force, essential for gates of this width.
Applications & Integration

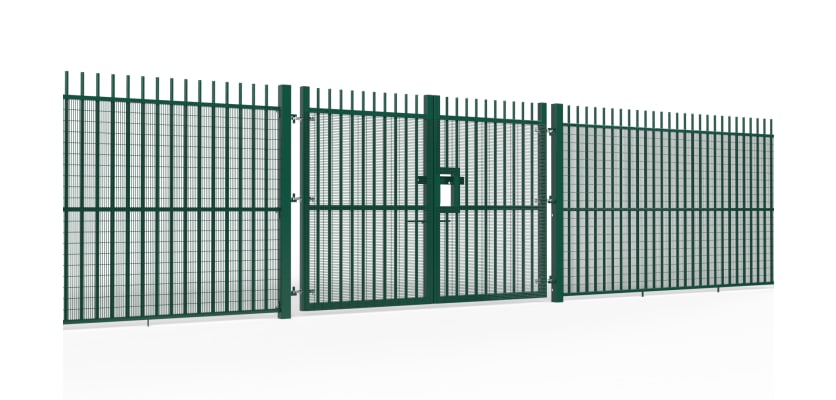

Ideal for service yards, logistics depots, and entrances to industrial parks, this gate balances ease of vehicle access with a strong physical deterrent. At 2.0m high, it provides added protection for sites such as utilities, warehouses, and secure compounds. It integrates seamlessly with the EnviroProtect® Anti-Climb railing system for a consistent security line.
