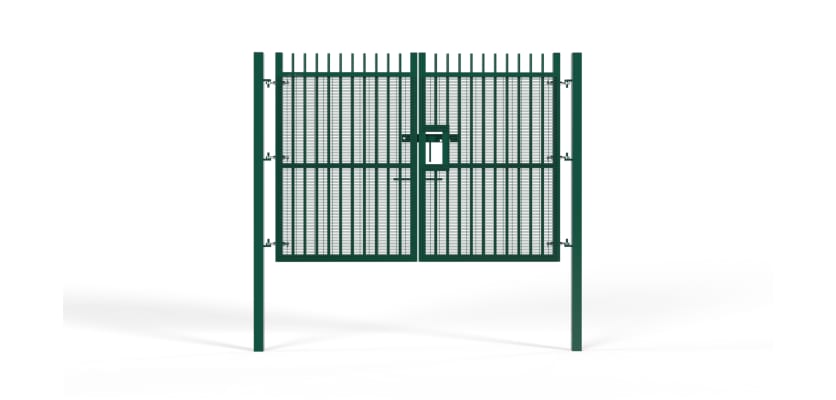

2.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
2.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit

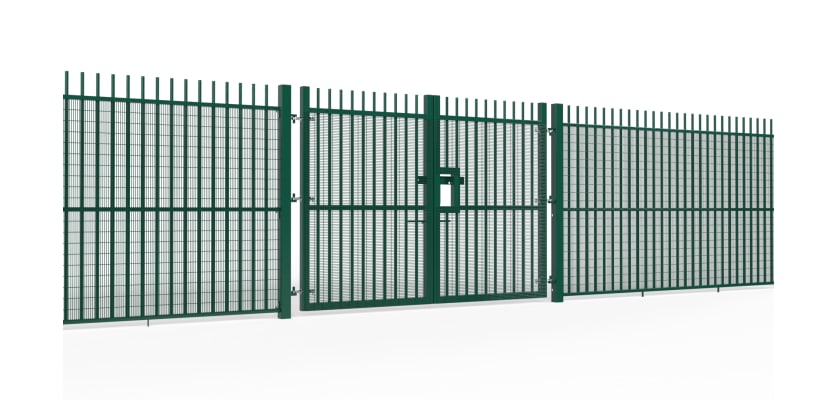

The 2.0m high, 3.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit delivers a secure and practical solution for managing primary vehicle access points. Combining enhanced height with a wide span, it is ideally suited for light commercial traffic and service entrances at sensitive locations. Its twin-leaf design ensures smooth operation, while the fully welded 358 ‘prison mesh’ infill and official LPS 1175 A1(SR1) certification provide a high level of tested resistance against intrusion. Our EnviroProtect anti-climb gates are designed to integrate seamlessly with EnviroProtect anti-climb fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Dual-Layered Protection: Certified & Anti-Climb
This system’s effectiveness lies in its two layers of defence. Independently tested and certified to LPS 1175 A1(SR1), it is proven to resist a sustained 60-second attack using common hand tools. Reinforcing this certified strength is the 358 mesh infill: its tight aperture prevents climbing attempts, and its 4mm wire is resistant to cutting, ensuring the gate stands up to both opportunistic and determined threats.
Built for Long-Term Strength
Each gate leaf is formed from a robust 60x60mm box section frame, designed to hold the welded mesh securely in place. The structure is both rigid and resilient, with all components pre-galvanised to guard against corrosion. This ensures not only security but also long-lasting performance with minimal upkeep, even in demanding environments.
Technical Specification
- Certified height: 2.0m (2000mm)
- Clear access width: 3.0m (3000mm)
- Total installed width: 3430mm
- Gate leaves: 60x60mm frames with 358 mesh infill
- Posts: 80x80x3mm hinge posts
- Finish: Pre-galvanised steel for durability
Flexible Installation Options
To suit a variety of sites, the kit includes both installation types. Bolt-Down posts (2000mm) are provided for existing hard surfaces, while Dig-In posts (2700mm) allow for a deeper, concrete-based foundation for maximum stability and security.
Applications and Integration
This 2.0m high, 3.0m wide double gate is ideal for main entrances at industrial sites, data centres, and commercial yards where reinforced access control is vital. The taller frame enhances deterrence, while the dual-leaf format offers efficient entry for vehicles without compromising security.
Get in Touch
Ready to secure your perimeter with a superior solution? For technical data sheets, quotations, and expert advice on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 1020mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
