1.8m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
| Height | 1800mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |

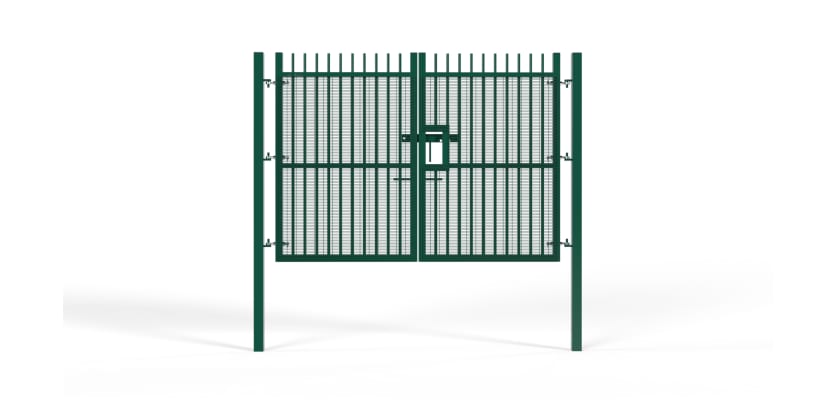

1.8m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Protect wider access points with this 1.8m high, 3.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit. Designed for sites requiring frequent vehicle entry while maintaining a strong perimeter line, it combines proven certification with advanced anti-climb features. The welded 358 ‘prison mesh’ infill creates a barrier that is exceptionally resistant to scaling and cutting, while the gate’s SR1 (A1) accreditation ensures reliable, tested defence against forced entry attempts.
Dual-Layered Protection: Certified and Anti-Climb
This gate provides a two-fold security guarantee. The SR1 (A1) certified frame has been independently tested to resist opportunistic tool-based attacks for a vital one-minute delay, discouraging intruders and buying time for site response. At the same time, the dense 358 mesh makes climbing impossible and cutting extremely difficult, ensuring the gate performs as a complete, multi-threat deterrent.
Built for Strength and Longevity
Each gate leaf is constructed from a sturdy 60x60mm box section frame with the 358 mesh securely welded in place, forming a rigid, tamper-resistant unit. A pre-galvanised finish is applied across all components, providing long-term corrosion resistance and helping the system retain its professional appearance even under frequent use and harsh conditions.
Technical Specification
- Height: 1.8m (1800mm)
- Clear Access Width: 3.0m (3000mm)
- Overall Width (incl. posts): 3430mm
- Leaf Frame: 60x60mm box section with welded 358 mesh
- Posts: Heavy-duty 80x80x3mm hinge and catch posts
- Finish: Pre-galvanised steel
Flexible Installation Options
The kit is supplied with both Bolt-down posts (1800mm) for concrete surfaces and Dig-in posts (2500mm) for foundations. Correct installation ensures the gate performs to its certified standard and maintains structural integrity under pressure.
Applications and Integration
With its combination of width, certification, and anti-climb resilience, this double gate is suited to main entrances at industrial estates, commercial yards, and logistics hubs. The twin-leaf design saves swing space, making it ideal for tighter layouts, and offers flexibility with single- or dual-leaf opening. It integrates seamlessly with the EnviroProtect® Anti-Climb fencing system for a continuous high-security perimeter.
