1.8m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description

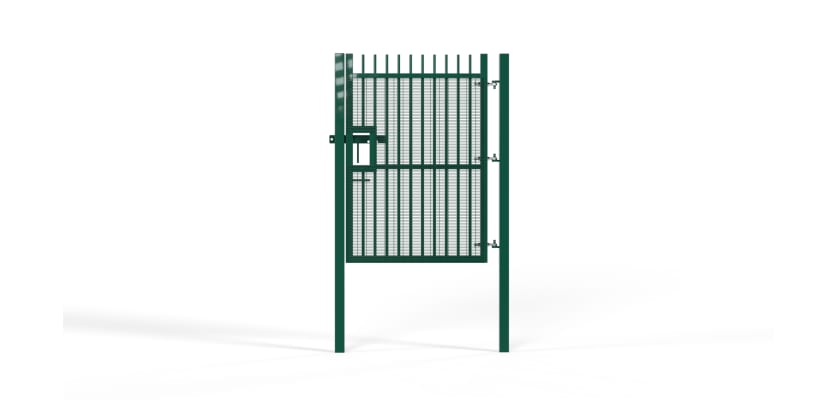

1.8m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
The 1.8m High EnviroProtect® Anti-Climb Single Leaf Gate Kit delivers a certified, high-security pedestrian entry point for sensitive sites. Featuring a tightly welded 358 ‘prison mesh’ infill, the gate prevents climbing by removing potential hand and footholds. Combined with its heavy-duty steel frame and LPS 1175 A1(SR1) approval, this gate provides reliable protection for restricted staff access areas and controlled entrances.
Dual-Layer Protection: Anti-Climb & Certified Strength
Security is built into every part of this gate. The structure has been independently tested and certified to LPS 1175 A1(SR1), ensuring resistance against a one-minute attack using basic tools. This protection is enhanced by the integrated 358 mesh, whose narrow apertures block climbing attempts and make cutting with manual tools extremely difficult. Together, these features provide an uncompromising defence against intrusion.
Built for Long-Term Performance
The gate is manufactured from a robust 60x60mm box section frame with a fully welded mesh infill, creating a single rigid unit. Supported by a strong 80x80x3mm hinge and catch posts, the structure offers long-lasting stability. A pre-galvanised finish is applied to all steelwork, protecting against corrosion and minimising maintenance over its service life.
Technical Details
- Gate Height: 1.8m (1800mm)
- Clear Width: 1.0m (1000mm)
- Overall Width (with posts): 1290mm
- Frame: 60x60mm box section with welded 358 mesh infill
- Posts: 80x80x3mm hinge and catch posts
- Finish: Durable pre-galvanised steel
Flexible Installation Options
This kit is supplied with two post types to suit different ground conditions:
- Bolt-down posts (1800mm) for fixing onto existing hardstanding.
- Dig-in posts (2500mm) for setting into concrete foundations on soft ground.
Applications and System Compatibility

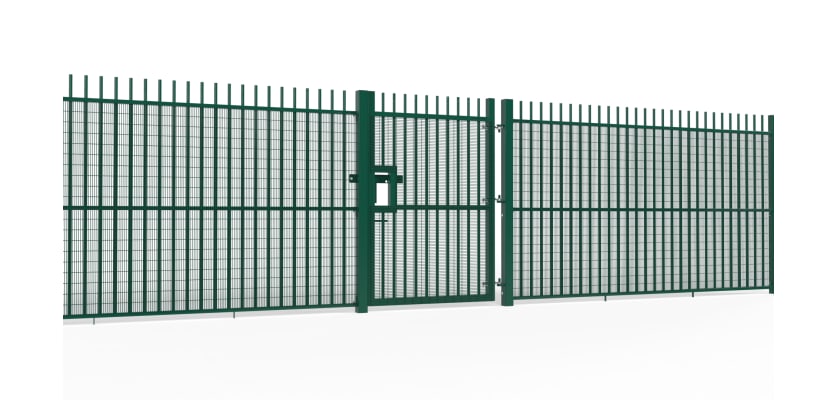

Ideal for pedestrian entrances at schools, utility facilities, data centres, and other high-security locations, this gate integrates seamlessly with the full EnviroProtect® Anti-Climb railing system to deliver a continuous, certified perimeter line.
Get in Touch
For expert advice on planning your EnviroProtect® Anti-Climb project, for a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. You can reach us by phone on 01283 512 111, by email at sales@firstfence.co.uk, or use the Live Chat feature available on our website during business hours.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |

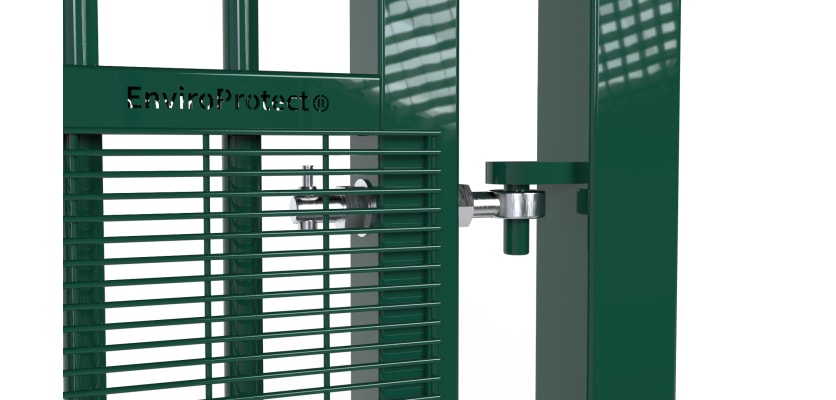

| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
