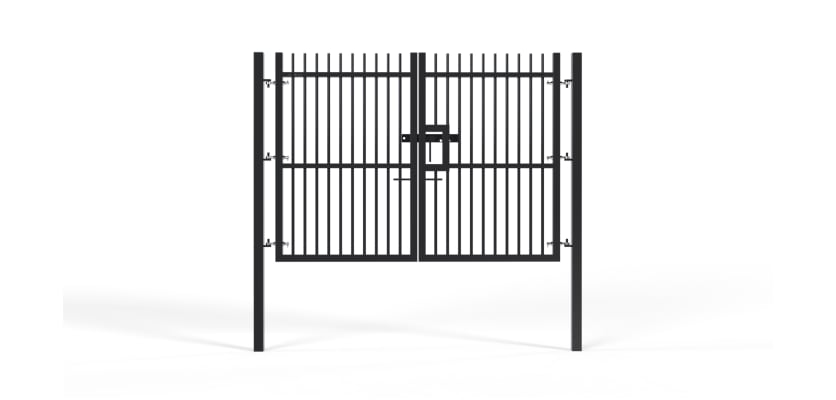

2.4m High x 4.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description
2.4m High x 4.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
The 2.4m high x 4.0m wide EnviroProtect® Double Leaf Gate Kit is built for sites requiring a strong visual deterrent and secure vehicle access. Its taller 2.4m height provides formidable anti-climb protection, while the 4.0m span accommodates larger vans and small lorries with ease. Supported by uprated 100x100mm hinge posts for stability across the wide opening, and certified to LPS 1175 A1 (SR1), this system delivers proven security and long-lasting durability for high-risk, high-traffic entrances.
Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Certified SR1 Security Standard
Independently tested to the rigorous LPS 1175 A1 (SR1) standard, this gate has demonstrated its ability to withstand a sustained 60-second physical attack using hand tools. This tested resistance ensures compliance with demanding insurance requirements and provides peace of mind for organisations needing assured site protection.
Innovative Low-to-No Weld Construction
The EnviroProtect® design reduces traditional welded joints, common weak points where corrosion starts, in favour of precision mechanical connections. This modern engineering approach increases strength, improves weather resistance, and extends the gate’s lifespan. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.4m (certified)
- Clear access width: 4000mm
- Overall width (inc. posts): 4430mm
- Gate leaves: 60 x 60mm steel box section
- Hinge posts: 100 x 100 x 3mm heavy-duty steel
- Finish: Pre-galvanised steel
Installation Options
The kit includes posts for both common installation methods:
- 2400mm base-plated posts – bolt-down fitting onto existing hard surfaces
- 3100mm dig-in posts – for creating deep concrete-set foundations
Benefits & Applications
This high-security gate is ideally suited to:
- Utility compounds
- Secure storage facilities
- Prisons and critical infrastructure sites
- Busy service yards and distribution hubs
The 2.4m height ensures maximum deterrence, while the 4.0m span allows practical vehicle access without compromising perimeter strength.
Get in Touch
Discuss your vehicle access requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
2.4m High x 4.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
The 2.4m high x 4.0m wide EnviroProtect® Double Leaf Gate Kit is built for sites requiring a strong visual deterrent and secure vehicle access. Its taller 2.4m height provides formidable anti-climb protection, while the 4.0m span accommodates larger vans and small lorries with ease. Supported by uprated 100x100mm hinge posts for stability across the wide opening, and certified to LPS 1175 A1 (SR1), this system delivers proven security and long-lasting durability for high-risk, high-traffic entrances.
Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Certified SR1 Security Standard
Independently tested to the rigorous LPS 1175 A1 (SR1) standard, this gate has demonstrated its ability to withstand a sustained 60-second physical attack using hand tools. This tested resistance ensures compliance with demanding insurance requirements and provides peace of mind for organisations needing assured site protection.
Innovative Low-to-No Weld Construction
The EnviroProtect® design reduces traditional welded joints, common weak points where corrosion starts, in favour of precision mechanical connections. This modern engineering approach increases strength, improves weather resistance, and extends the gate’s lifespan. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.4m (certified)
- Clear access width: 4000mm
- Overall width (inc. posts): 4430mm
- Gate leaves: 60 x 60mm steel box section
- Hinge posts: 100 x 100 x 3mm heavy-duty steel
- Finish: Pre-galvanised steel
Installation Options
The kit includes posts for both common installation methods:
- 2400mm base-plated posts – bolt-down fitting onto existing hard surfaces
- 3100mm dig-in posts – for creating deep concrete-set foundations
Benefits & Applications
This high-security gate is ideally suited to:
- Utility compounds
- Secure storage facilities
- Prisons and critical infrastructure sites
- Busy service yards and distribution hubs
The 2.4m height ensures maximum deterrence, while the 4.0m span allows practical vehicle access without compromising perimeter strength.
Get in Touch
Discuss your vehicle access requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
