BreezeGuard suitability report costs £99.00 per design
Engineer issued TWD and advice for your specific site for only £749.99 per design
Height | 2000mm |
Width | 3450mm |
Weight | 14kg [Panel] |
Panel Frame Diameter | 38.1mm [Vertical] , 25.4mm [Horizontal] |
Material | Pre-Galvanised [Panel & Coupler], Plastic or Concrete [Foot] |
Thickness of Wires | 3.2mm [Horizontal], 2.2mm [Vertical] |
Foot Dimensions | 122mm [H], 770mm [L], 195mm [D] |
Foot Weight | 14kg [Thermoplastic Foot], 28kg [Concrete Foot] |
Coupler Dimensions | 30mm [H], 136mm [W] |
Coupler Weight | 0.2kg |

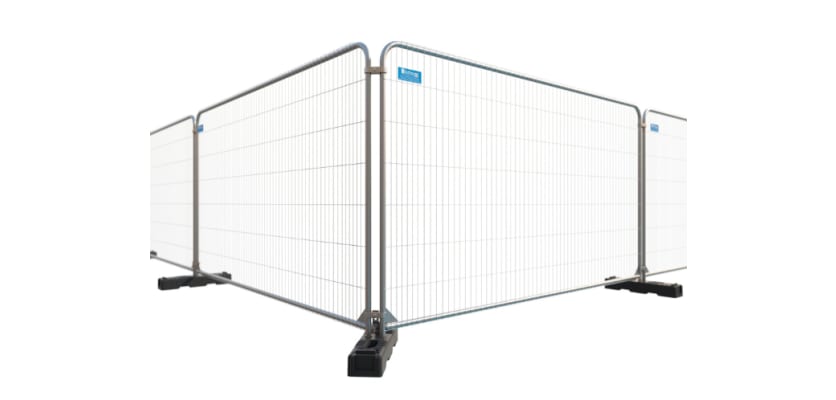

Round top temporary fencing panels are a quick to install and cost effective choice to create perimeters around temporary sites such as construction sites or public events such as fairs and festivals. It is considered to be a more robust and stronger variant of the standard square top panels due to its bent tube frame. Each kit contains enough components to construct a temporary fencing line or perimeter which contains up to 50 panels.
Much like the Standard Temporary Panels, the Round Top Temporary Fencing panels have been created to be an incredibly quick and easy to erect fencing solution to protect short term project sites.
Unlike the standard panels, which are more square in design, the frames of the round top panels have been constructed using a single steel tube which has been bent, producing the rounded corners at the top which gives these panels their name. This bent tube design reduces the number of weld points in the frame, reducing the potential of failures and increasing the strength.
Each panel is 2000mm high and 3450mm wide and features a mesh constriction. The mesh central section of the panels increases the strength and stability of the panel, whilst keeping the overall weight to a minimum and preventing the panels from being knocked down in high winds.
Featuring a modular design, it is possible to reuse these round top temporary fencing panels over and over again in multiple configurations, allowing you to meet the needs of a huge range of sites.
These round top temporary fencing panel kits are available with the choice of either thermoplastic or concrete feet. The concrete feet create a sturdier heavier base for your temporary fencing and are much more difficult for would be intruders and unauthorised persons to tamper with and move. The thermoplastic feet are a more lightweight alternative which is easier to move and install by hand. It is also possible to store these feet in a stillage which makes them easier to transport and store when not in use.
The round top temporary fencing panels have been designed to be incredibly quick and easy to install. Each of the panels is held upright by inserting the base poles of the panels into the holes of either the thermoplastic or concrete feet. The panels are then held together with the use of standard temporary fencing couplers. We would recommend using 2 couplers per connection for an increased level of strength. Each of these 50 panel kits comes with enough couplers for 2 per connection.
To make creating your temporary fencing line or perimeter easier, we would also recommend purchasing a standard coupler spanner.
Each of the Round Top Temporary Fencing 50 Panel Kits comes with the following components:
Should you have any questions regarding these panel kits, or any of the other products and accessories that we have in our temporary fencing range, please don’t hesitate to get in touch. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
