KSTOM50M Above Ground Telescopic Single Leaf Swing Gate Operator Kit - Up to 5.0m
Product Description
KSTOM50M Above Ground Telescopic Single Leaf Swing Gate Operator Kit - Up to 5.0m
The KSTOM50ME is a comprehensive kit that includes all the essential components needed to transform a manual gate into an automated system.

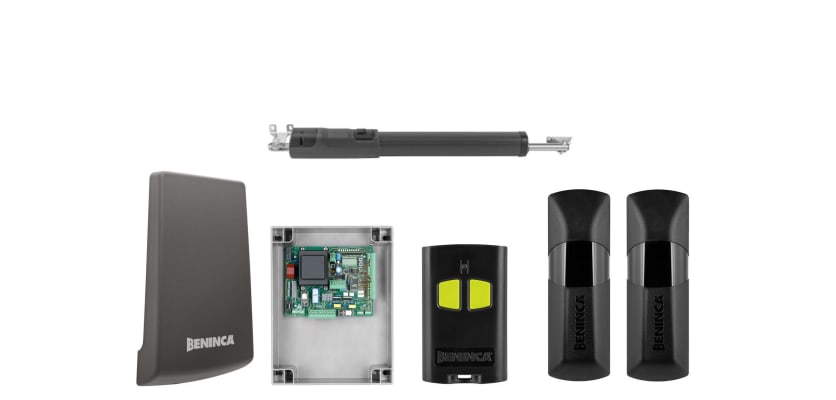

Kit Contents

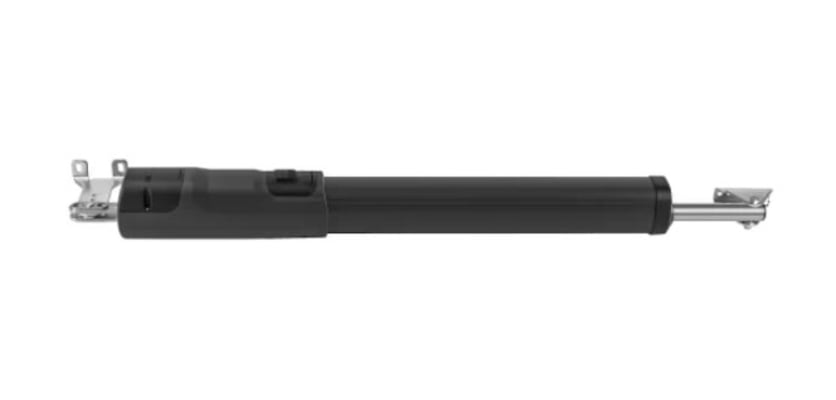

TOM50M Swing Gate Operator
The TOM50M is a reliable, advanced gear motor with two adjustable stops for smooth opening and closing. These stops are easily accessible under the metal shaft cover. Designed for swing gates, it features a compact 96mm width and screw-in brackets for easy installation.
The 45° wiring angle minimises ground clearance, while aligned brackets optimise load distribution for better durability. The worm screw, protected by a wiper ring and steel shaft, ensures reliable performance in dusty, sandy, or harsh environments.

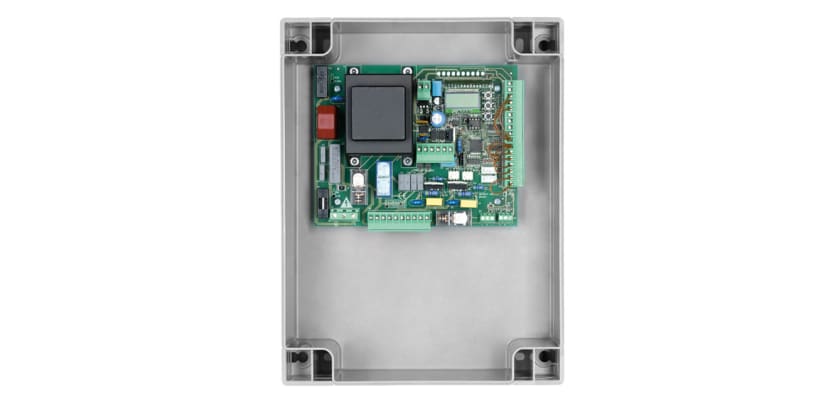

Brainy 230V Control Panel
The Brainy is designed for one or two motors and is ideal for swing gates and industrial folding doors. Installation is straightforward with the built-in display, and the control panel itself offers versatile operating logic to suit your needs.
PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or movement, causing the gate to stop or reverse, preventing accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a flexible transmitter for gate automation, capable of controlling two functions or gates, perfect for properties with multiple gates or separate entry and exit commands. It features secure coding technology to prevent unauthorised access and comes with two TO.GO2VA transmitters.

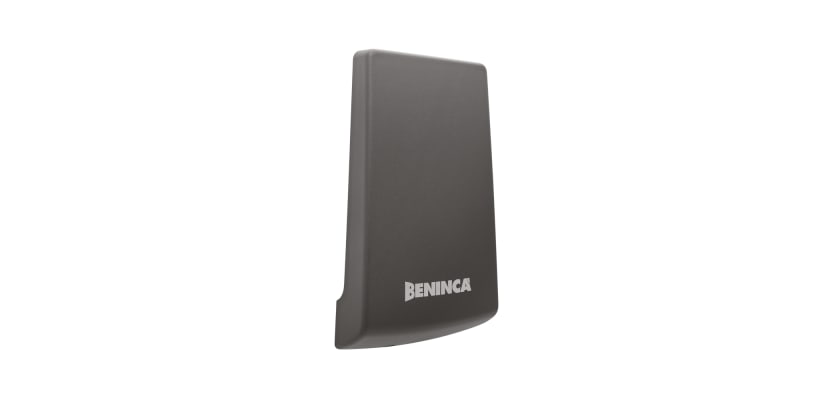

AWO Long Range Aerial
Long-range aerials enhance gate automation systems by increasing the range and reliability of remote control functions. Ideal for properties with long driveways, they allow gates to be operated from a greater distance. This kit includes one AWO long-range aerial, designed for external installation, with a 5m shielded RG58 cable and an IP54-rated box.
Get More From First Fence
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, palisade, mesh, railings, and specialist and custom offerings.
Contact Us
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512 111 or by using the online chat tool.
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 30% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | No |
| Max Gate Width | 4.5m |
What's Included
| Name | Quantity |
|---|---|
| TOM50M Above Ground Swing Gate Operator | 1 |
| Brainy 230V Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 30% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | No |
| Max Gate Width | 4.5m |
What's Included
| Name | Quantity |
|---|---|
| TOM50M Above Ground Swing Gate Operator | 1 |
| Brainy 230V Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
