TOM50M Above Ground Swing Gate Operator
Product Description

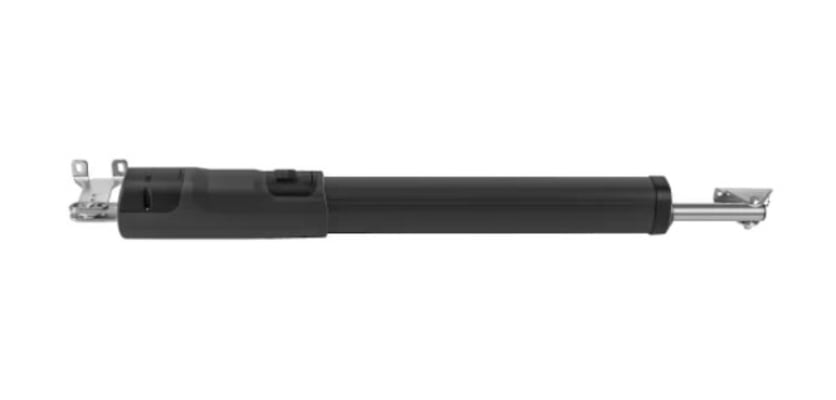

TOM50M Above Ground Swing Gate Operator
The TOM50M is a 230 Vac linear telescopic operator for gate leaves up to 4.5m and is ideal for residential or commercial settings.
The TOM50M is a reliable and advanced gear motor, equipped with two adjustable mechanical stops to guarantee smooth operation when opening and closing. These stops are easily accessible from above and located under the metal shaft cover, ensuring user convenience. Tailored for automating various swing gates, it stands out with its compact 96mm width footprint and screw-in brackets, making installation a breeze.
The 45° angle of the wiring cable reduces ground clearance to a minimum. Rear and front brackets aligned on the same axis optimise load distribution, thus improving the actuator's durability. Additionally, shielded by a wiper ring and a steel shaft, the worm screw guarantees suitability for environments prone to dust, sand, or harsh weather conditions.
This product has FACE gears, which enable decreased sensitivity to misalignment, minimal transmission errors, and quiet motor operation.
Features
A non-reversible 230 Vac electromechanical gear motor featuring patented FACE gears.
It includes easily adjustable limit switches for both opening and closing, which are accessible from above.
Additionally, it has mechanical stops for precise operation during opening and closing.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1575mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.3 A |
| Maximum Thrust | 2000 N |
| Opening Time | 30 Seconds |
| Duty Cycle | 30% |
| Maximum Stroke | 500mm |
| Protection Level | IP44 |
| Encoder | No |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 4.5m |
| Wind Loading | 50% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
