FFL RapidFold™ Double Leaf Gate - 868 Mesh Infill - Up To 6m Opening
Product Description

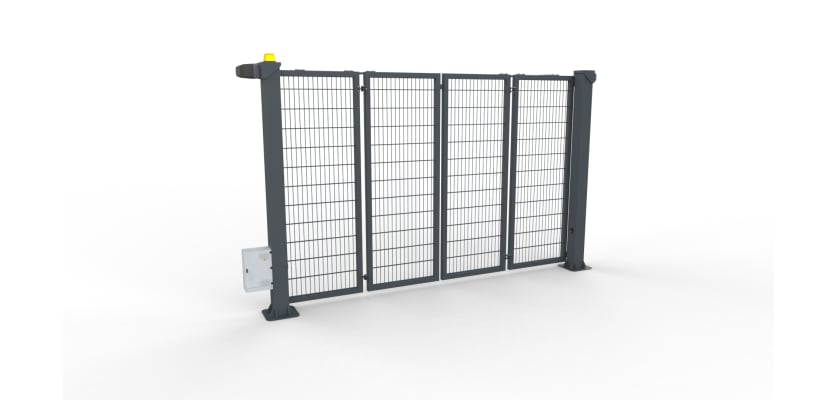

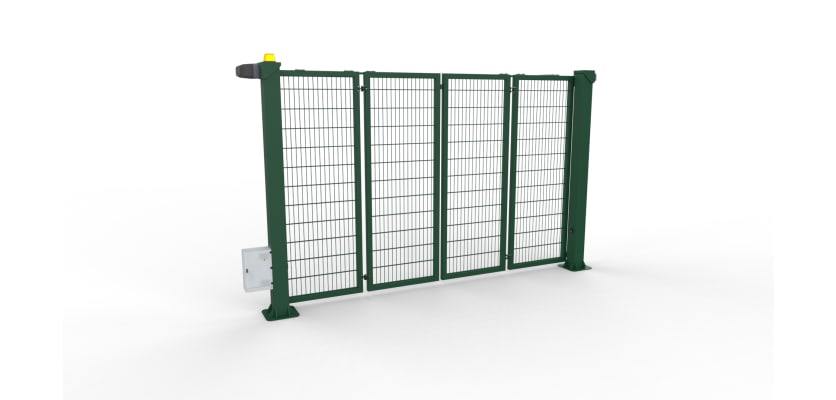

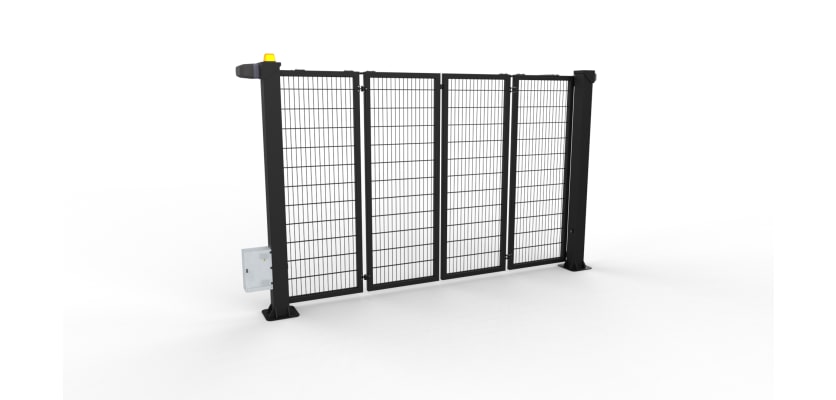

FFL RapidFold™ Double Leaf Gate - 868 Mesh Infill
Introducing First Fence's new range of Automatic Bi-Fold Gates, the FFL RapidFold™ Double Leaf Gate opens and closes much quicker than traditional swing gates. When the gate opens, the leaves fold back onto each other, requiring less clearance, where space may be at a minimum.
The gates come fully built, ready to bolt down on site and connect to mains power, making them a great choice for speedy installs.
Supplied with a range of safety devices to ensure the gates comply with current legislation, such as BS EN 12453, including safety edges, flashing lights, and photocells.
Please be aware that a full risk assessment must be carried out on site and that additional safety devices may be required.
With a width range between 3.0m and 6.0m and height between 2.0m and 2.5m, the Bi-folding gate provides access for cars, vans and lorries, allowing you to monitor the traffic flow, as well as enabling you to keep your premises secure. They are a popular choice of gate around areas such as police stations, industrial parks and airports.
If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours may incur an additional charge.
The FFL series of automated gates comes with a 2-year manufacturer's warranty.
Features & Benefits
- Manufactured using high-grade steel for superior strength and longevity
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- 868 Mesh Infill is standard; however, 358 Mesh is available on request
- Available in a range of colours to match any fencing system
- Enhanced security: protects your site with robust, tamper-proof construction and reliable locking mechanisms
- Bolt down posts for easy installation
Bi-folding gates are trackless and are dedicated for applications where quick, heavy-duty and safe operation is required.
The Double Leaf bi-folding Gate is made from galvanised steel. It has a polyester powder coating to not only enhance visibility but also help to prevent damage caused by rust and general wear and tear. It’s easy to install and very low maintenance.
A selection of additional options is available to add to your gate order, such as red/green traffic lights.
If you require matching fencing, please speak to our sales team about the best options to match this range.
Access Control and Other Accessories
The RapidFold™ Double Leaf Gate is compatible with a wide range of access control devices, such as GSM intercoms, ANPR cameras, Vehicle Detection Sensors, plus many more. First Fence offer a wide range of access control, so make sure you speak to us about the options that suit your site the best.
Contact Us
Need some advice or more technical information about our RapidFold™ Double Leaf Gate, then please don’t hesitate to get in touch. We can be reached online via phone on 01283 512 111, online through our online chat service or by email at sales@firstfence.co.uk
Specifications & Downloads
| Width (inside post to post) | From 3000mm - To 6000mm |
| Height (not including ground clearance) | From 2000mm - To 2500mm |
| Sizes | If your required size isn't shown - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel to ISO 1461 |
| Power Supply | Single Phase 230 Volt, 50 Hz, 9 Amps |
| Safety | Automated Gate Safety to BS EN 12453 |
| Drive Motor | 24V Beninca Premier Articulated Arm |
| Duty Cycles | 100% Continuous Duty Cycle Rating |
| Operation Time | Up to 9 Seconds (Dependent on Opening Size) |
| Finish | Polyester Powder Coated to BS EN 13438 |
| Manufacturer Warranty | 2 Years |
| Infill Type | 868 Mesh |
What's Included
| Name | Quantity |
|---|---|
| 160mm Bolt Down Posts (require M20 ground anchors) | 2 |
| Cat 3 Safety Edges | 4 |
| Wireless Safety Edge Transmission System | 1 |
| Pair of Photocells | 1 |
| Flush Mounted Keyswitch & ES Button | 1 |
| Flashing Light | 1 |
| Remote Operation Fobs | 2 |
| Control Panel Mounted on Post | 1 |
| Mechanical Roller Guide System (Electromagnetic Lock supplied on gates over 4.5m wide) | 1 |
