FFL 95 Automated Palisade Cantilever Gate 3.5m - 5.0m Wide
FFL 95 With Triple Point Palisade Infill - Black
Product Description

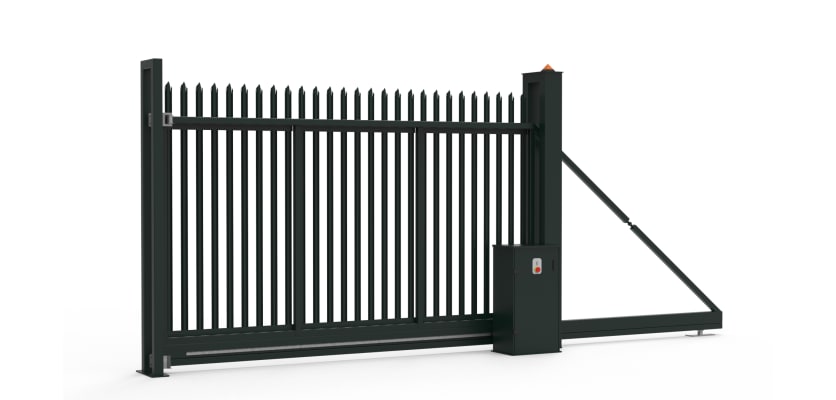

FFL 95 Automated Palisade Cantilever Gate 3.5m - 5.0m Wide

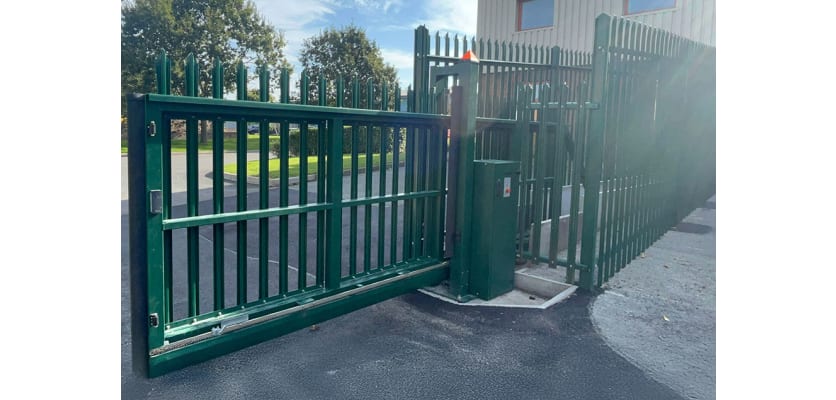

The FFL 95 Automated Palisade Cantilever Gate is a heavy-duty access solution designed for secure and reliable vehicle entry. Suitable for residential and commercial properties, its cantilever design allows the gate to slide smoothly without a ground track, making it ideal for sites with limited space.

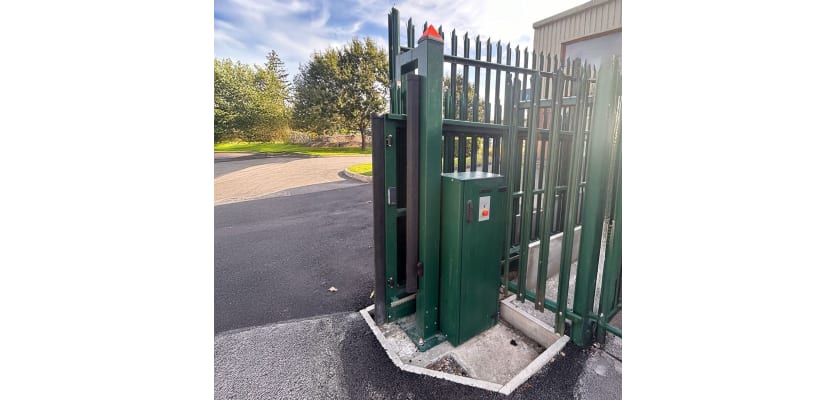

The FFL 95 features a built-in 24V gate motor, housed within the support post. This provides a clean, streamlined appearance while protecting the automation system from the elements.

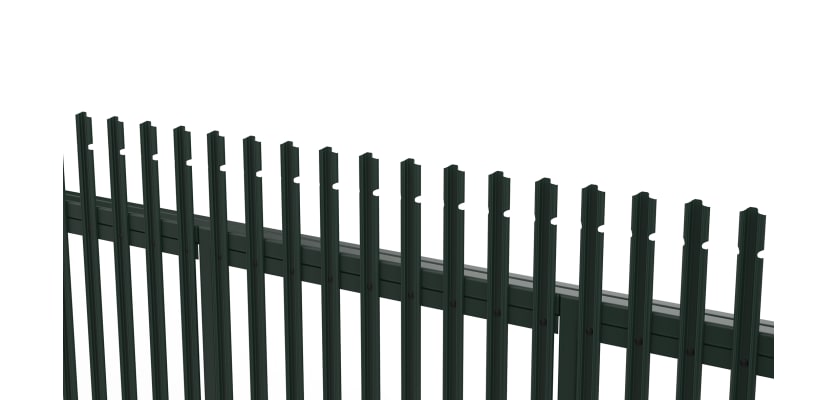

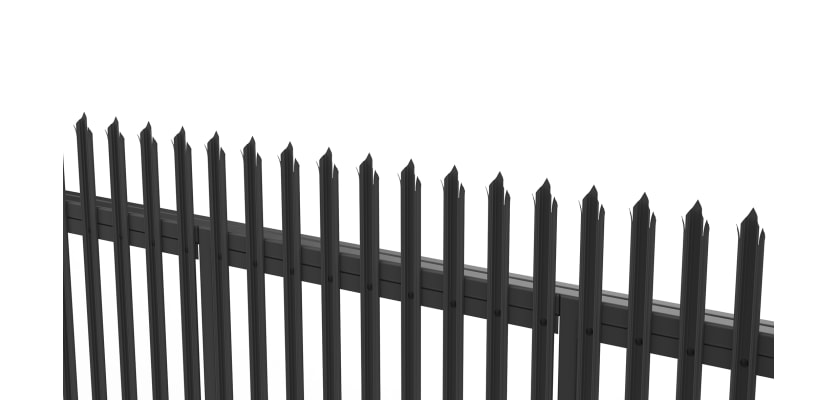

The gate is available with a choice of Triple Pointed, Round & Notched, or Single Point palisade pales, allowing you to select the style best suited to your security requirements. Pales are supplied loose for installation on site.
Available in widths from 3.5m to 5.0m, the FFL 95 is offered in a range of heights and standard RAL colours. Custom colours are also available at an additional cost. Galvanised-only options can be discussed with our sales team.
The FFL 95 is also available as the FFL 130 (5.5m - 7.5m wide) and FFL 200 (8.5m - 12.0m wide), as well as a manual option.
All FFL Series manual and automated cantilever gates come with a 2-year manufacturer's warranty.
Features & Benefits
- Heavy-duty steel construction for strength and durability
- Built-in 24V motor housed within the support post
- 100% duty cycle for reliable frequent use
- Opening speed of up to 9m/min
- Choice of Triple Pointed, Round & Notched, or Single Point pales
- Pales supplied loose for on-site installation
- Cantilever design eliminates the need for a ground track
- Protective finish helps prevent rust and withstand harsh weather
- Safety sensors stop the gate if an obstruction is detected
- Advanced locking system for enhanced security
- Available in a range of RAL colours
- Plug-and-play system for straightforward installation
- Compatible with access control and smart technology
Optional Extras
Enhance your gate with a range of optional accessories, including:
- Reflective strips
- Loop detectors
- Intercoms
- Press-to-exit buttons
- Laser scanners
Run-Back Space Requirements
The FFL 95 requires sufficient space behind the gate to allow it to fully open. Make sure your site has enough run-back space and overall clearance before ordering.
FFL 95 Gate Width | Recommended Run-Back Space | Overall Space Required |
|---|---|---|
3500mm | 5200mm | 8700mm |
4000mm | 5900mm | 9900mm |
4500mm | 6600mm | 11100mm |
5000mm | 7100mm | 12100mm |
Contact Us
Not sure which gate or configuration is right for your site? Our sales team can help you choose the right solution. Call 01283 512111, email sales@firstfence.co.uk, or speak to us using our online chat.
Specifications & Downloads
| Width | 3.5m, 4.0m, 4.5m or 5.0m |
| Height | 1.8m, 2.0m, 2.1m or 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Duty Cycle | 100% Duty Cycle |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 60 x 60mm |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years |
| Standards | Automated Gate Safety to BS EN 12453 |
What's Included
| Name | Quantity |
|---|---|
| Palisade Gate Leaf | 1 |
| Gear Rack [Fitted] | 1 |
| Cantilever Carriages | 2 |
| Bolt Down End Catcher Post | 1 |
| Motor Cabinet & Rear Support Post | 1 |
| Top Support Roller System | 1 |
| Sliding Gate Motor (hidden in the post) | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Run Back Support Roller | 1 |
Specifications & Downloads
| Width | 3.5m, 4.0m, 4.5m or 5.0m |
| Height | 1.8m, 2.0m, 2.1m or 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Duty Cycle | 100% Duty Cycle |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 60 x 60mm |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years |
| Standards | Automated Gate Safety to BS EN 12453 |
What's Included
| Name | Quantity |
|---|---|
| Palisade Gate Leaf | 1 |
| Gear Rack [Fitted] | 1 |
| Cantilever Carriages | 2 |
| Bolt Down End Catcher Post | 1 |
| Motor Cabinet & Rear Support Post | 1 |
| Top Support Roller System | 1 |
| Sliding Gate Motor (hidden in the post) | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Run Back Support Roller | 1 |
