FFL 200 Automated Palisade Cantilever Gate 8.5m - 12.0m Wide
FFL 200 With Triple Point Palisade Infill - Black
Product Description

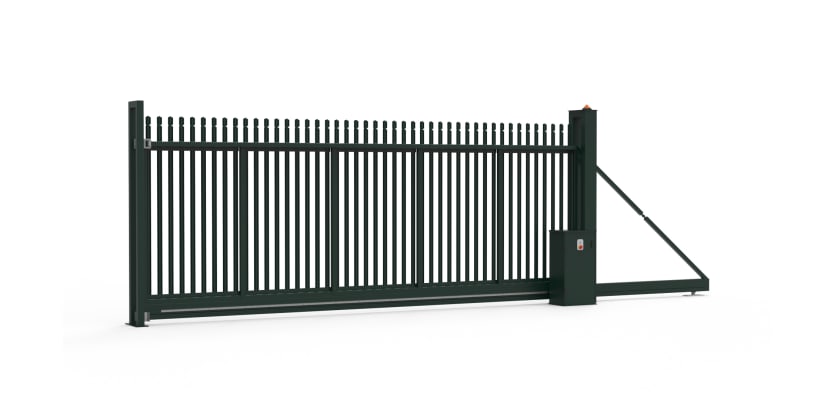

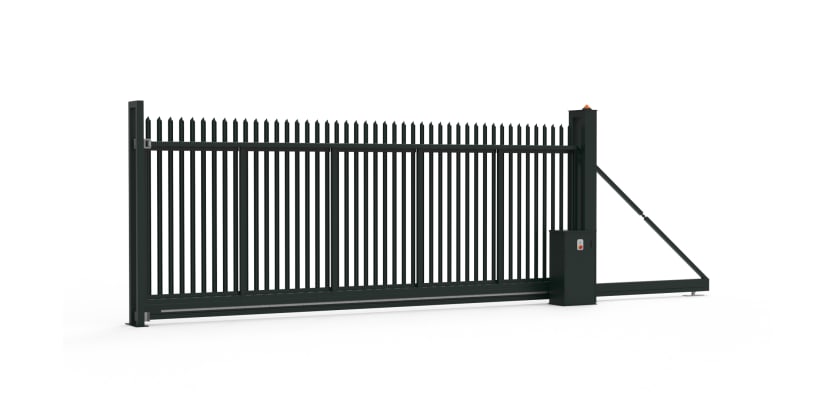

FFL 200 Automated Palisade Cantilever Gate 8.5m - 12.0m Wide
The FFL 200 Automated Palisade Cantilever Gate is a heavy-duty access solution designed for secure and reliable vehicle entry. Suitable for commercial and residential properties, its cantilever design allows the gate to slide smoothly without a ground track, making it ideal for sites where a tracked system isn't suitable.
Fitted with a 230V heavy-duty motor, the FFL 200 provides a 100% duty cycle, making it suitable for frequent use. An integrated cooling fan and oil bath help prevent overheating and maintain reliable performance.

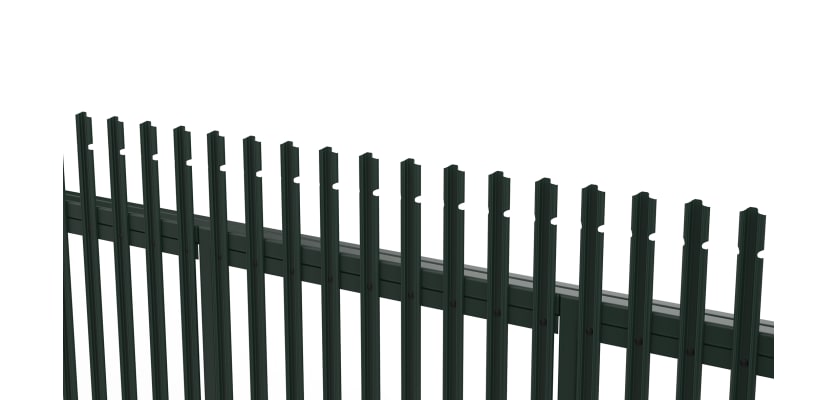

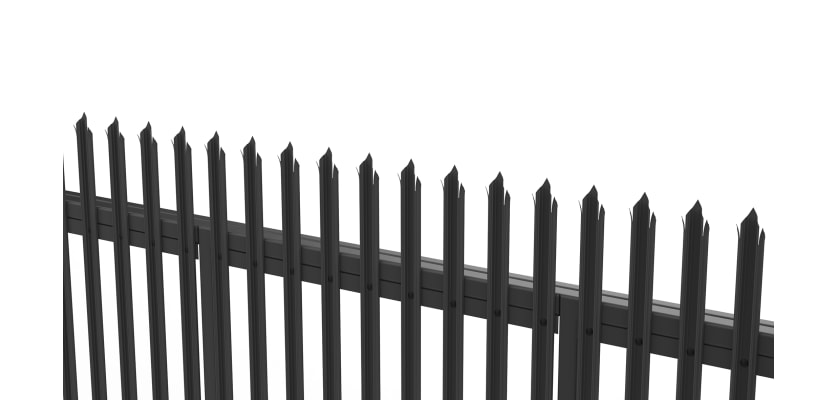

The gate is available with a choice of Triple Pointed, Round & Notched, or Single Point palisade pales, allowing you to choose the style and level of security suited to your site. Pales are supplied loose for installation on site.
Available in widths from 8.5m to 12.0m, the FFL 200 is offered in a range of heights and standard RAL colours. Custom colours are also available at an additional cost. Galvanised-only options can be discussed with our sales team.
The FFL 200 is also available as the FFL 95 (3.5m - 5.5m) and FFL 130 (5.5m - 8.0m), as well as a manual option.
All FFL Series manual and automated cantilever gates come with a 2-year manufacturer's warranty.
Features & Benefits
- Heavy-duty steel construction for strength and durability
- 230V motor with a 100% duty cycle
- Opening speed of up to 9m/min
- Choice of Triple Pointed, Round & Notched, or Single Point pales
- Cantilever design eliminates the need for a ground track
- Protective finish helps prevent rust and withstand harsh weather
- Safety sensors stop the gate if an obstruction is detected
- Advanced locking system for enhanced security
- Available in a range of RAL colours
- Plug-and-play system for straightforward installation
- Compatible with access control and smart technology
Optional Extras
A range of accessories can be added to your gate, including:
- Run-back support rollers
- Reflective strips
- Loop detectors
- Intercoms
- Press-to-exit buttons
- Laser scanners
See our range of gate automation accessories for more options to enhance your access control system.
Run-Back Space Requirements
The FFL 200 requires sufficient space behind the gate to allow it to fully open. Make sure your site has enough run-back space and overall clearance before ordering.
FFL 200 Gate Width | Recommended Run-Back Space | Overall Space Required |
|---|---|---|
8500mm | 11000mm | 19600mm |
9000mm | 11900mm | 20900mm |
9500mm | 12400mm | 21900mm |
10000mm | 13000mm | 23000mm |
11000mm | 14500mm | 25500mm |
12000mm | 16000mm | 28000mm |
Contact Us
Not sure which gate or configuration is right for your site? Our sales team can help you choose the right solution. Call 01283 512111, email sales@firstfence.co.uk, or speak to us using our online chat.
Specifications & Downloads
| Width | 8.5m, 9.0m, 9.5m, 10.0m, 11.0m or 12.0m |
| Height | 1.8m, 2.0m, 2.1m or 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Duty Cycle | 100% Duty Cycle |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 100 x 100mm |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years (1 Year - RAL 9005) |
| Standards | Automated Gate Safety to BS EN 12453 |
What's Included
| Name | Quantity |
|---|---|
| Palisade Gate Leaf | 1 |
| Gear Rack [Fitted] | 1 |
| Cantilever Carriages | 2 |
| Motor Cabinet & Rear Support Post | 1 |
| Top Support Roller System | 1 |
| Heavy Duty Sliding Gate Motor With Built-In Control Panel | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Run Back Support Roller | 1 |
Specifications & Downloads
| Width | 8.5m, 9.0m, 9.5m, 10.0m, 11.0m or 12.0m |
| Height | 1.8m, 2.0m, 2.1m or 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Duty Cycle | 100% Duty Cycle |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 100 x 100mm |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years (1 Year - RAL 9005) |
| Standards | Automated Gate Safety to BS EN 12453 |
What's Included
| Name | Quantity |
|---|---|
| Palisade Gate Leaf | 1 |
| Gear Rack [Fitted] | 1 |
| Cantilever Carriages | 2 |
| Motor Cabinet & Rear Support Post | 1 |
| Top Support Roller System | 1 |
| Heavy Duty Sliding Gate Motor With Built-In Control Panel | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Run Back Support Roller | 1 |
Product Description
FFL 200 Automated Palisade Cantilever Gate 8.5m - 12.0m Wide
The FFL 200 Automated Palisade Cantilever Gate is a heavy-duty access solution designed for secure and reliable vehicle entry. Suitable for commercial and residential properties, its cantilever design allows the gate to slide smoothly without a ground track, making it ideal for sites where a tracked system isn't suitable.
Fitted with a 230V heavy-duty motor, the FFL 200 provides a 100% duty cycle, making it suitable for frequent use. An integrated cooling fan and oil bath help prevent overheating and maintain reliable performance.
The gate is available with a choice of Triple Pointed, Round & Notched, or Single Point palisade pales, allowing you to choose the style and level of security suited to your site. Pales are supplied loose for installation on site.
Available in widths from 8.5m to 12.0m, the FFL 200 is offered in a range of heights and standard RAL colours. Custom colours are also available at an additional cost. Galvanised-only options can be discussed with our sales team.
The FFL 200 is also available as the FFL 95 (3.5m - 5.5m) and FFL 130 (5.5m - 8.0m), as well as a manual option.
All FFL Series manual and automated cantilever gates come with a 2-year manufacturer's warranty.
Features & Benefits
- Heavy-duty steel construction for strength and durability
- 230V motor with a 100% duty cycle
- Opening speed of up to 9m/min
- Choice of Triple Pointed, Round & Notched, or Single Point pales
- Cantilever design eliminates the need for a ground track
- Protective finish helps prevent rust and withstand harsh weather
- Safety sensors stop the gate if an obstruction is detected
- Advanced locking system for enhanced security
- Available in a range of RAL colours
- Plug-and-play system for straightforward installation
- Compatible with access control and smart technology
Optional Extras
A range of accessories can be added to your gate, including:
- Run-back support rollers
- Reflective strips
- Loop detectors
- Intercoms
- Press-to-exit buttons
- Laser scanners
See our range of gate automation accessories for more options to enhance your access control system.
Run-Back Space Requirements
The FFL 200 requires sufficient space behind the gate to allow it to fully open. Make sure your site has enough run-back space and overall clearance before ordering.
FFL 200 Gate Width | Recommended Run-Back Space | Overall Space Required |
|---|---|---|
8500mm | 11000mm | 19600mm |
9000mm | 11900mm | 20900mm |
9500mm | 12400mm | 21900mm |
10000mm | 13000mm | 23000mm |
11000mm | 14500mm | 25500mm |
12000mm | 16000mm | 28000mm |
Contact Us
Not sure which gate or configuration is right for your site? Our sales team can help you choose the right solution. Call 01283 512111, email sales@firstfence.co.uk, or speak to us using our online chat.
