FFL 80S Single Leaf 358 Prison Mesh Swing Gate with Automation Bundle - up to 5m opening
Product Description

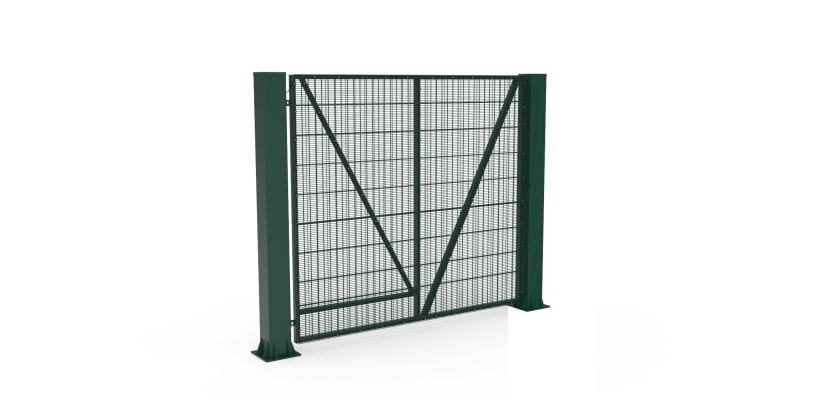

FFL 80S Single Leaf 358 Prison Mesh Swing Gate with Automation Bundle
Introducing First Fence's new range of commercial swing gates, a high-end choice for secure and stylish access control. Crafted with a dedication to quality and innovation, these gates provide reliable and convenient access for both residential and commercial properties.
First Fence's FFL 80S Swing Gates feature a range of heights starting at 1.4m high up to 2.4m high. Select from a range of widths to get the perfect fit for your location.
This range comes with a complete automation bundle, including a full Beninca above-ground automation kit, flashing light, dual height photocells, ASO safety edges, a Beninca wireless safety edge transmission system, plus other additional items to enable a complete install.
Please be aware that a full risk assessment must be carried out on site and that additional safety devices may be required.
If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours will incur an additional charge.
The FFL series of manual and automated gates comes with a 2-year manufacturer's warranty.
Features & Benefits
- Manufactured using high-grade steel for superior strength and longevity
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with a rear mid-rail to fit the automation ram to
- 358 Prison Mesh infill offering enhanced security
- Available in a range of colours to match any fencing system
- Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
- Bolt down posts for easy installation (dig-in posts available on request)
A selection of additional options is available to add to your gate order, such as anti-climb spikes.
If you require matching fencing, please speak to our sales team about the best options to match this range.
Contact Us
If you need additional information or assistance in selecting the right product, please get in touch, and one of our sales team members will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Width (inside post to post) | 3.5m, 4.0m, 4.5m or 5.0m |
| Height (leaf height from ground level) | 1.4m, 1.6m, 1.8m, 2.1m, 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel to ISO 1461 |
| Finish | Polyester Powder Coated to BS EN 13438 |
| Box Section of Main Gate Frame | 80 x 80mm |
| Infill Type | 358 Prison Mesh |
| Manufacturer Warranty | 2-Years |
| Standards | Manual Gate Safety to BS EN 12604 |
What's Included
| Name | Quantity |
|---|---|
| 358 Prison Mesh Gate Leaf | 1 |
| Hinges | 2 |
| 160mm Bolt Down Post | 2 |
| Ground Anchor Bolts | 8 |
| Beninca Automation Kit | 1 |
| Beninca Remote Transmitters | 2 |
| Additional Photocell Set | 1 |
| Rotary Isolator | 1 |
| ABS Enclosure | 1 |
| Cat 3 Safety Edges | 2 |
| Beninca Wireless Safety Edge Transmission Kit | 1 |
| Flashing Light | 1 |
| Locinox U-Safe | 1 |
| Cable Door Loop | 1 |
Specifications & Downloads
| Width (inside post to post) | 3.5m, 4.0m, 4.5m or 5.0m |
| Height (leaf height from ground level) | 1.4m, 1.6m, 1.8m, 2.1m, 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel to ISO 1461 |
| Finish | Polyester Powder Coated to BS EN 13438 |
| Box Section of Main Gate Frame | 80 x 80mm |
| Infill Type | 358 Prison Mesh |
| Manufacturer Warranty | 2-Years |
| Standards | Manual Gate Safety to BS EN 12604 |
What's Included
| Name | Quantity |
|---|---|
| 358 Prison Mesh Gate Leaf | 1 |
| Hinges | 2 |
| 160mm Bolt Down Post | 2 |
| Ground Anchor Bolts | 8 |
| Beninca Automation Kit | 1 |
| Beninca Remote Transmitters | 2 |
| Additional Photocell Set | 1 |
| Rotary Isolator | 1 |
| ABS Enclosure | 1 |
| Cat 3 Safety Edges | 2 |
| Beninca Wireless Safety Edge Transmission Kit | 1 |
| Flashing Light | 1 |
| Locinox U-Safe | 1 |
| Cable Door Loop | 1 |
