SKU: WEB-08296

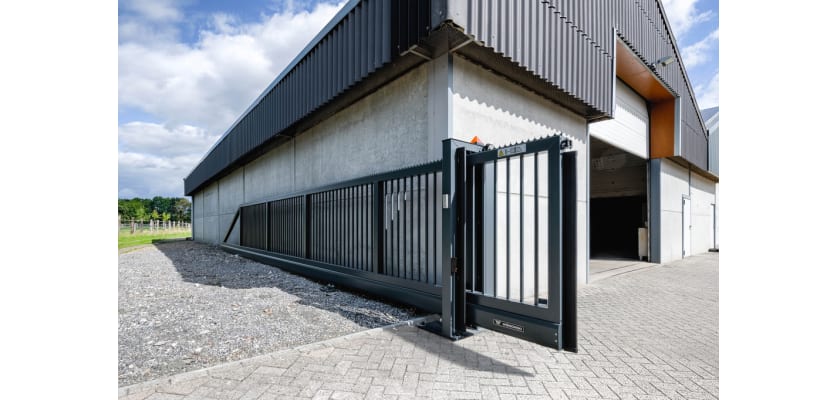

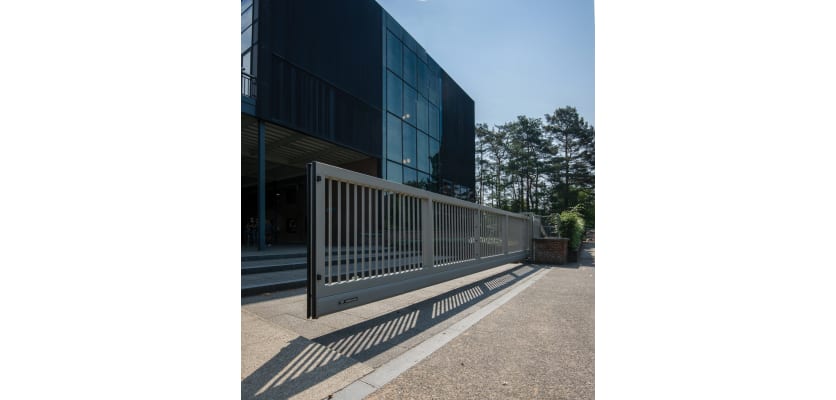

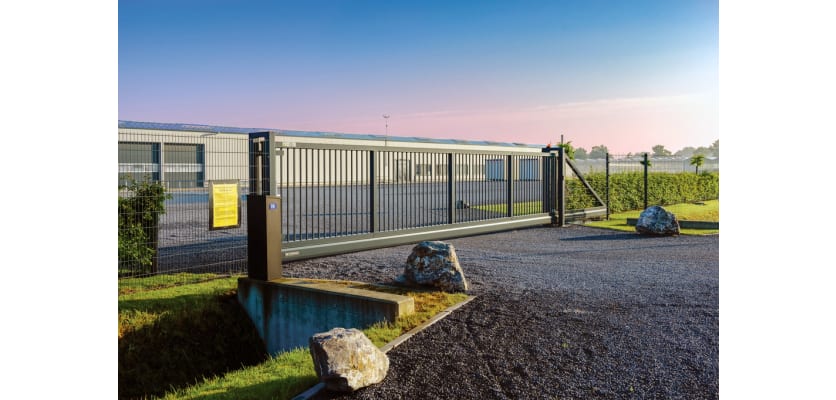

FFL 130 Manual Vertical Bar Cantilever Gate 6.0m - 7.5m Wide

£4,550.00
EACH
£5,460.00 incl VAT
In Stock
Or three monthly payments of £1874.60 with
Available to UK Limited businesses only
Images shown are for illustration purposes only and may differ slightly
Trade Installer Banner
Gate Height
Gate Width
Choose Finish
Opening Direction
From the outside looking in, which way does your gate open?
£0.00 EA
Exact delivery cost added during basket checkout
£0.00 incl VAT

Product Description

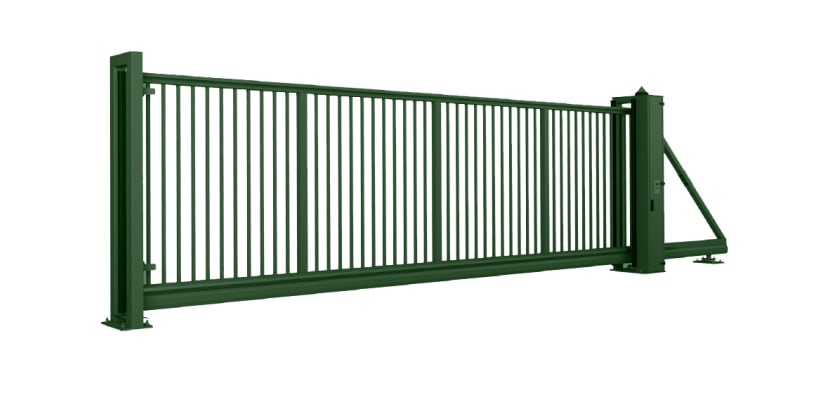

FFL 130 Manual Vertical Bar Cantilever Gate 6.0m - 7.5m Wide

Introducing First Fence's range of cantilever gates, a high-end choice for secure and stylish access control. Crafted with a dedication to quality and innovation, these gates provide reliable and convenient access for both residential and commercial properties.

The cantilever system provides smooth sliding without ground tracks, making these gates ideal for properties with limited space since they do not need extra room for opening and closing.

First Fence's FFL 130 Manual Vertical Bar Cantilever Gates feature a vertical 25mm round bar for a sleek, modern appearance while ensuring high security. The infill is welded to the frame for enhanced durability.

The FFL 130 Manual Vertical Bar Cantilever Gate comes in various widths and heights and is available in a wide range of standard RAL colours. If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours will incur an additional charge.

These gates are also available as the FFL 95 (3.5 - 5.5m wide) and the FFL 200 (8.0 - 12.0m wide), and as an automated version.

The FFL Series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.

Features and Benefits

  • Manufactured using high-grade steel for superior strength and longevity
  • Finished with a protective coating to withstand harsh weather conditions and prevent rust
  • Equipped with advanced locking mechanisms to provide maximum security
  • Available in a range of colours to match any fencing system
  • Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
  • The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance

A selection of additional options is available to add to your gate order, including anti-climb spikes (these are available only on gates over 1.8m high), run back support rollers and reflective strips.

The gate comes with a two-year manufacturer warranty.

When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required:

FFL 130 GATE WIDTH

RECOMMENDED RUN BACK SPACE

OVERALL SPACE REQUIRED

6000mm

8100mm

14100mm

6500mm

8800mm

15300mm

7000mm

9500mm

16500mm

7500mm

10200mm

17700mm

Get in touch

If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.

Specifications & Downloads

Width6.0, 6.5, 7.0 or 7.5m [7.5m is not available as 2.4m Height]
Height1.0, 1.2, 1.45, 1.65, 1.95, 2.15 or 2.4m
SizeOther Sizes Available - Call To Discuss
Lead TimeStarts From Drawings Sign Off
MaterialGalvanised Steel
FinishPolyester Powder Coated
Box Section of Main Gate Frame80 x 80mm
Infill Type25mm Round Tube
Manufacturer Warranty2-Years
StandardsManual Gate Safety to BS EN 12604

What's Included

NameQuantity
Cantilever Carriages2
Bolt Down End Catcher Post1
Top Support Roller System1

Specifications & Downloads

Width6.0, 6.5, 7.0 or 7.5m [7.5m is not available as 2.4m Height]
Height1.0, 1.2, 1.45, 1.65, 1.95, 2.15 or 2.4m
SizeOther Sizes Available - Call To Discuss
Lead TimeStarts From Drawings Sign Off
MaterialGalvanised Steel
FinishPolyester Powder Coated
Box Section of Main Gate Frame80 x 80mm
Infill Type25mm Round Tube
Manufacturer Warranty2-Years
StandardsManual Gate Safety to BS EN 12604

What's Included

NameQuantity
Cantilever Carriages2
Bolt Down End Catcher Post1
Top Support Roller System1

Product Description

FFL 130 Manual Vertical Bar Cantilever Gate 6.0m - 7.5m Wide

Introducing First Fence's range of cantilever gates, a high-end choice for secure and stylish access control. Crafted with a dedication to quality and innovation, these gates provide reliable and convenient access for both residential and commercial properties.

The cantilever system provides smooth sliding without ground tracks, making these gates ideal for properties with limited space since they do not need extra room for opening and closing.

First Fence's FFL 130 Manual Vertical Bar Cantilever Gates feature a vertical 25mm round bar for a sleek, modern appearance while ensuring high security. The infill is welded to the frame for enhanced durability.

The FFL 130 Manual Vertical Bar Cantilever Gate comes in various widths and heights and is available in a wide range of standard RAL colours. If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours will incur an additional charge.

These gates are also available as the FFL 95 (3.5 - 5.5m wide) and the FFL 200 (8.0 - 12.0m wide), and as an automated version.

The FFL Series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.

Features and Benefits

  • Manufactured using high-grade steel for superior strength and longevity
  • Finished with a protective coating to withstand harsh weather conditions and prevent rust
  • Equipped with advanced locking mechanisms to provide maximum security
  • Available in a range of colours to match any fencing system
  • Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
  • The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance

A selection of additional options is available to add to your gate order, including anti-climb spikes (these are available only on gates over 1.8m high), run back support rollers and reflective strips.

The gate comes with a two-year manufacturer warranty.

When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required:

FFL 130 GATE WIDTH

RECOMMENDED RUN BACK SPACE

OVERALL SPACE REQUIRED

6000mm

8100mm

14100mm

6500mm

8800mm

15300mm

7000mm

9500mm

16500mm

7500mm

10200mm

17700mm

Get in touch

If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.
