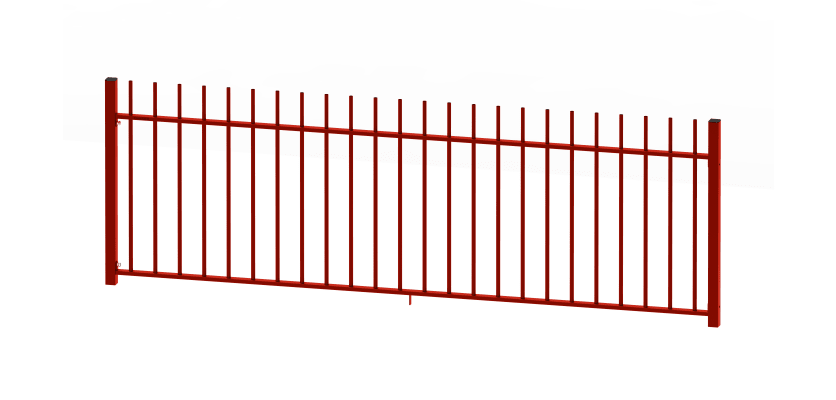

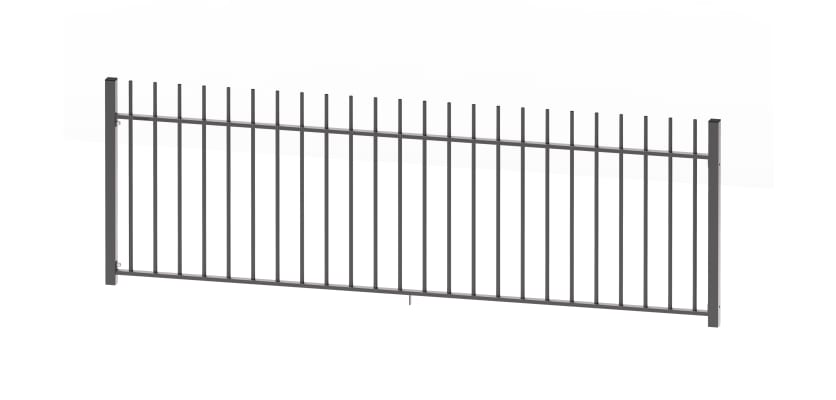

0.9m High EnviroRail® Vertical Bar Round Railing Kit

0.9m High EnviroRail® Vertical Bar Round Railing Kit

These 0.9m High EnviroRail® are a strong and versatile railing solution which has been constructed using more environmentally friendly practices, reducing the amount of welding required. The height of these bays makes them an ideal choice for surrounding flower beds or vegetable patches, preventing them from being trampled.

The 0.9m High EnviroRail® railings, in appearance, may look like a standard bay of vertical bar railings, but the key difference lies in the manufacturing. EnviroRail® railings use a revolutionary new more environmentally friendly reduced weld construction. This system uses a series of custom made formed and laser cut components that have been specially designed to form incredibly strong and sturdy bonds when pressed together, without the need for using energy and resource intensive welding practices.

Each EnviroRail® kit is comprised of pre-galvanised steel hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

To allow for installation in many different locations, these EnviroRail® railings are available with either dig in or bolt down posts.

Dig in posts – The dig in posts have been created to allow for installation on softer ground types where holes can be dug. These posts are then held in place securely using post mix, which when set, creates an incredibly strong support for the post and railings.

Bolt down posts – Bolt down posts are designed for areas where the ground has been covered in concrete or another hard surface, making digging holes not possible for reasons such as time or cost. These posts are supplied with a pre-attached base plate which allows the bolt to be secured to the ground surface with the use of ground anchor bolts

Each railing kit includes:

Each of the 0.9m High EnviroRail® Vertical Bar Round Railing Kits is supplied with the following components:

• 1 x EnviroRail® Vertical Bar Railing Panel
• 1 x EnviroRail® Vertical Bar Railing Post
• 4 x Twist Cleats
• 2 x M10 x 70mm Bolts
• 2 x M10 Shear Nuts
• 1 x Support Legs
• 1 x Ribbed Post Insert

As each kit is supplied with one post, an additional end post may be required in order to complete your railing system.

Benefits and features

• Revolutionary new environmentally friendly construction process – with the use of custom made and formed components creating strong bonds, the amount of energy and resource intensive welding is reduced.
• Made to last – These reduced weld bonds are incredibly strong, creating strong and sturdy railing systems..
• Hollow tube construction providing an excellent level of strength whilst helping to keep weight to a minimum.
• High quality PPC finish – Each bay of EnviroRail® Vertical Bar Railing Panel is finished with a high quality and professionally applied Polyester Powder Coating (PPC). These coatings are available in a range of RAL colours and provide a layer of protection against weathering and rust.

Customise your EnviroRail® Railing kits

The 0.9m high EnviroRail® Vertical Bar Railing kits are supplied with a professionally applied Polyester Powder Coating (PPC). These coatings are available in a variety of different RAL colours, allowing you to create an aesthetically pleasing perimeter or to match the existing colours of your organisation. These coatings not only look great, but also provide the steel with an additional layer of protection against the detrimental effects of rusting.

In the unfortunate event that the Polyester Powder Coating on your EnviroRail® railings become damaged, either during installation, or through accidental damage, it is quick and easy to restore the finish and the protection that it provides with the use of a touch up spray can

How to step your panel

Step One: Drill a 6mm pilot hole in the desired location for the new cleat; this is dictated by the gradient.

Step Two: Open the hole to a 12mm hole size to take the M10 bolts (as listed in the step below).

Step Three: Touch up and spray the hole, if required.

Step Four: Attach the cleat using the M10 x 70mm Square Cup Head Bolt and Shear Nut (for 0.9m to 1.2m height system) or M10 x 80mm Square Cup Head Bolt and Shear Nut (1.5m to 2.4m height systems).

Step Five: Attach the railing panel as per standard installation guidance.

Note: Please ensure the spacing relationships are followed according to the existing hole centres on the posts.

Take a look at the rest of our EnviroRail® railing systems

Be sure to take a look at the rest of our EnviroRail® railing systems, there are a range of additional heights in these vertical bar railings, as well as Bow Top Railings and also Play Sec Railings which are suitable for play areas and parks.

Contact us

Need help finding the right EnviroRail® system for you? Then get in touch with our friendly and helpful staff who will be more than happy to assist. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
