1.8m High x 2.0m Wide EnviroRail® Flat Top Single Leaf Gate Kit
Product Description
1.8m High x 2.0m Wide EnviroRail® Flat Top Single Leaf Gate Kit
First Fence proudly introduces the EnviroRail® Flat Top Gate range, a perfect complement to the EnviroRail® Flat Top Railing collection. The clean top line of this style not only enhances its aesthetic appeal but also serves a functional purpose. Despite its ornate design, this product functions as an effective barrier, suitable for various settings from parks and schools to commercial and residential properties. Balancing security with an open and inviting appearance, it safeguards public spaces.
The EnviroRail® range by First Fence presents gate and railing panel kits. Our gates are offered as single and double leaf options, available in a variety of polyester powder-coated colours.
Features and Benefits
The EnviroRail® Flat Top Railing appears conventional but is crafted using a low-weld method, making it an environmentally conscious system. This method involves custom-made, laser-cut pre-galvanised components that create robust bonds when pressed together, eliminating the need for energy-intensive welding.
Our gates are constructed from pre-galvanised steel conforming to BS 10346 standards and then coated with polyester powder. These treatments ensure durability against outdoor conditions.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
EnviroRail® Gates comprise a fully modular, lightweight system with easy installation options for various hardware. Universally handed, they offer on-site flexibility without fixed left or right-hand leaf, allowing for customisable installation. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.

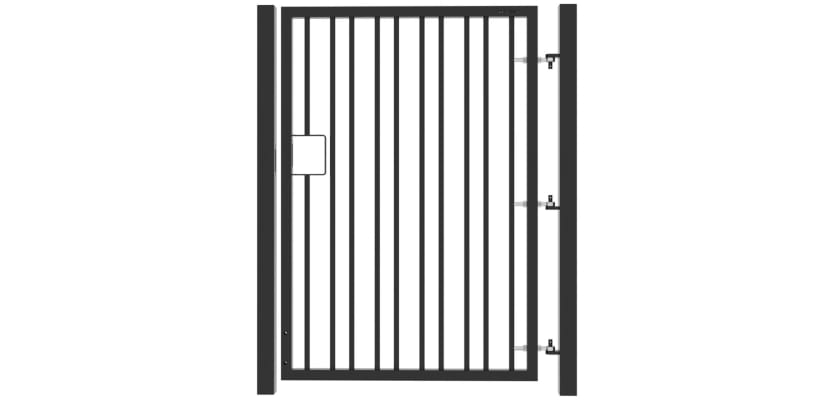

Each gate is pre-drilled for easy installation of three hinges and a drop bolt. Plastic hole plugs are provided, offering a clean finish when the drop bolt isn't installed.
The gate kit comprises an EnviroRail® gate leaf, hinge post, catch post, and three adjustable gate eyes, meeting BS 12604 safety guidelines, to ensure stability in the unlikely event of even one hinge failing. Furthermore, the gate hooks are fully welded to the gate post giving fixed axis hinges with no up or down movement.
Available in various heights and widths, this gate kit comes in dig-in or bolt-down versions, suitable for diverse installations. The dig-in option suits softer ground and requires Post Mix for stability, while the bolt-down option is designed for hard ground, each post secured with four M16 x 125mm anchor bolts.
When installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
The UniSlide Slider Single Gate Kit comes included with all EnviroRail single gates, ensuring a secure and smooth sliding mechanism for reliable operation. The modularity of this gate range means it is compatible with all our security locks, which are also available from First Fence. An anti-climb Locking Plate can also be added to this selection
Additionally, a selection of EnviroRail® Railings and Estate Railings and Gates are also offered by First Fence.
Contact Us
For any inquiries about First Fence products, reach out to our sales team for guidance. Contact us at 01283 512111 or use our online chat tool for assistance. We're here to help with your selection process.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Post Length | 1800mm [Bolt Down], 2400mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Rail Style | Flat Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| UniSlide Slider Kit | 1 |
