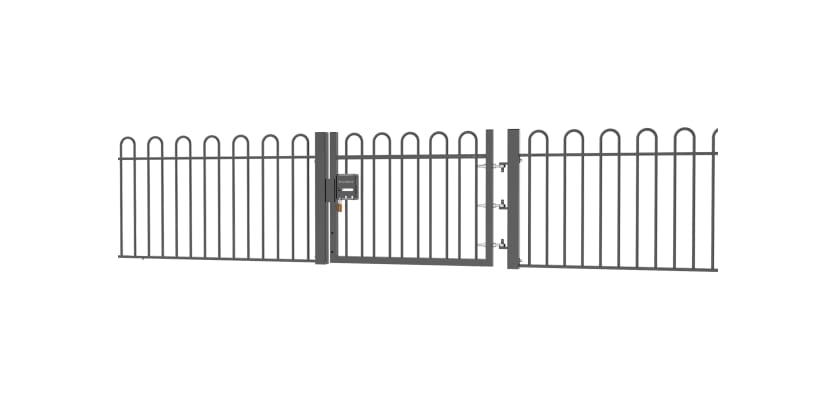

1.2m High x 1.2m Wide EnviroRail® Bow Top Single Leaf Gate Kit

1.2m High x 1.2m Wide EnviroRail® Bow Top Single Leaf Gate Kit

Within the EnviroRail® Railing range from First Fence you will discover both gate and railing kits in a vast array of heights and widths. The 1.2m high x 1.2m wide EnviroRail® Bow Top Gate will perfectly match the co-ordinating railing style and add elegance and security to wherever it is placed. Bow Top Railings have a graceful and highly decorative appeal that not only looks attractive but also serves an effective barrier role. This fencing and gate system offers exceptional versatility, fitting seamlessly into various environments such as schools, parks, and residential areas due to its adaptable nature.

Features and Benefits

This Bow Top gate kit may look like a just another typical bay, however its fabrication uses a low-weld technique which makes it an environmentally sound system. This manufacture method uses a set of custom-made, laser-cut elements that form very strong bonds when they are pressed together during assembly, which takes out the high-energy and resource-intense welding that other systems use.

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier. Each EnviroRail gate is fitted with a UniSlide kit, providing a secure and durable sliding system for seamless operation. The Single Leaf Kit features a retainer plate and guide plate for proper alignment, a sturdy slider with an  handle set and fixings.

All of the gates in this range are made from high quality pre-galvanised steel which conforms to BS 10346 standards, and are then polyester powder coated. Both of these treatments ensure that the product has a long, useful lifespan and can withstand the challenges of being installed permanently outdoors. A range of RAL colours is available to choose from.

EnviroRail® gates present a lightweight and fully modular system that is equipped for swift installation of a variety of gate hardware kits. These gates are universally handed, giving ultimate on-site flexibility in terms of selecting the preferable leaf orientation. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.

The gate comes with pre-drilled holes on the frame which are designed for the simple installation of the three hinges and a locking drop bolt (if required). This kit also comes with plastic hole plugs that are for use on the non-attack face of the gate, if a drop bolt isn't added.

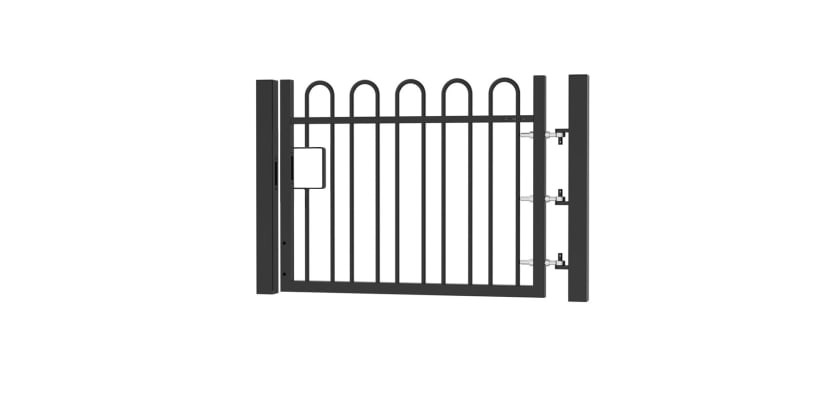

This EnviroRail® Single Leaf Gate Kit comprises a gate leaf, hinge and catch post, and three adjustable gate eyes, which means the gate conforms to BS 12604 safety guidelines. The three hinges ensure that in the event of one failing, the gate will not fall and cause injury or damages. The gate hooks are fully welded onto the gate post, these are fixed axis hinges with no up or down movement.

Available in various heights and widths, this gate kit offers both dig-in and bolt-down versions suitable for installation in diverse locations. The dig-in option suits softer ground like soil or grass, requiring Post Mix for post stability. Meanwhile, the bolt-down option suits harder ground and is secured using four M16 x 125mm anchor bolts.

This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.

First Fence also offers a selection of EnviroRail® Railings and Estate Railings and Gates for purchase.
