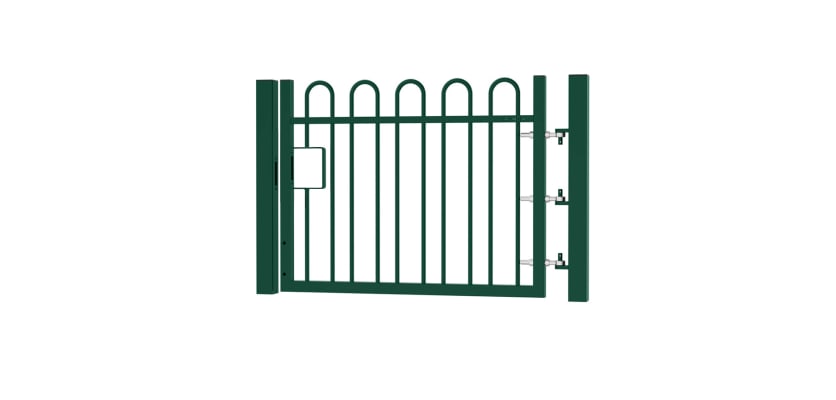

1.0m High x 3.0m Wide EnviroRail® Bow Top Single Leaf Gate Kit

1.0m High x 3.0m Wide EnviroRail® Bow Top Single Leaf Gate Kit

Bow Top Railing is a very attractive and decorative form of fencing, the graceful curvature at the top of the rail enhances the aesthetics of the structure while serving a practical purpose. Despite this ornamental nature, this type of product also serves as an effective barrier with a range of applications from parks and schools to commercial and residential properties. They provide security to public spaces while maintaining an open and welcoming appearance.

First Fence is proud to announce the EnviroRail® Bow Top Gate range, designed to fully complement the EnviroRail® Bow Top Railing portfolio. EnviroRail® from First Fence features both gate and railing panel kits. The gates are available as a single and double leaf and in a range of polyester powder coated colours.

Features and Benefits

EnviroRail® Bow Top Railing may look like a standard railing bay at first glance, however it is manufactured with a low-weld method which means it is a more eco-friendly system. This system uses a series of custom-made and laser-cut pre-galvanised components that form incredibly strong, sturdy bonds when pressed together, negating the need to use high energy, resource-intensive welding.

The gates are fabricated from quality pre-galvanised steel, which conforms to BS 10346, and then polyester powder coated. Both of these treatments ensure that this product can easily withstand the rigours of being permanently installed out of doors

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier. .

EnviroRail® Gates are a fully modular and lightweight system for a range of hardware that is quick and easy to install. It is universally handed, so has no fixed left or right-hand leaf, giving on-site control to choose whichever is best. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.

All the EnviroRail®gates come with holes ready-drilled in the frame. These holes are designed for easy installation of the three hinges and a drop bolt. Plastic hole plugs come with the gate and these can be placed into the holes on the attack face not having a drop bolt installed.

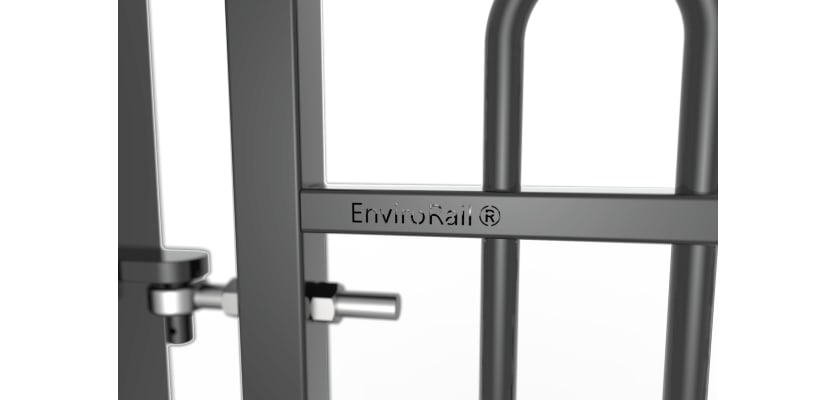

The kit comes with an EnviroRail® gate leaf, hinge and catch post and three adjustable gate eyes. The three hinges make the gate compliant with BS 12604 safety guidance, meaning if one hinge should fail, the others will keep the gate leaf in place and not fall, potentially causing injury or damage. The three gate hooks are fully welded to the gate post, these are fixed axis hinges with no up or down movement. All EnviroRail gates are supplied with a UniSlide kit, a strong and secure sliding system designed for smooth operation. The Single Leaf Kit consists of a retainer plate and guide plate for precise alignment, a robust slider with an  handle set and fixings.

This gate kit is available in a range of widths and heights and as a dig in or bolt down version which allows for installation in most types of locations. The dig in option is suited to softer ground substances such as soil or grass and will require Post Mix to hold the posts in place. The bolt down option is for hard ground substances and is fixed down with four M16 x 125mm anchor bolts.

This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.

A range of EnviroRail® Railings and Estate Railings and Gates are also available to purchase from First Fence.
