Height | 1000mm [Installed] |
Access Width | 1200mm |
Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
Box Sections of Posts | 80x80mm |
Box Sections of Gate Leaf | 50x50mm |
Rail Style | Bow Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 3 |
Ribbed Inserts for Gate Frame | 2 |
Ribbed Inserts for Posts | 2 |
First Fence is delighted to announce the EnviroRail® Bow Top Gate range, designed to fully complement the EnviroRail® Bow Top Railing portfolio. Bow Top Railing is an attractive and decorative form of fencing, the graceful curves at the top of the rail enhances the look of the structure while also serving a practical purpose. Despite this ornamental nature, this kind of product serves as an effective boundary barrier with a broad range of applications from parks and schools to commercial and residential properties. They provide much-needed security to public spaces while always maintaining an open and welcoming appearance.
EnviroRail® from First Fence features a choice of gate and railing panel kits. The gates in the range are available as a single or double leaf and in a range of polyester powder coated colours so you can match them to an existing colour scheme if you wish.
EnviroRail® Bow Top Railing or Gates may look like a standard railing product, however its manufacture uses a low-weld method meaning it is a more eco-friendly system. This system uses a series of custom-made and laser-cut pre-galvanised components that form incredibly robust bonds when they are pressed together, removing the use of high energy, resource-intensive welding.
The single leaf gates are manufactured from pre-galvanised steel, which conforms to BS 10346, and then they are polyester powder coated. Both of these treatments offer protection to the gate and ensure that it can easily withstand the challenges of being permanently sited out of doors.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
EnviroRail® Gates are a fully modular, lightweight system for a range of gate hardware that has swift and easy installation. It is a universally handed gate, so has no fixed left or right-hand leaf, giving on-site control to choose whichever is best. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
All the EnviroRail ®gates come with holes ready-drilled in the frame. These are designed for the installation of the three hinges and the drop bolt. Plastic hole plugs come with the gate and these can be placed into the holes on the attack face not having a drop bolt installed. A locking drop bolt is also available to purchase.

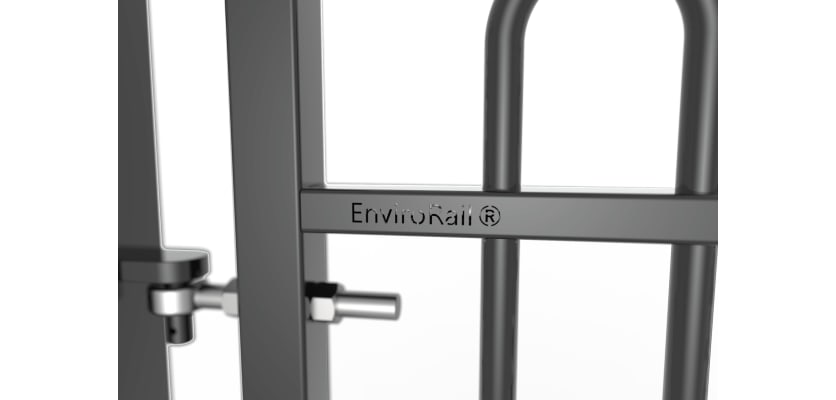

The kit comes with an EnviroRail® gate leaf, hinge and catch post and three adjustable gate eyes. The three hinges make the gate compliant with BS 12604 safety guidance, meaning if one hinge should fail, the others will keep the gate leaf in place and not fall, potentially causing injury or damage. The three gate hooks are fully welded to the gate post, and these are fixed axis hinges with no up or down movement.
This gate kit is available in a range of heights and widths and as a dig in or bolt down version which allows for installation in many types of locations. The dig in option is suited to softer ground substances such as soil or grass and will require Post Mix to hold the posts in place. The bolt down option is for hard ground substances and is fixed down with four M16 x 125mm anchor bolts.
This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
A range of EnviroRail® Railings and Estate Railings and Gates are also available to purchase from First Fence.
