1.0m High x 1.0m Wide EnviroRail® Bow Top Single Leaf Gate Kit
Slider and Drop Bolt Sold Separately
| Height | 1000mm [Installed] |
| Access Width | 1000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 80x80mm |
| Box Sections of Gate Leaf | 50x50mm |
| Rail Style | Bow Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Gate Frame | 2 |
| Ribbed Inserts for Posts | 2 |
1.0m High x 1.0m Wide EnviroRail® Bow Top Single Leaf Gate Kit
Explore the diverse selection of gate and railing kits within the EnviroRail® collection by First Fence. Standing at a height of 1.0 metres and spanning 1.0 metres in width, this EnviroRail® Bow Top Gate seamlessly complements the corresponding railing styles in this series, adding a touch of elegance and security to its designated location. Not only do the Bow Top Railings boast an attractive and decorative appeal, but they also serve as a practical barrier.
Ideal for various environments such as schools, parks, public and residential areas, this versatile fencing and gate system offers a blend of aesthetics and functionality.
Features and Benefits
The single leaf Bow Top gate kit, despite resembling a conventional gate at first glance, employs an eco-friendly construction method via a low-weld process. Utilising custom-made, laser-cut components, this technique ensures robust bonds without the need for energy-intensive welding.
Crafted from pre-galvanised steel meeting BS 10346 standards and further polyester powder coated, all gates in this range guarantee extended durability against outdoor challenges. Customisation options include a selection of RAL colours.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gates are designed as a lightweight, fully modular system, facilitating quick installation with various gate hardware kits. Universally handed, these gates offer on-site flexibility in leaf orientation selection. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
Featuring pre-drilled frame holes for easy hinge and locking drop bolt installation, if required, along with plastic hole plugs for non-attack face use, these gates also offer optional accessories like a locking drop bolt.

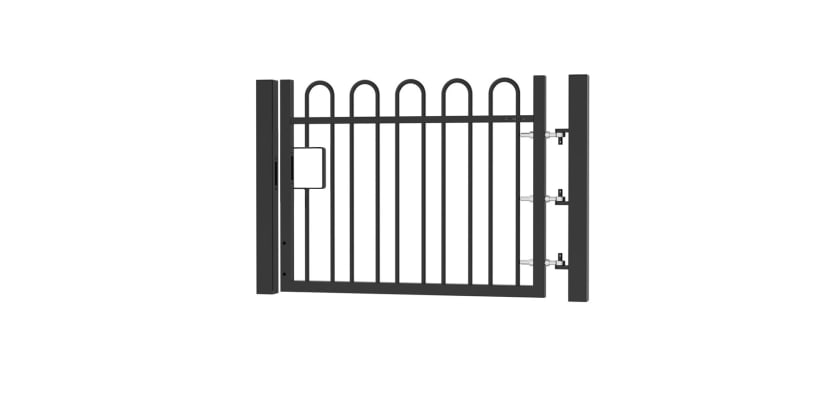

The EnviroRail® Single Leaf Gate Kit comprises a gate leaf, hinge and catch post, and three adjustable gate eyes, adhering to BS 12604 safety guidelines. The inclusion of three hinges ensures safety, preventing accidents in case one fails, with gate hooks fully welded onto the gate post. These are fixed axis hinges with no up or down movement.
Available in different heights and widths, this gate kit offers both dig-in and bolt-down versions suitable for diverse installation locations. The dig-in option is suitable for softer ground, requiring Post Mix for stability, while the bolt-down version is ideal for harder ground and secured using four M16 x 125mm anchor bolts.
This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
Furthermore, First Fence offers a range of EnviroRail® Railings and Estate Railings and Gates, broadening your choices for selection and purchase.
