CAB Hydro KSHD.5024EAC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m
| Motor Supply | 24 Vdc |
| Gate Usage | Commercial |
| Motor Type | Hydraulic |
| Duty Cycle | 99% |
| Built In Physical Stops | No |
| Fixing Bracket Type | Screw On |
| Protection Level | IP55 |
| Encoder | Yes |
| Max Gate Width | 5.0m |
| Maximum Thrust | 5000 N |
| Name | Quantity |
|---|---|
| HD.5024EAC Above Ground Hydraulic Swing Gate Operator | 1 |
| Brainy 24.T Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
CAM Hydro KSHD.5024EAC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m
The CAB Hydro KSHD.5024EAC is a complete kit equipped with everything required to convert a manual gate into a fully automated system.
Kit Contents

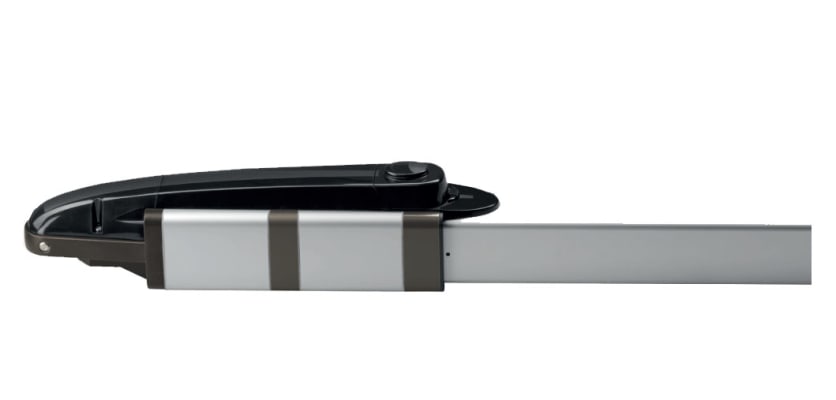

HD.5024EAC Above Ground Hydraulic Swing Gate Operator
This HD.5024EAC is a versatile solution designed for gates up to 5.0m in width (per leaf). An irreversible gate operator ensures outstanding security and reliability by eliminating unauthorised manual interference; once the gate is closed or opened, manual alteration becomes impossible. These operators are preferred in security-centric settings such as airports, industrial sites, or secure facilities. Their design guarantees that the gate remains firmly closed or open until activated by authorised personnel, thereby strengthening overall security protocols.

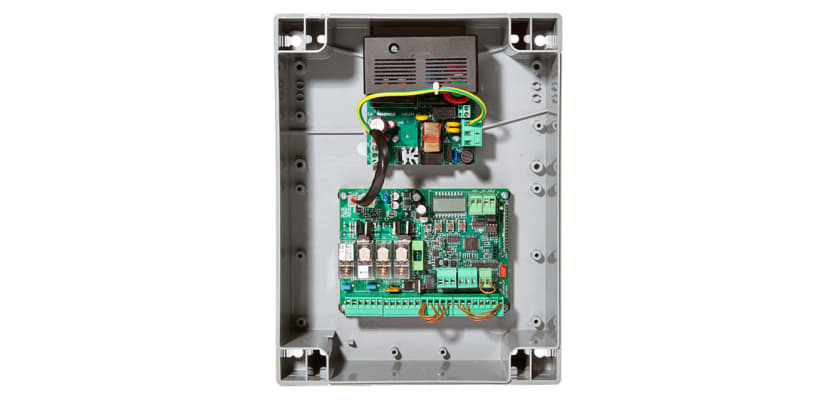

Brainy24.T Control Panel
The BRAINY24.T Full Featured Control Panel is designed for one or two motors and is ideal for swing gates and industrial folding doors with a maximum of two sections. It features anti-crushing safety through amperometric detection and encoder management, as well as adjustable slowdowns for each motor during both opening and closing phases. The Advantouch system is included for configuring parameters and managing radio transmitters, along with a count of manoeuvres, a programming access password, and maintenance warnings.
PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or motion, prompting the gate to stop or reverse to prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two independent functions or gates, making it ideal for properties with multiple gates or where separate entry and exit commands are required. This kit comes with 2 transmitters.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom options.
