HD.5024EAC Above Ground Hydraulic Swing Gate Operator
Product Description
HD.5024EAC Above Ground Hydraulic Swing Gate Operator
The HD.5024EAC Above Ground Hydraulic Swing Gate Operator is a versatile solution designed for gates up to 5.0m in width.
An irreversible gate operator ensures outstanding security and reliability by eliminating unauthorised manual interference; once the gate is closed or opened, manual alteration becomes impossible. These operators are preferred in security-centric settings such as airports, industrial sites, or secure facilities. Their design guarantees that the gate remains firmly closed or open until activated by authorised personnel, thereby strengthening overall security protocols.
Crafted from premium materials, this operator ensures dependable performance, straightforward installation, and maintenance ease.
Features

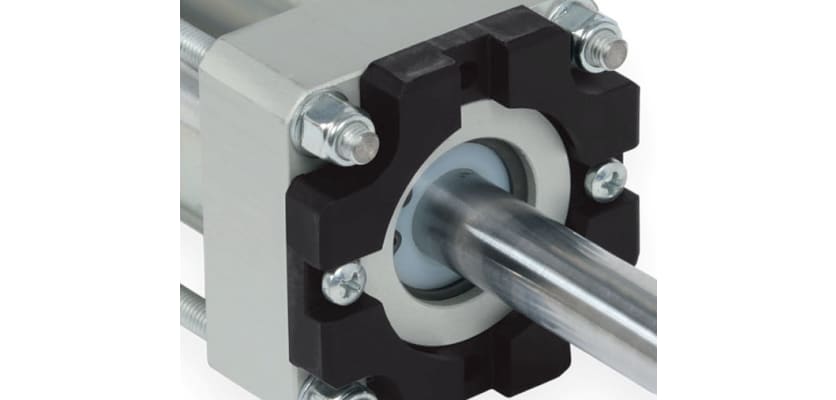

A chrome-plated steel shaft and anodised aluminium profile ensure maximum resistance to environmental conditions.
The encoder and low-voltage motor enhance performance, safety, and precision during gate movement, offering anti-crush protection.

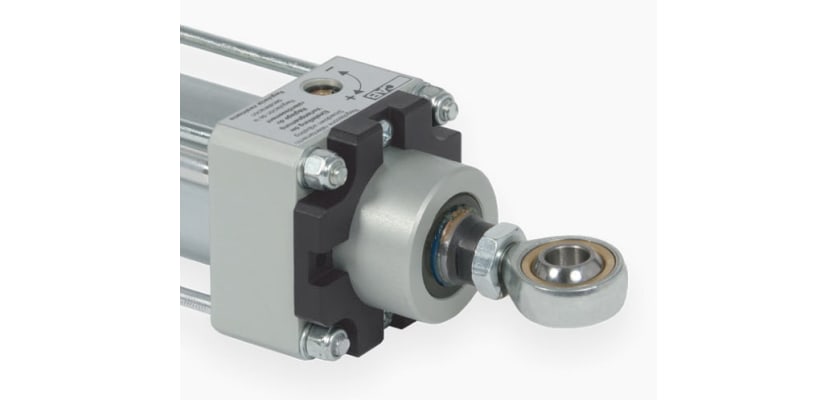

The rear pivot joint simplifies installation by compensating for any potential misalignment of the gate.
Adjustable electronic deceleration during opening and closing provides maximum quietness and smooth operation.
Minimising impact against mechanical stops helps reduce the risk of breakdowns.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1177mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5 A |
| Maximum Thrust | 5000 N |
| Duty Cycle | 99% |
| Stroke Length | 270mm |
| Protection Level | IP55 |
| Encoder | Yes |
| Built In Physical Stops | No |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld on |
| Compatible Control Panel | Brainy24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
