CAB Hydro KHD.35 Above Ground Hydraulic Double Leaf Swing Gate Operator - Up to 3.5m Per Leaf
| Motor Supply | 230 Vac |
| Gate Usage | Commercial |
| Motor Type | Hydraulic |
| Duty Cycle | 99% |
| Built In Physical Stops | No |
| Fixing Bracket Type | Screw On |
| Protection Level | IP55 |
| Encoder | No |
| Max Gate Width | 3.5m |
| Maximum Thrust | 5000 N |
| Name | Quantity |
|---|---|
| HD.35 Above Ground Hydraulic Swing Gate Operator | 2 |
| Brainy 230v Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
CAB Hydro KHD.35 Above Ground Hydraulic Double Leaf Swing Gate Operator - Up to 3.5m Per Leaf

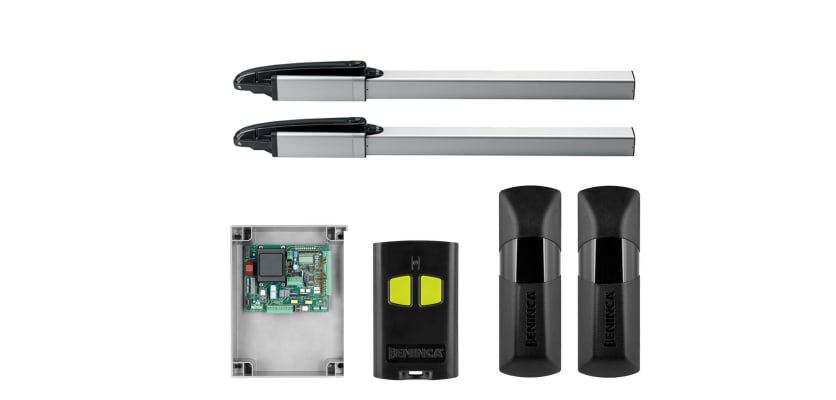

The CAB Hydro KHD.35 is a complete kit equipped with everything required to convert a manual gate into a fully automated system.
Kit Contents

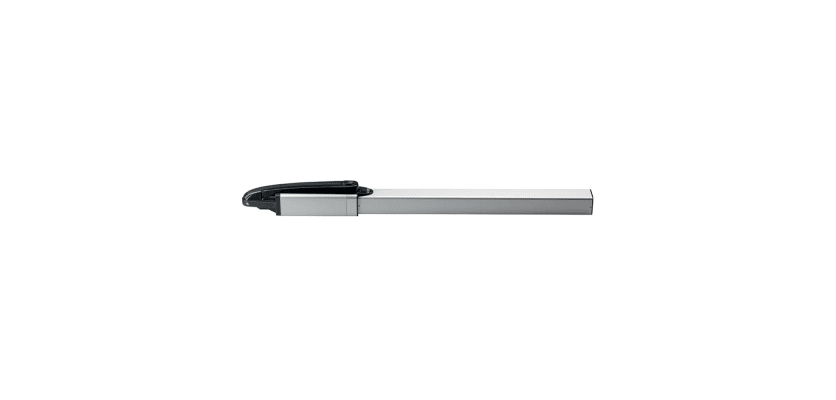

HD.35 Above Ground Hydraulic Swing Gate Operator (x2)
The HD.35 Above Ground Hydraulic Swing Gate Operator is a versatile solution designed for gates up to 3.5m (per leaf) in width. Reversible by nature, these operators automate gate movements in both directions, offering adaptability for various settings. Commonly deployed in residential, commercial, and industrial environments where frequent gate operation is necessary, their ability to reverse movement direction proves advantageous, especially in tight spaces.

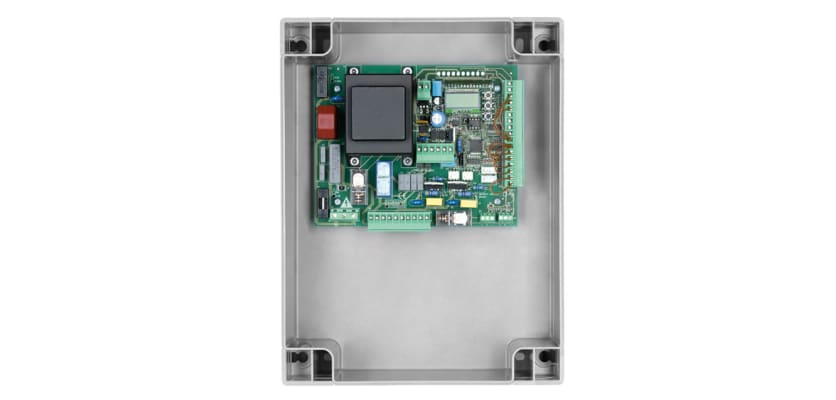

Brainy 230v Control Panel
The BRAINY 230V full-featured control panel is built for one or two motors, making it perfect for swing gates, hydraulic operators, and industrial folding doors. The built-in display simplifies installation, and the control panel provides flexible operating modes to meet your specific needs.

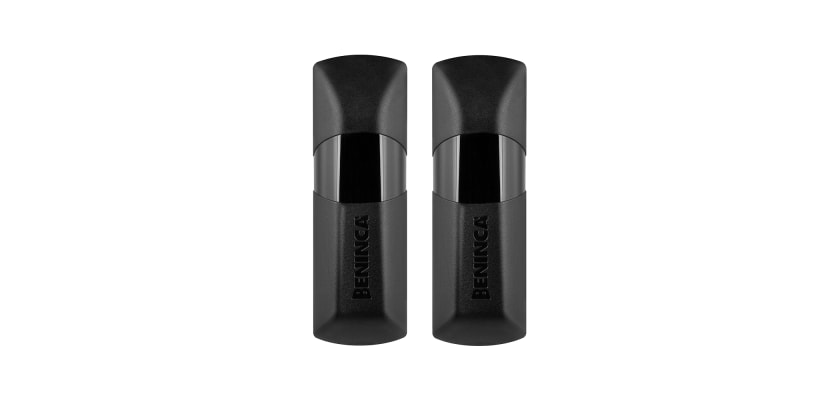

PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or motion, prompting the gate to stop or reverse to prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two independent functions or gates, making it ideal for properties with multiple gates or where separate entry and exit commands are required. This kit comes with 2 transmitters.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom options.
