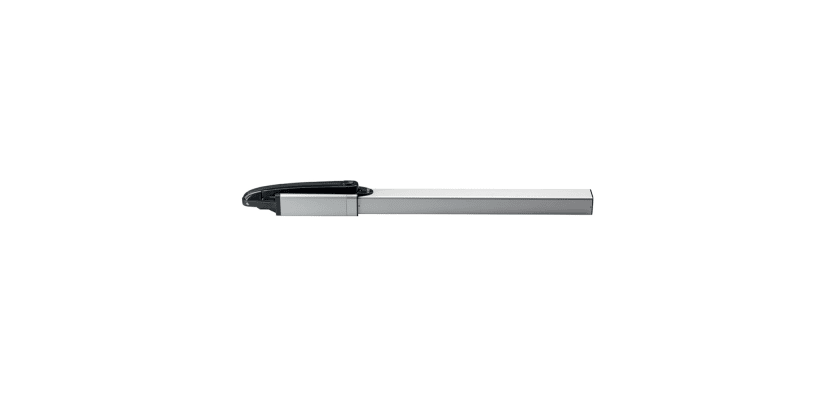

HD.35 Above Ground Hydraulic Swing Gate Operator
Product Description
HD.35 Above Ground Hydraulic Swing Gate Operator
The HD.35 Above Ground Hydraulic Swing Gate Operator is a versatile solution designed for gates up to 3.5m in width. Reversible by nature, these operators automate gate movements in both directions, offering adaptability for various settings. Commonly deployed in residential, commercial, and industrial environments where frequent gate operation is necessary, their ability to reverse movement direction proves advantageous, especially in tight spaces.
Crafted from premium materials, this operator ensures dependable performance, straightforward installation, and maintenance ease.
Features
The HD.35 hydraulic gate operator is suitable for gates up to 3.5 metres.

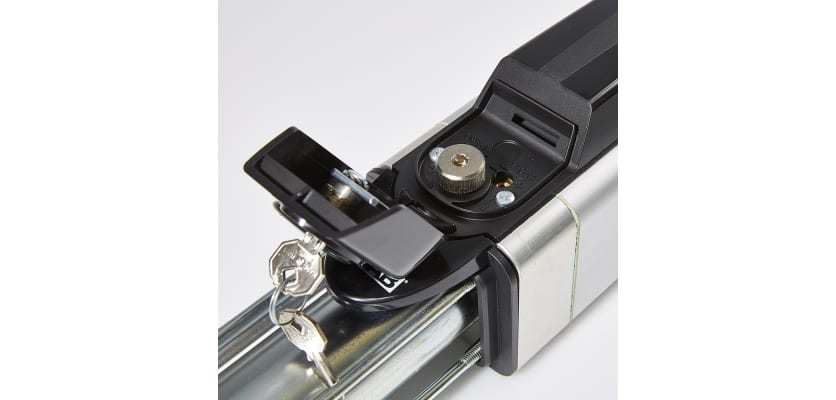

It offers exceptional performance and features a personalised key-operated release.
With self-alignment and precise stroke adjustment, it ensures safe and smooth operation.
Designed for easy installation and maintenance, it combines reliability with high-quality materials.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product range, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1177mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 5000 N |
| Duty Cycle | 99% |
| Stroke Length | 270mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -15°C/+50°C |
| Max Gate Width | 3.5m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld on |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
