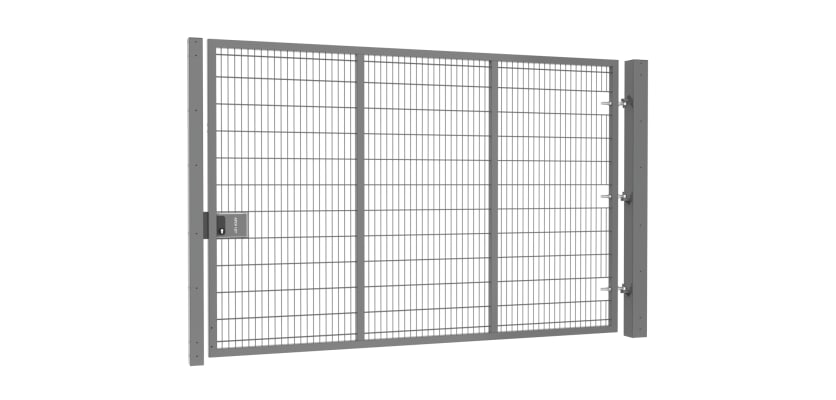

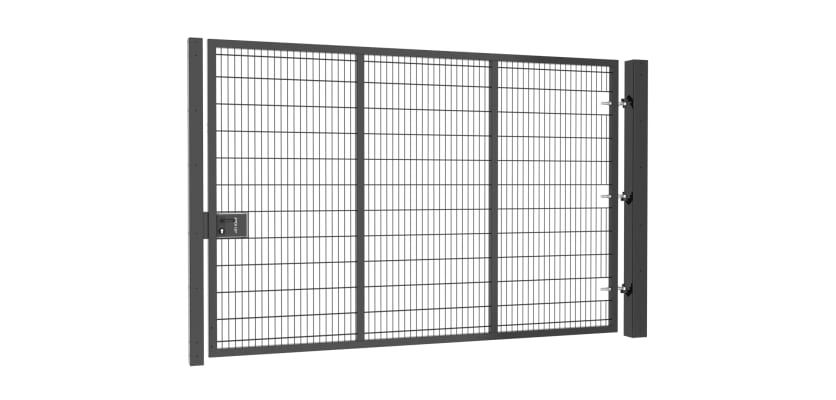

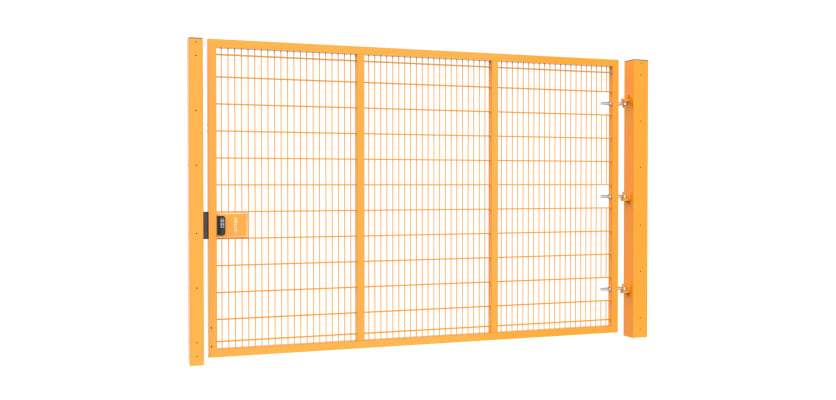

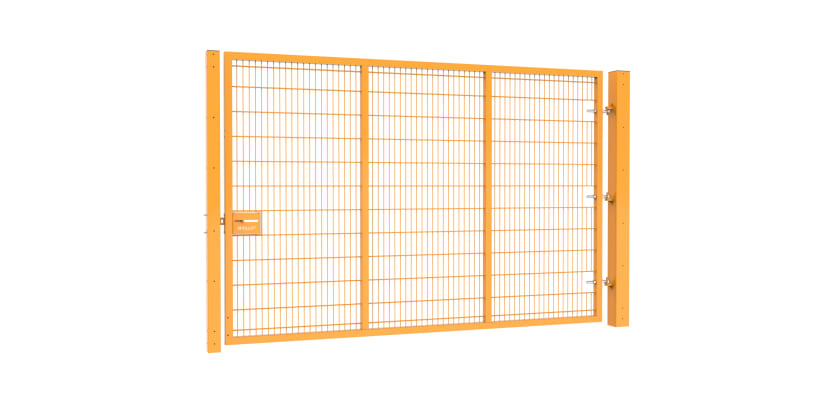

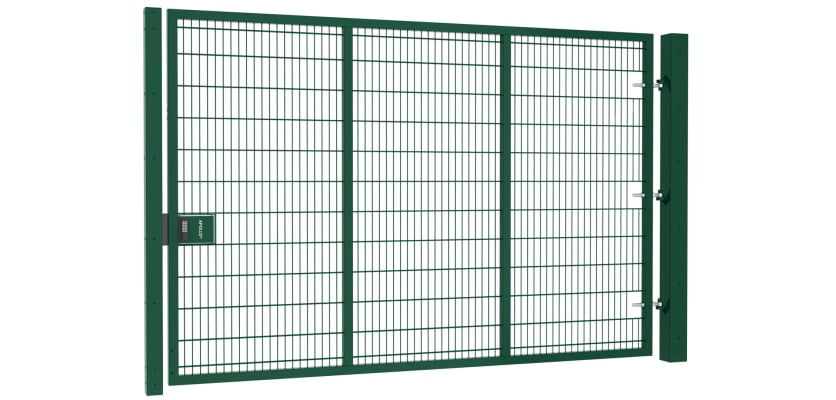

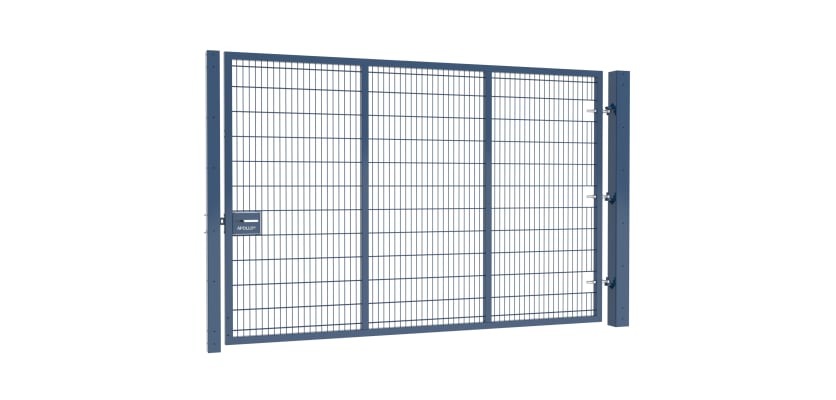

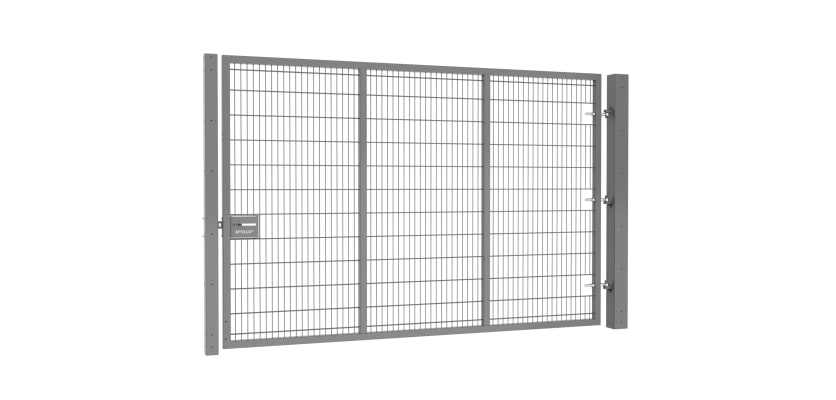

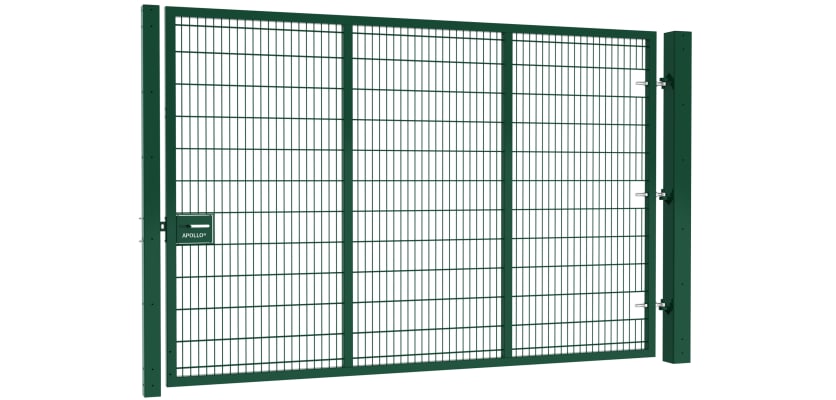

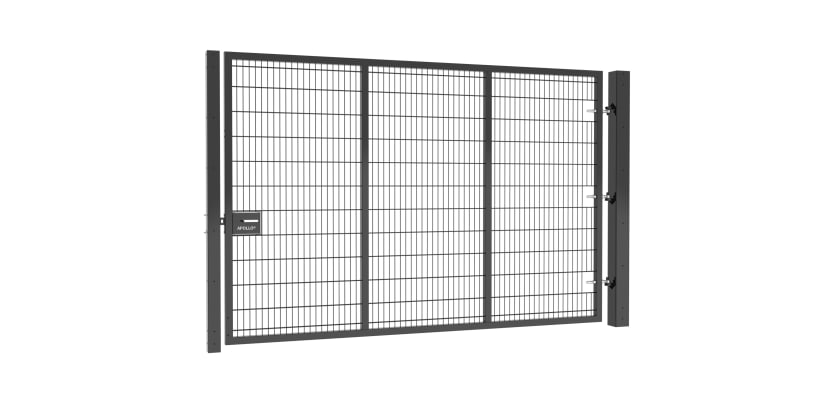

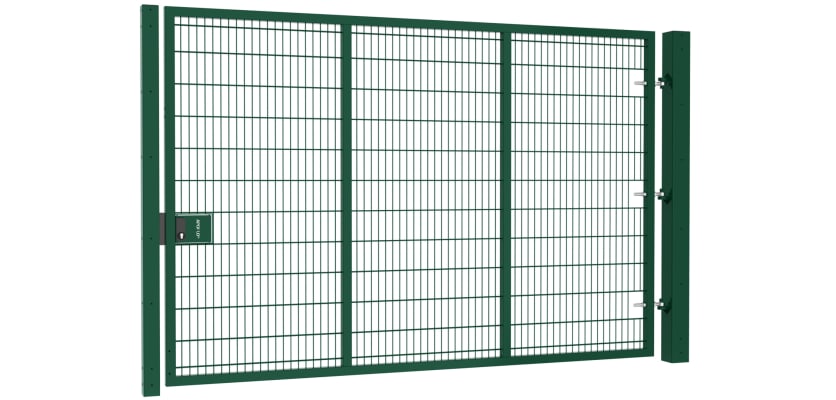

Apollo® 2.0m High x 5.0m Wide 868 Twin Mesh Single Leaf Gate Kit
Product Description
Apollo® 2.0m High x 5.0m Wide 868 Twin Mesh Single Leaf Gate Kit
The Apollo 2.0m High x 5.0m Wide 868 Twin Mesh Single Leaf Gate Kit is a premium, heavy-duty access solution designed for large vehicle entry points, high-security perimeters, and commercial-grade applications. With its expansive 5.0-metre single leaf width, this gate provides secure, unrestricted access for wide-load vehicles, plant machinery, and operational fleets.
Purpose-built to integrate with 868 twin wire mesh fencing systems, the Apollo gate offers a high level of durability, visibility, and protection—making it the ideal choice for industrial estates, distribution hubs, construction sites, and public infrastructure zones.
868 Twin Wire Mesh: Superior Strength and Anti-Climb Design
This gate features 868 twin mesh construction, comprising twin 8mm horizontal wires paired with a 6mm vertical wire. This configuration creates a rigid, vandal-resistant structure that’s virtually impossible to climb, cut, or distort—delivering outstanding perimeter integrity and long-term security.
The mesh pattern also allows for clear CCTV visibility, supporting surveillance systems and security personnel with unobstructed sightlines.
5.0m Wide Single Leaf: Optimised for Large Vehicle and Equipment Access
At a substantial 5.0 metres wide, this gate is ideally suited for:
- Articulated trucks and HGVs
- Plant and agricultural machinery
- Forklift and lorry bays
- Emergency and utility access routes
- Construction site logistics
The 2.0 metre height acts as a visual and physical deterrent against trespassing, unauthorised access, and unwanted intrusion.
All components are hot-dip galvanised to ISO 1461 standards, ensuring maximum resistance to rust and corrosion—ideal for year-round outdoor performance.
Ideal for Commercial and Industrial Perimeter Security
Whether you're upgrading an existing entrance or installing a new access point, this gate delivers reliable performance in:
- Warehousing and distribution centres
- Industrial and manufacturing plants
- Power and utility compounds
- Educational campuses and sports facilities
- Government and council infrastructure
- Construction and demolition sites
Key Features
- Dimensions: 2.0m High x 5.0m Wide
- Mesh Type: 868 twin wire (6mm vertical, twin 8mm horizontal)
- Finish: Hot-dip galvanised to ISO 1461
- Gate Type: Single Leaf
- Includes: Gate panel, posts, hinges, latch, drop bolt, fixings
- Security: Strong mesh, lockable latch, anti-climb design
- Compatibility: Designed for use with 868 mesh fencing systems
Why Choose the Apollo 2.0m x 5.0m Twin Mesh Gate?
When your site requires maximum-width access and top-tier security, the Apollo 2.0m High x 5.0m Wide Single Leaf Mesh Gate delivers with strength, safety, and durability. Its robust twin wire mesh, wide single-leaf span, and all-in-one kit design make it a dependable choice for securing busy commercial or industrial properties.
Our Apollo gates comply with the BS EN 12604 safety standard by incorporating a three-hinge system. This engineering requirement prevents gate failure in the event of a single hinge breaking, thus ensuring operational safety
Built for demanding environments. Ready to perform. Trusted for protection.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 2000mm |
| Access Width | 5000mm |
| Total Width | 5450mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
