Apollo® 1.8m High x 3.5m Wide 868 Twin Mesh Single Leaf Gate Kit
Product Description

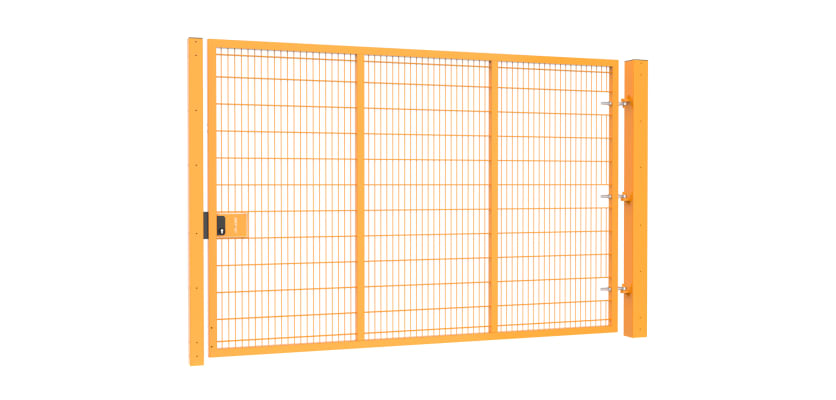

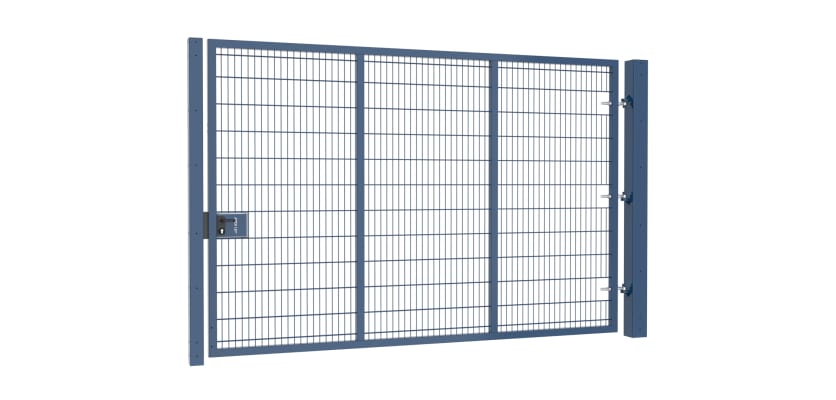

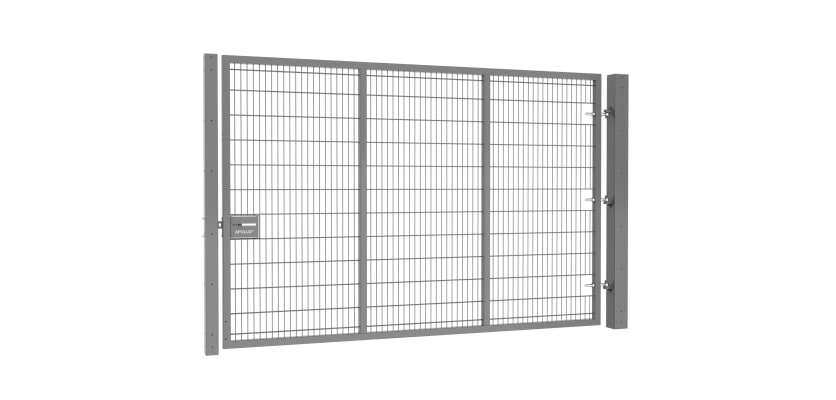

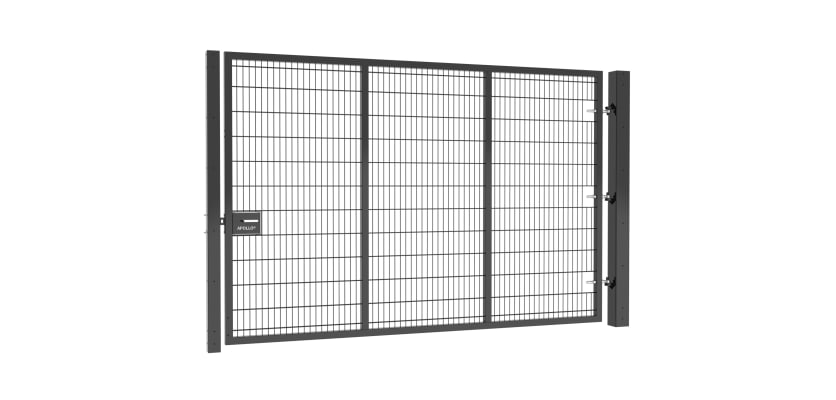

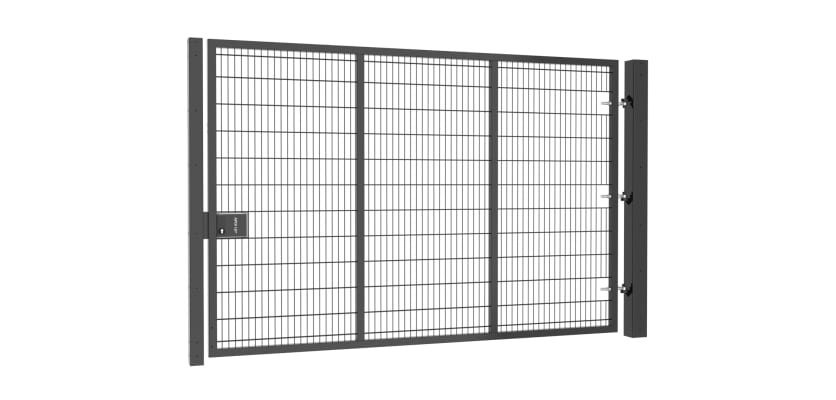

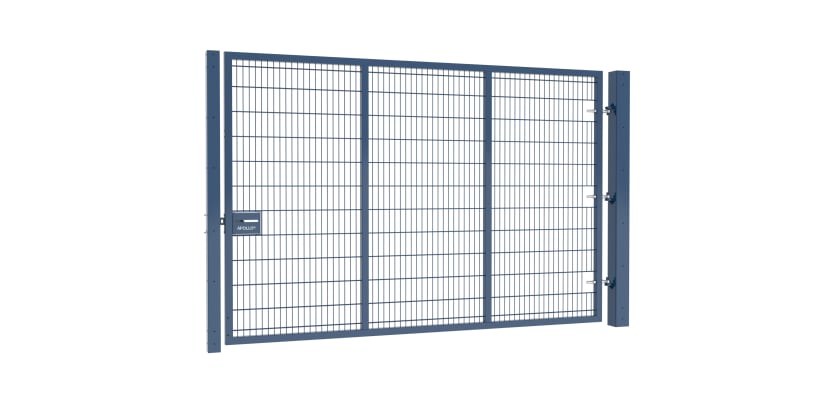

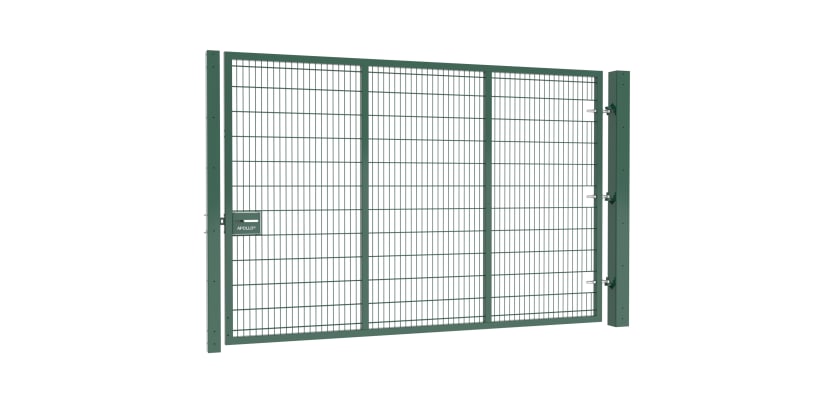

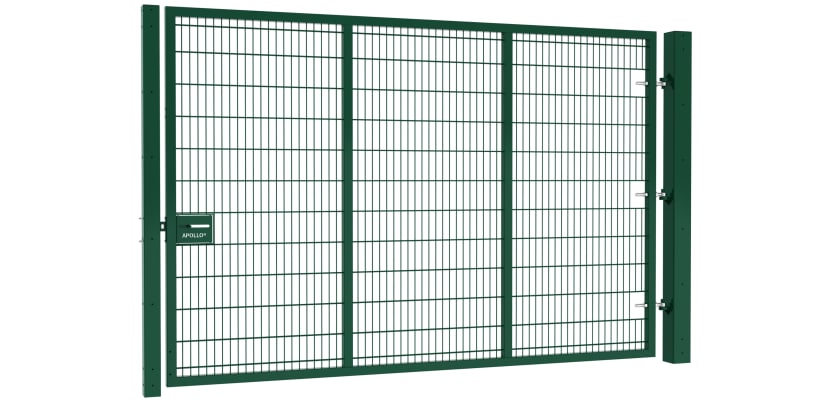

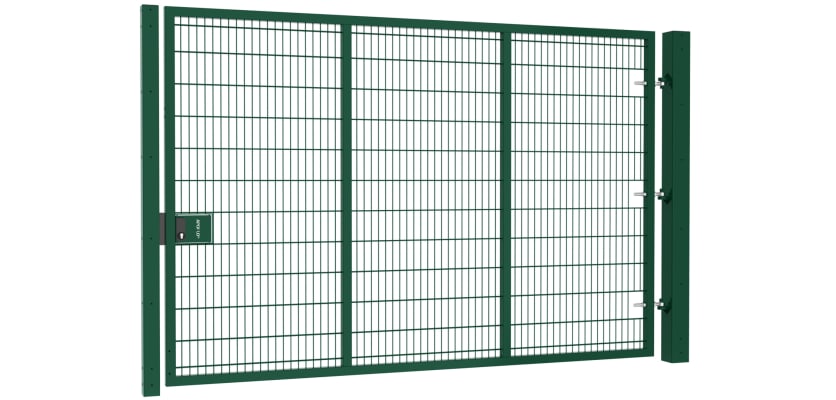

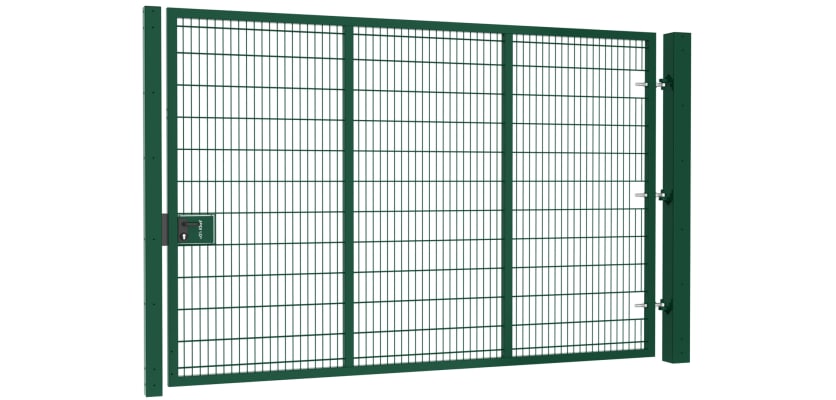

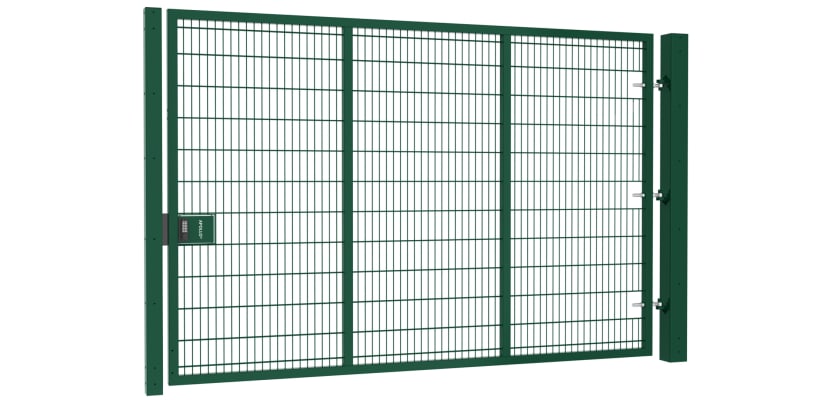

Apollo® 1.8m High x 3.5m Wide 868 Twin Mesh Single Leaf Gate Kit
The Apollo® 1.8m x 3.5m Single Leaf 868 Twin Mesh Gate Kit is built to offer a strong, safe and secure access point for locations requiring extra clearance, whether for service vehicles, multi-user access lanes, or high-traffic pedestrian zones. Its tall frame and 3.5m width make it suitable for use in environments such as schools, commercial properties, parks, and industrial estates.
With its height, robust steel build, and robust mesh design, this gate helps deter intruders while supporting long-term, low-maintenance performance across a range of site conditions.
Key Features & Benefits
868 Twin Mesh Infill
This gate features 868 twin wire mesh, made from two 8mm horizontal wires with a 6mm vertical wire running in between them. The result is a tough, tamper-resistant panel that stands up to cutting, impact, and vandalism attempts.
The openings within the mesh panel are small enough to make ineffective foot and finger holds for potential intruders attempting to gain access to your site by climbing. The apertures are still large enough, however, to provide a high level of visibility for additional security systems such as CCTV.
Durable Steel Frame & Professional Finish
Manufactured from high-grade pre-galvanised steel, the frame is finished with a polyester powder coating that resists corrosion, wear, and weather damage. Available in a wide selection of RAL colours, this finish allows you to match your gate to existing fencing or create a visually distinctive entrance.
All corners of the gate leaf are neatly mitred, eliminating sharp edges and giving the gate a smooth, professional finish. This also helps improve on-site safety for staff and visitors alike.
Locking Drop Bolt
Included as standard is a locking drop bolt, designed to provide secure positioning of the gate leaf when open or closed:
- Keeps the gate securely shut when not in use, reducing the chance of forced entry.
- Allows the gate to be safely held open, especially useful for deliveries, equipment movement, or prolonged foot traffic.
This feature is particularly important for wider gates, where added stability and control are essential for both safety and site operations.
Modular, Site-Friendly Installation
Designed as part of a fully modular system, the Apollo® gate is quick to install and compatible with a variety of mesh fencing types:
- Universal Handing: Install to open left or right on-site without needing to pre-select the handing.
- Pre-Drilled Fixing Points: All mounting holes are precision-drilled for fast, efficient installation of hardware and accessories.
- Plastic Caps and Plugs Included: These keep out debris and water while maintaining a clean, professional look.
The gate is fully compatible with 868, 656 and 358 mesh fencing, ensuring continuity in your perimeter security solution.
Suitable for A Variety of Ground Types
Whether your gate will be installed on concrete or natural ground, you can select the appropriate post type:
- Bolt-Down Posts: Best for hardstanding areas such as concrete or tarmac. Requires 4x M16 x 125mm ground anchor bolts per post (sold separately).
- Dig-In Posts: Ideal for turf or soft ground. Use with Post Mix to secure in place (please see recommended quantities when placing your order).
Triple Hinge Support System
This 3.5m-wide gate includes a triple hinge arrangement to improve weight distribution and operational safety. Should one hinge fail, the remaining two are capable of bearing the gate’s weight, helping prevent injury or damage. This system also allows for smoother movement of the larger gate leaf.
What's Included
Your Apollo® 1.8m x 3.5m Gate Kit comes with:
- 1 x Gate Leaf – 1.8m high x 3.5m wide
- 1 x Hinge Post
- 1 x Receiver Post
- 1 x Slider Kit
- 1 x Locking Drop Bolt
- 3 x Adjustable Gate Eyes
- Plastic Inserts for Posts and Gate Frame
Enhance access control by adding a Gatemaster locking system, compatible with all Apollo® mesh gate models. Choose from mechanical or digital options depending on your site’s security needs.
Need Assistance?
Have a question or need help selecting the right gate for your site? Our experienced team is here to help with expert advice and support. Please get in touch with us via phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 3500mm |
| Total Width | 3900mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 3500mm |
| Total Width | 3900mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
