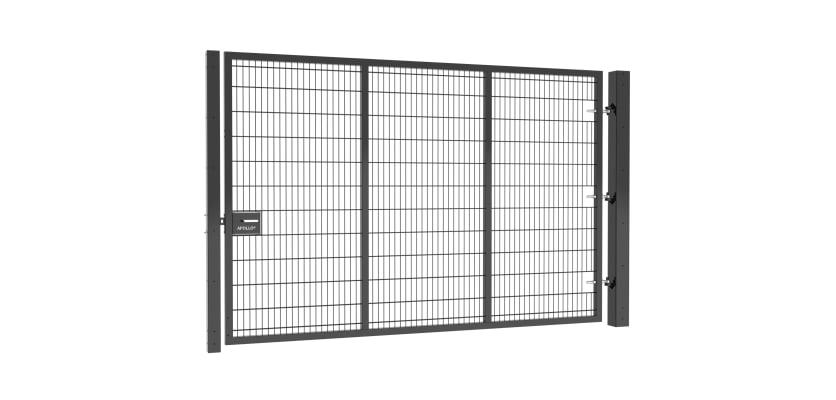

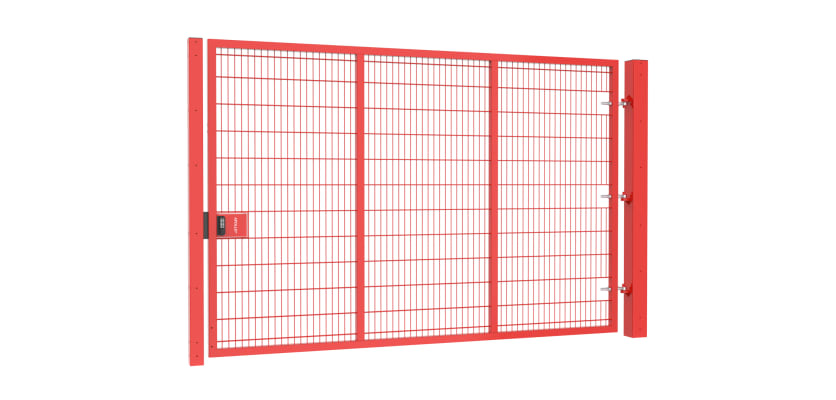

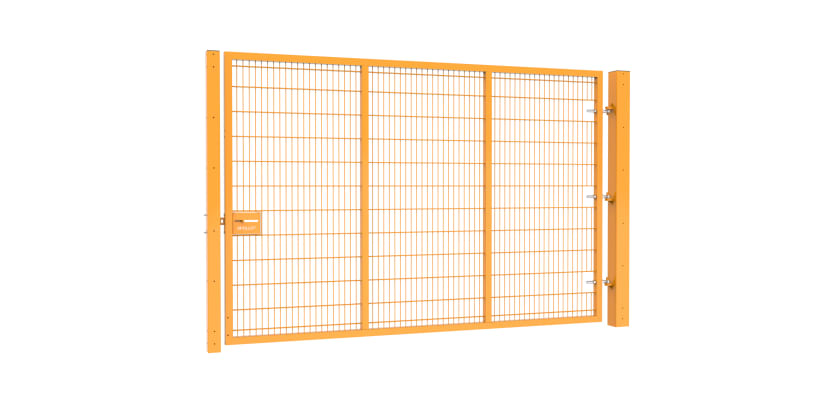

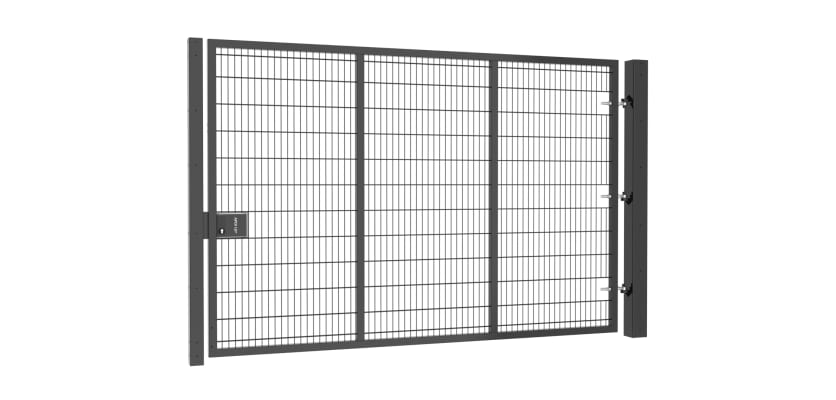

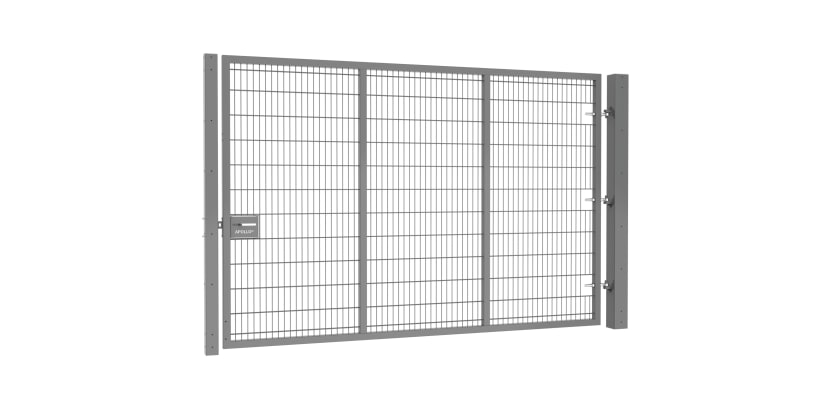

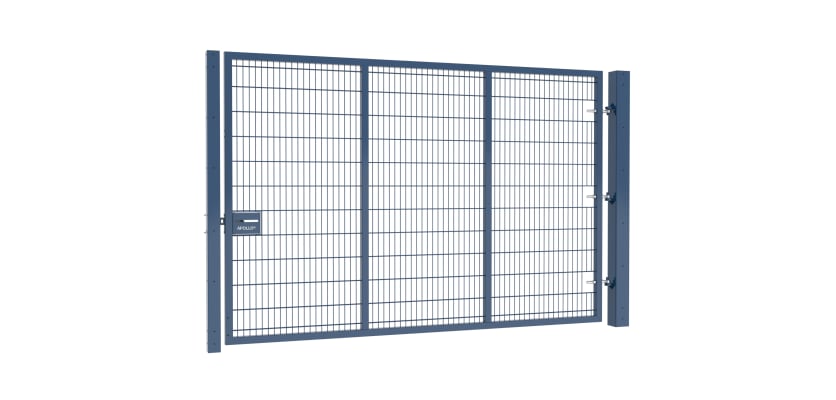

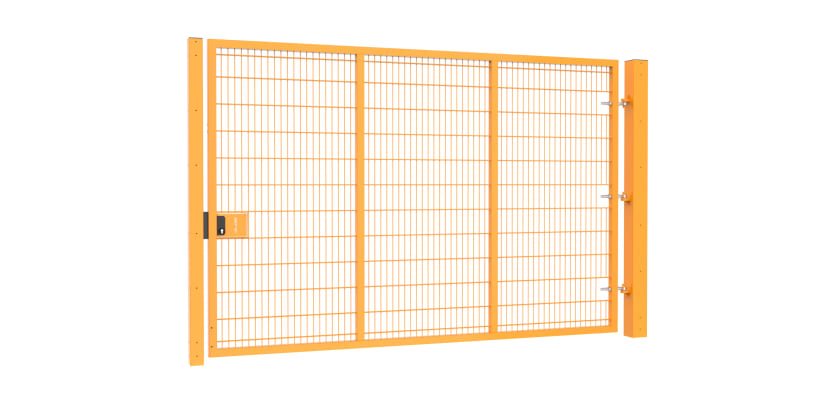

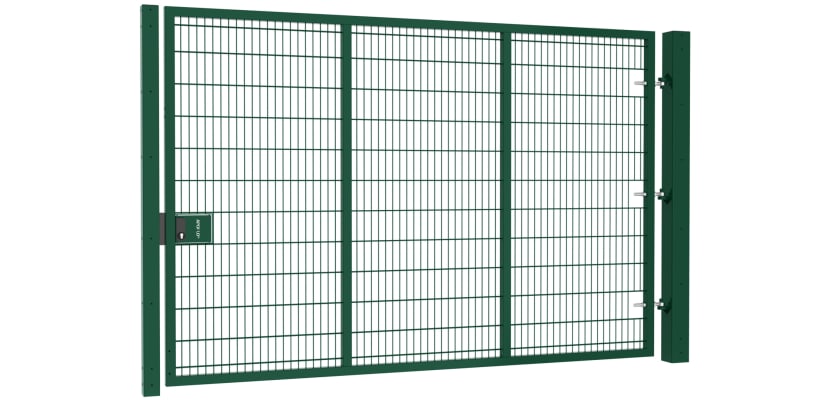

Apollo® 1.5m High x 4.0m Wide 868 Twin Mesh Single Leaf Gate Kit
Product Description

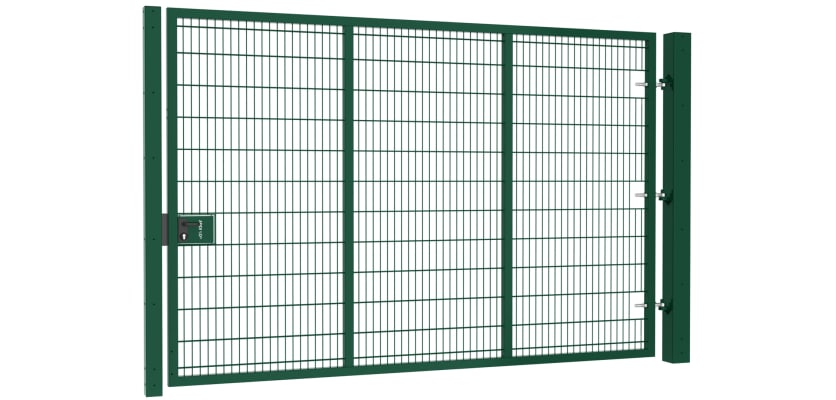

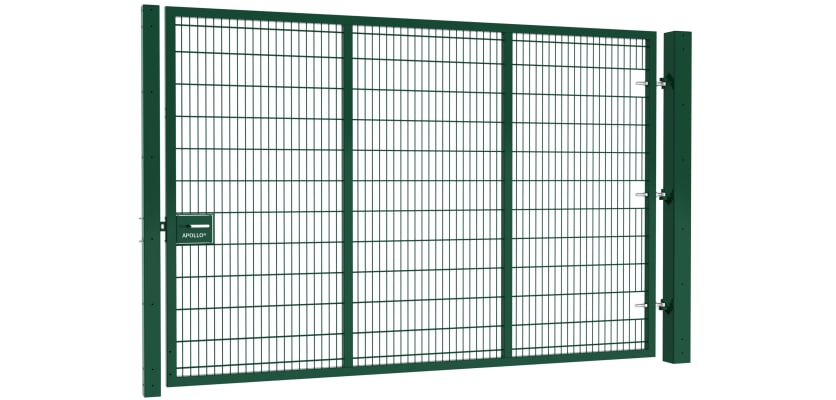

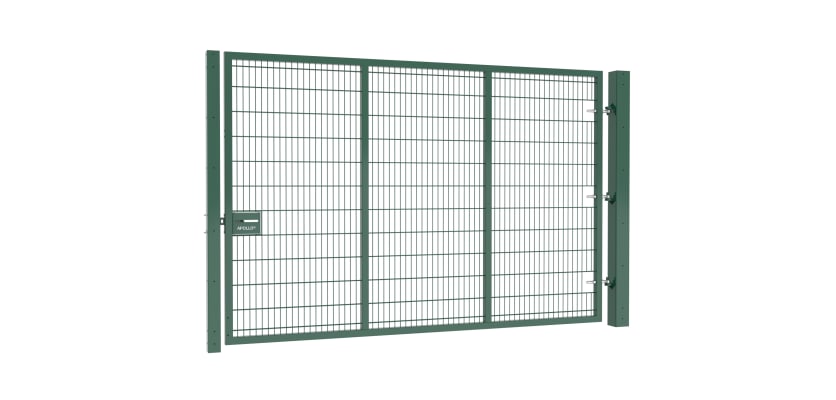

Apollo® 1.5m High x 4.0m Wide 868 Twin Mesh Single Leaf Gate Kit
When managing access to a secure outdoor space, having a strong and wide gate is essential, especially in areas with high foot traffic or where small equipment needs to pass through regularly. The Apollo 1.5m High x 4.0m Wide 868 Twin Mesh Single Leaf Gate Kit is designed exactly for this purpose. Offering a robust build and wide clearance, this gate provides a safe, reliable entry point for a wide range of low to medium security settings. It integrates easily into existing fencing systems and is ideal for public and private spaces alike.
Whether it’s being installed at a school, park, industrial site, or sports facility, this gate combines durability, security, and versatility, making it a long-lasting access solution for high-traffic environments.
Key Features
- 868 Twin Mesh Panel Design: The gate’s infill uses a 868 twin wire mesh, constructed from 6mm vertical wires and twin 8mm horizontal wires. This heavy-duty design is rigid, anti-climb, and highly resistant to cutting, helping to protect your premises from unwanted access.
- Extra-Wide 4.0m Single Leaf Access: The 4.0m width offers a large opening for wide pedestrian traffic or for moving equipment such as push trolleys, grounds maintenance tools, or bikes. Ideal for areas where wide clearance is important but a double gate isn’t required.
- Durable Steel Frame with Mitred Corners: The gate is built with a heavy-duty steel frame featuring mitred corners for increased strength and longevity. This ensures the structure remains stable and secure, even with frequent use.
- Pre-Galvanised & Powder Coated Finish: Fabricated from pre-galvanised steel to BS EN 10346 and powder coated to BS 13438, the gate is resistant to rust and corrosion. The powder coating also provides a clean, attractive finish and is available in a choice of standard RAL colours, with custom colours on request.
- Flexible Hanging Options: The gate is designed to be universally hung, meaning it can be installed to open either to the left or right to suit the layout of your site.
- Secure Modular Latch System: Supplied with a sliding latch that can be padlocked, this gate offers simple yet effective security. For higher security needs, it can be upgraded with a digital lock or quick-exit digital locking system.
- Installation Options to Suit Your Site: Choose between bolt down or dig in posts, depending on whether the gate is being fitted on a hard surface or in soft ground.
- BS 12604 Compliant: For enhanced safety and your peace of mind, our Apollo gates are equipped with three hinges. This crucial design feature ensures the gate will not detach or fall should one hinge break, adhering to the rigorous safety protocols of the BS EN 12604 standard.
Applications
The Apollo 1.5m High x 4.0m Wide 868 Twin Mesh Single Leaf Gate Kit is ideal for areas where wide, secure access is needed. Schools and colleges can use this gate to control the movement of students and staff, while allowing easy entry for groundskeeping or equipment. In parks, playgrounds, and public green spaces, the gate allows safe access for families, maintenance teams, and event organisers. Sports grounds and leisure centres benefit from its wide opening for players and gear. It’s also well suited to commercial premises and light industrial areas that need secure, practical pedestrian entry without compromising boundary security.
With its reliable construction, wide access, and customisable security features, this Apollo gate kit is a high-quality, long-term access solution for many outdoor spaces.
Included In This Kit
Everything you need to erect your new single leaf gate is included in this kit with the exception of post mix and ground anchor bolts. We understand how important it is to have a uniform look, which is why we also have a range of mesh fencing accessories that we sell separately, so you can amend your fencing system when necessary.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 1500mm |
| Access Width | 4000mm |
| Total Width | 4400mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
Specifications & Downloads
| Height Above Ground | 1500mm |
| Access Width | 4000mm |
| Total Width | 4400mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
