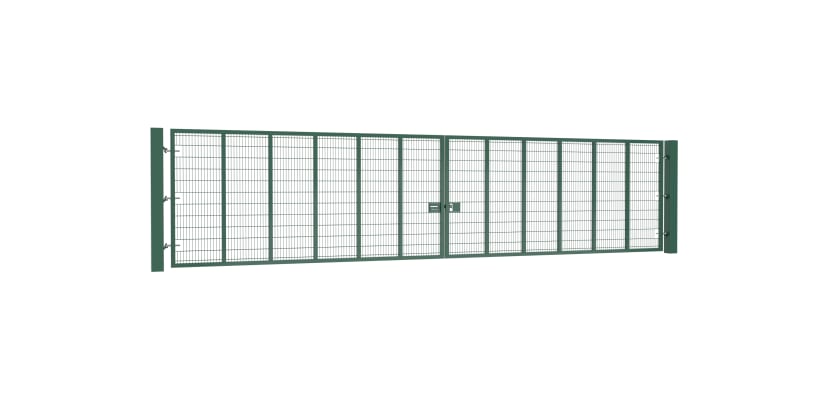

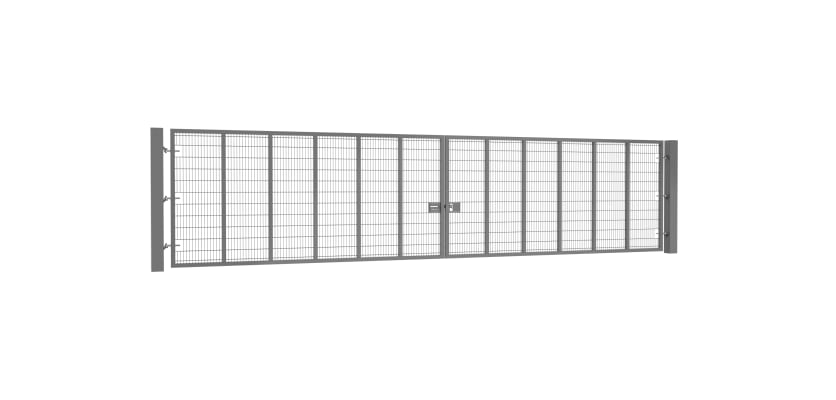

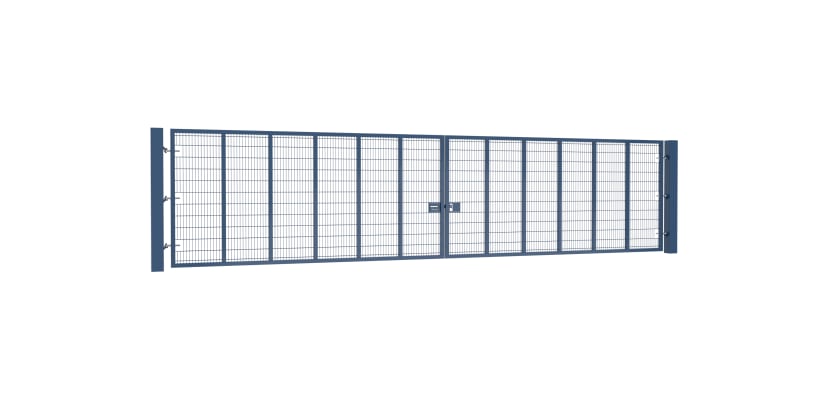

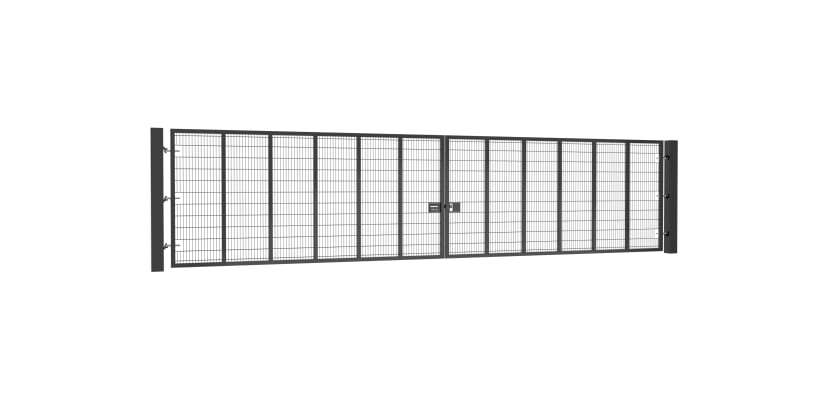

Apollo® 1.8m High x 7.0m Wide 868 Twin Mesh Double Leaf Gate Kit
Product Description
Apollo® 1.8m High x 7.0m Wide 868 Twin Mesh Double Leaf Gate Kit
The Apollo 1.8m High x 7.0m Wide 868 Twin Mesh Double Leaf Gate Kit offers a secure and durable access point for high-traffic areas requiring controlled entry for both pedestrians and light to medium vehicles. Its robust construction, clean aesthetics, and compatibility with modern mesh fencing systems make it a versatile choice for a wide range of public, commercial, and industrial environments.
Built using 868 twin wire mesh, featuring 6mm vertical wires overlaid by 8mm horizontal wires, this gate provides exceptional rigidity and resistance to damage from tampering, cutting, or impact. The open mesh design allows clear visibility through the gate, supporting effective site monitoring without compromising the visual appeal of your perimeter fencing.
Typical Applications
- School and university perimeters
- Public playgrounds and parks
- Sports and recreation grounds
- Industrial and warehouse entrances
- Commercial sites and logistics yards
- Local authority and council-managed land
- Utility compounds and service areas
Standing at 1.8 metres in height and offering a total clear width of 7.0 metres (3.5m per leaf), this double gate is ideal for accommodating service vehicles, maintenance equipment, and larger pedestrian flows. The universal gate leaves can be hung on either side, left or right, offering greater flexibility during installation and allowing adaptation to site layout changes if needed.
The Apollo gate frame features mitred corners, which reinforce the structural integrity of the unit and enhance its durability, especially important for wider gates like this one. These corners not only strengthen the gate but also provide a neat, professional finish, adding to the overall appearance of your fencing system.
Designed for longevity, the gate is made from pre-galvanised steel to BS EN 10346 for corrosion resistance, and then polyester powder coated to BS 13438, adding another layer of protection and colour. Available in a wide selection of RAL colours, this finish ensures your gate can blend with or complement your existing fencing and site branding.

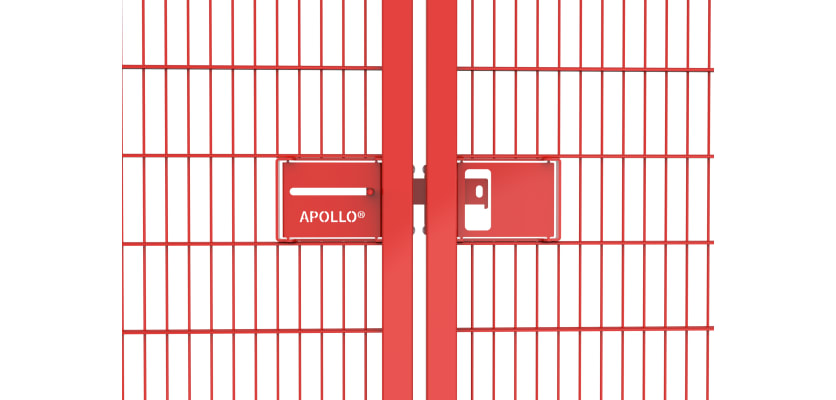

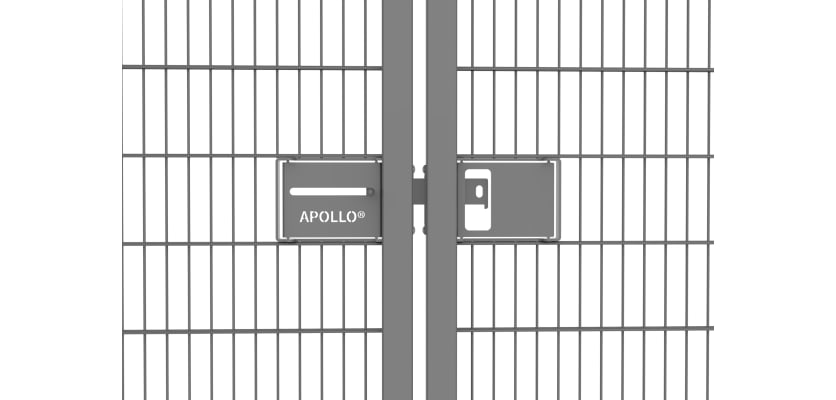

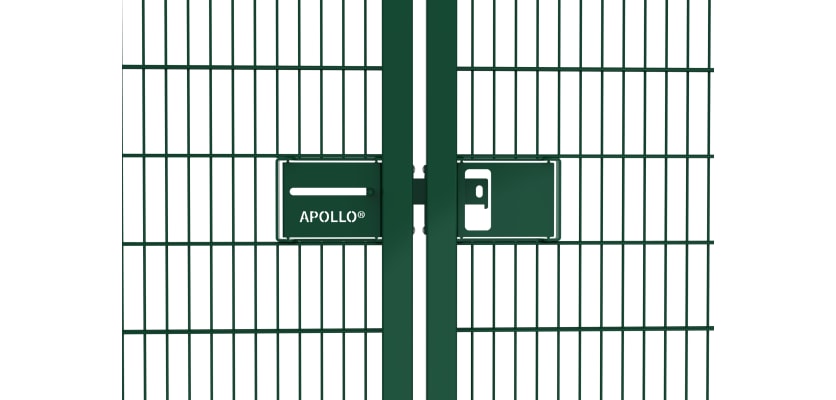

Security is a core feature of the Apollo system. The gate includes a sliding latch, which can be secured with a padlock or upgraded with digital security locking systems or quick-exit locks for more sensitive areas. Drop bolts offer additional stability and allow the gate to be held open or securely locked in place.
The Apollo gate is compatible with a wide variety of mesh fencing systems, including 868 twin wire, 656 mesh, V mesh, and other industry-standard panels, making it easy to integrate into both new and existing installations. You can choose from bolt down or dig in post options, depending on your ground type and installation preference.
The Apollo 1.8m x 7.0m Twin Mesh Double Leaf Gate Kit delivers the perfect combination of durability, security, and visual appeal, making it a trusted access solution for projects where strength and appearance matter.
Included In This Kit
Everything you need to erect your new single leaf gate is included in this kit with the exception of post mix and ground anchor bolts. We understand how important it is to have a uniform look, which is why we also have a range of mesh fencing accessories that we sell separately, so you can amend your fencing system when necessary.
Happy To Help
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 7000mm |
| Total Width | 7570mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 7000mm |
| Total Width | 7570mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
