Apollo® 2.0m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

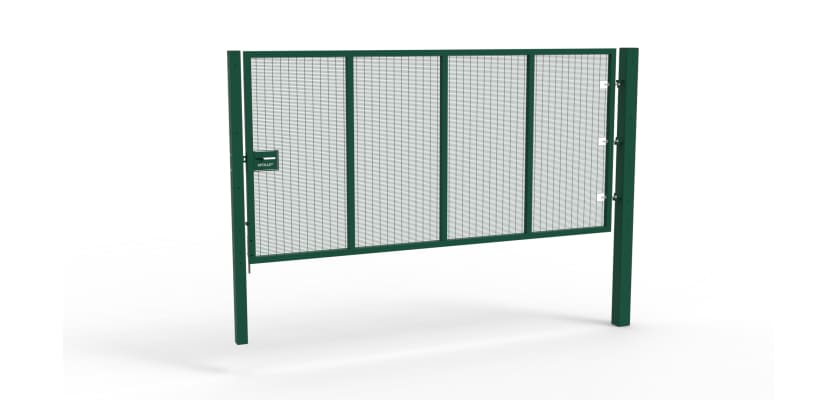

Apollo® 2.0m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
The Apollo® 2.0m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit is a robust and reliable solution for creating extra-wide, secure access points while maintaining a high-security perimeter. Engineered from anti-climb 358 mesh, this gate is designed to deter intrusion, withstand heavy use, and integrate seamlessly with a variety of mesh fencing systems.
Manufactured using 4mm diameter horizontal and vertical steel wires welded at every intersection, the 358 mesh creates a dense, tamper-resistant panel that is almost impossible to scale or cut. Its open yet secure structure ensures clear visibility, making it ideal for sites with CCTV surveillance.
The gate is constructed from pre-galvanised steel to BS EN 10346 standards and finished with a high-quality polyester powder coating to BS EN 13438. This dual-protection process provides exceptional resistance to corrosion, weather damage, and wear over time, even in demanding outdoor environments.
Its universal hanging design allows the gate to be installed to open either left or right, and the modular latch system means you can use the supplied sliding latch or easily upgrade to a digital lock, key lock, or Gatemaster lock.
Key Features
- Dimensions: 2.0m High x 4.5m Wide, suitable for extra-wide pedestrian and light vehicle access.
- High-Security 358 Mesh: Anti-climb welded steel mesh for exceptional intrusion resistance.
- Durable Frame Construction: Fully welded mitred steel corners for structural strength and a professional finish.
- Weather Protection: Pre-galvanised to BS EN 10346 and polyester powder coated to BS EN 13438.
- Universal Hanging: Can be hinged for left- or right-hand opening.
- Modular Locking Options: Supplied with sliding latch; compatible with padlocks, digital locks, or Gatemaster locks.
- BS EN 12604 Compliant: Two heavy-duty hinges supplied, with pre-drilled hole for gate restrainer (restrainer sold separately).
- Post Options: Dig-in posts for softer ground or bolt-down posts for hard surfaces.
- Wide Mesh Compatibility: Works with 358, 358D, 868, 656, and other mesh fencing types.
- Security Ready: Designed for straightforward access control in high-security settings.
Applications
Perfect for sites requiring wide-span access without sacrificing security, including commercial premises, schools, public buildings, transport hubs, utility facilities, and industrial sites. The 4.5m width makes it suitable for allowing access to maintenance vehicles, equipment, or large pedestrian flows while still providing a strong deterrent to unauthorised entry.
Contact Us
If you do have any questions, please do not hesitate to speak to one of our sales team by calling 01283 512 111 or by using the online chat facility, and they will be happy to help you.
Specifications & Downloads
| Height Above Ground | 2000mm (above ground) |
| Access Width | 4500mm |
| Total Width | 4950mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
Specifications & Downloads
| Height Above Ground | 2000mm (above ground) |
| Access Width | 4500mm |
| Total Width | 4950mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 2.0m Clamp Bar [30x5mm @ 2030mm] | 2 |
| M8 x 100mm Nuts and Bolts | 16 |
