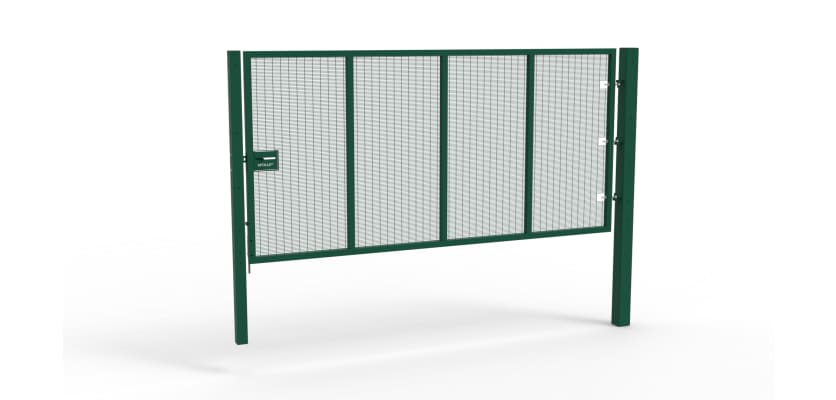

Apollo® 2.0m High x 4.0m Wide 358 Prison Mesh Single Leaf Gate Kit
| Height Above Ground | 2000mm |
| Access Width | 4000mm |
| Total Width | 4400mm |
| Hinge Post Size | 150 x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
Apollo® 2.0m High x 4.0m Wide 358 Prison Mesh Single Leaf Gate Kit
The Apollo® 2.0m High x 4.0m Wide 358 Prison Mesh Single Leaf Gate Kit is a high-security access solution for sites requiring an extra-wide entrance without compromising perimeter protection. Its robust anti-climb mesh construction is engineered for maximum strength and durability, making it ideal for environments where security is a top priority.
The 358 mesh is formed from 4mm thick horizontal and vertical steel wires welded at each intersection, creating a strong, tamper-resistant panel that is almost impossible to scale or cut. The design allows excellent visibility, ensuring compatibility with CCTV surveillance while maintaining a formidable physical barrier.
Manufactured from pre-galvanised steel to BS EN 10346 and finished with a polyester powder coating to BS EN 13438, this gate is built to withstand corrosion, heavy use, and harsh weather. Its universal hanging design allows left- or right-hand opening, while the modular latch system supports various locking options including sliding bolts, padlocks, and Gatemaster or digital locks.
Key Features
- Dimensions: 2.0m High x 4.0m Wide – suitable for wide pedestrian and light vehicle access.
- High-Security 358 Mesh: Anti-climb design with 4mm welded steel wires for exceptional cut resistance.
- Fully Welded Construction: Enhanced rigidity and vandal resistance for long-term performance.
- Weather-Resistant Finish: Pre-galvanised to BS EN 10346 and powder coated to BS EN 13438.
- Universal Hanging: Fits left- or right-hand opening to suit installation needs.
- Modular Latch System: Standard sliding latch can be replaced with key, digital, or Gatemaster locking systems.
- BS EN 12604 Compliant: Two heavy-duty hinges included with pre-drilled restrainer hole (gate restrainer sold separately).
- Post Options: Choose dig-in for soil/grass or bolt-down for concrete/hardstanding.
- Wide Mesh Compatibility: Works seamlessly with 358, 358D, 868, 656, and many other mesh fencing types.
- Security Ready: Padlock compatible for straightforward access control.
Applications
Ideal for a variety of environments, this gate is well-suited for commercial premises, industrial facilities, public buildings, schools, transport hubs, and utility compounds. Its extra-wide leaf allows smooth access for maintenance vehicles, large equipment, or heavy pedestrian traffic while maintaining a high level of perimeter security.
