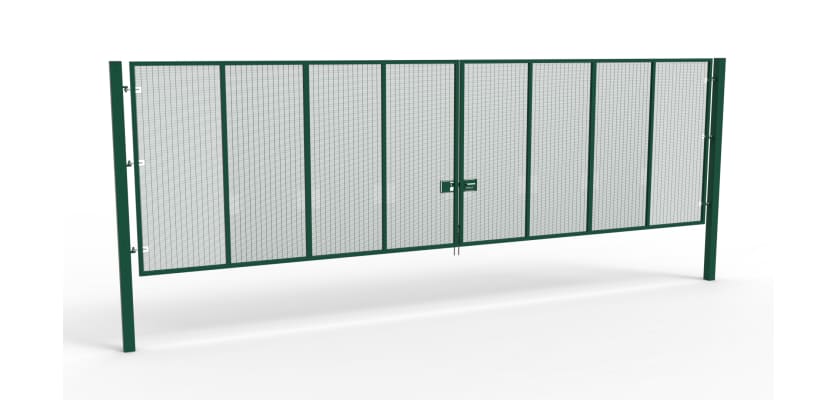

Apollo® 3.0m High x 10.0m Wide 358 Prison Mesh Double Leaf Gate Kit
| Height Above Ground | 3000mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 2 |
Apollo® 3.0m High x 10.0m Wide 358 Prison Mesh Double Leaf Gate Kit
When your site requires maximum-width access and top-tier security, the Apollo® 3.0m High x 10.0m Wide 358 Mesh Double Leaf Gate Kit is the ideal solution. With its commanding 3.0m height and expansive 10.0m span, this gate is purpose-built for large vehicles, high-traffic areas, and environments where reliable, long-lasting access control is critical.
Premium 358 Prison Mesh Security
This gate features our highly secure 358 wire mesh, renowned for its strength and anti-climb properties. The design combines vertical wires with horizontal wires, creating a rigid, cut-resistant surface that’s extremely difficult to tamper with.
The tight mesh spacing also deters objects from being passed through the gate, making it suitable for secure environments, while still maintaining excellent visibility, ideal for sites with CCTV or surveillance systems.
Engineered for Durability
Constructed from pre-galvanised steel to BS EN 10346 standards and finished with a durable polyester powder coating to BS EN 13438, this gate is built to withstand corrosion, UV damage, and general wear in even the most challenging outdoor conditions.
The smooth powder-coated finish is available in a variety of RAL colours, allowing you to coordinate the gate with your existing fencing, site branding, or surrounding architecture.
Built-In Safety and Compliance
Designed with safety as a priority, this gate features a triple hinge design, meeting:
- BS EN 12604 standards
- DHF guidelines to prevent gate leaf detachment in the event of a single hinge failure
This makes it ideal for high-traffic or public-facing environments where secure operation is a must.
Security and Access Control Options
- Supplied with a sliding latch that can be padlocked
- Fully compatible with digital access systems, keypads, or quick-exit locking solutions
- Drop bolts are included to secure each gate leaf in place
- Modular design allows for easy upgrades based on your access needs
Flexible Installation
Choose between bolt-down or dig-in post options, depending on whether you're installing into hardstanding surfaces (like concrete) or softer ground (like soil or gravel).
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
The kit includes all required components for a smooth installation process.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk. You can also speak to one of the team through the live chat system.
