3.0m High x 6.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description

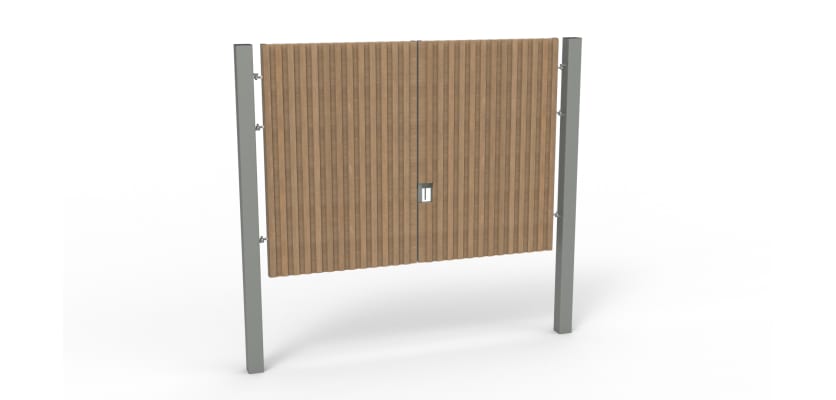

3.0m High x 6.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Representing the pinnacle of the AcoustiGuard® range, the 3.0m High x 6.0m Wide SR1 Gate Kit offers the ultimate combination of height, width, and certified performance. This flagship model provides a massive 6.0m opening for unrestricted access by oversized loads, paired with a maximum 3.0m height for unparalleled security and privacy. Supported by the strongest 150x150x5mm posts, this gate is delivered fully assembled, ready to serve as the main access point for the most secure and demanding locations, such as airports, military sites, and major distribution hubs.
What is LPS 1175?
This gate, with its LPS 1175 SR1 (A1) certification, should be viewed as a key component of a complete security ecosystem. On its own, it provides a formidable, tested barrier. When integrated with high-security fencing, CCTV, and access control systems, it creates a cohesive and layered defence system. The certification ensures that your gate, often the only dynamic part of a perimeter, meets a verified standard of resistance, preventing it from becoming a vulnerable point in your otherwise secure boundary.
Tested and Complies to BS EN 1794-1 and BS EN 1794-2
The combined effect of this gate’s compliance with BS EN 1794-1 and BS EN 1794-2 is total peace of mind. The structural design (Part 2) guarantees that this very large gate is fundamentally safe, stable, and durable, capable of withstanding extreme weather and the demands of constant use. The acoustic design (Part 1) ensures it is also environmentally responsible, effectively managing noise to meet regulatory requirements and maintain a good relationship with the surrounding community. This dual-certified approach delivers a complete solution without compromise.
Technical Aspects
Representing the pinnacle of the AcoustiGuard® range, this gate is engineered for maximum scale and is delivered fully assembled. It achieves an impressive final height of 3000mm and an unparalleled 6000mm access width for unrestricted passage. This flagship gate is anchored by formidable 150x150x5mm box section posts, ensuring absolute stability for its vast span. The primary leaf is configured as right-hand hung from an external viewpoint. The gate’s construction consists of a powerful hot-dip galvanised steel frame (ISO 1461) and a solid Tanalised UC4 timber face, delivering the highest level of security and acoustic performance available.
Contact Us
For a truly comprehensive, end-to-end solution for your most critical access point, look no further. Contact the First Fence team to discuss our flagship security and acoustic gate. You can call us on 01283 512 111 or email sales@firstfence.co.uk. We also have a live chat service you can use for immediate answers.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 3000mm [Installed] |
| Access Width | 6000mm |
| Box Sections of Posts | 150x150x5mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Eyebolts | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
