3.5m High x 3.0m Wide EchoAbsorb Absorbent Acoustic Fencing Kit
Use Our PostPro Calculation Service
Unsure if our recommended steel posts are right for you? Simply tell us about your site and height for an engineers report on post suitability:
| Height | 3.5m [Installed] |
| Width | 3.0m |
| Panel Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 365kg |
| Ground Fixing | Dig In |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| System Compliant To | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 71kg/m² [Excluding Posts] |
| Name | Quantity |
|---|---|
| EchoAbsorb Straight Boards [150mm x 22mm x 3.4m] | 20 |
| Timber Gravel Board [150mm x 75mm x 3.0m] | 1 |
| Capping Rail [3.0m x 175mm x 50mm > 38mm] | 1 |
| Horizontal Rail [75mm x 75mm x 3.0m] | 5 |
| Cover Strips [3.4m x 75mm x 22mm] | 33 |
| Noggings [0.6m x 75mm x 50mm] | 10 |
| Rockwool [1.2m x 0.6m x 75mm] | 12 |
| Membrane [4.0m x 4.05m] | 1 |
3.5m High x 3.0m Wide EchoAbsorb Absorbent Acoustic Fencing Kit
Please note that this kit does not include any fixings; you will need 64mm stainless steel nails compatible with your nail gun and two M10 x 150mm coach screws per rail.
Please be aware that we do not advise bolting down your Acoustic Fencing. For the best results, we recommend digging in Acoustic Fencing to help ensure site safety and wind loading.
Our 3.5m high EchoAbsorb Absorbent Acoustic Fencing Kit embodies this principle, offering a proven solution for noise control. It is available as a flexible loose-component kit for on-site construction or as convenient pre-assembled panels. Its versatility makes it an ideal choice for a wide range of sectors, including residential, commercial, industrial, and educational settings.
Features and Benefits

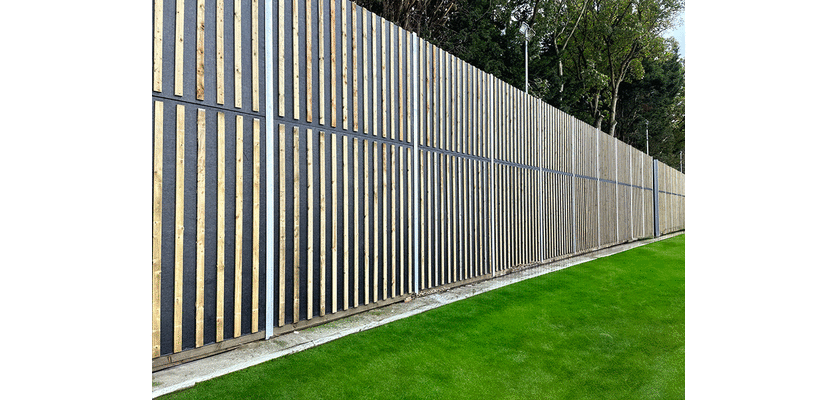

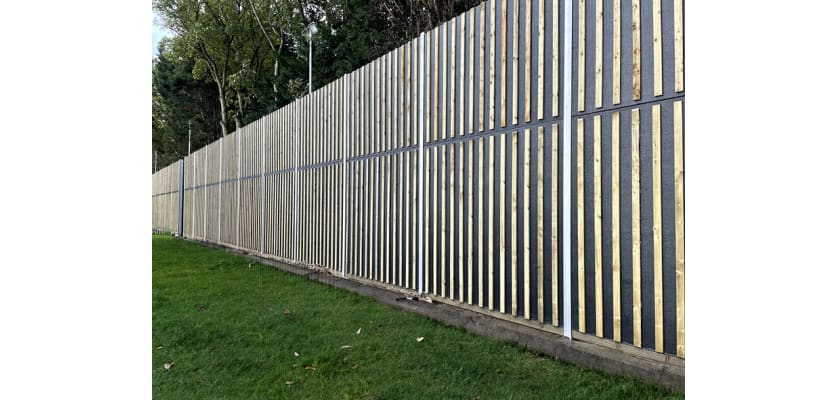

Our EchoAbsorb timber acoustic panels excel at absorbing and muffling unwanted noise. They are perfect for containing sound within a designated area. The two-part panels feature one side with sound-reflective vertical sawn boards and cover strips, and the other side with a protective membrane and rockwool for sound absorption.
The acoustic fencing can be installed with either steel or timber posts, both available from First Fence. The steel posts come with wooden wedges for installation in a dig-in-only format.

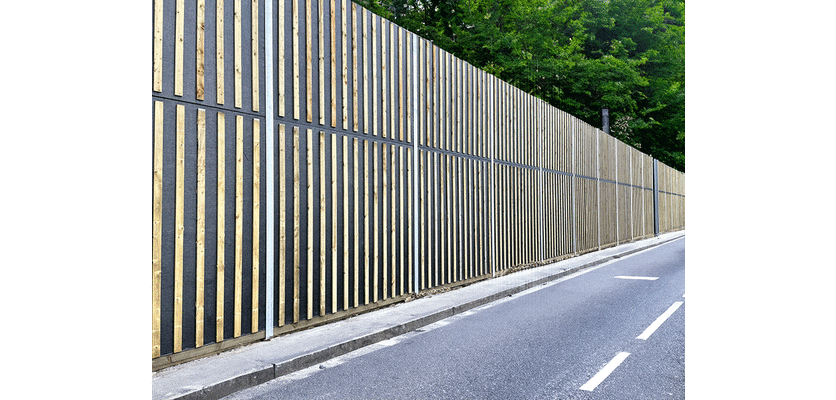

The EchoAbsorb Acoustic Fencing Kit provides a straightforward solution for local authorities managing traffic noise, builders reducing construction noise, and homeowners seeking peace and quiet.
Key Specifications
Acoustic Performance: The system has been independently tested by Salford University. It is certified to meet Highways England standard BS EN 1793 (Road Traffic Noise Reducing Devices) and complies with durability standards BS EN 1794-1 and BS EN 1794-2.
Material Construction: Manufactured from FSC-certified timber that is pressure-treated to UC4 Tanalised specification. The timber is surface-incised to maximise preservative penetration, making it suitable for ground contact.
Service Life: The fencing is designed to be maintenance-free and has a manufacturer-specified 30-year desired service life, subject to correct installation and site conditions.

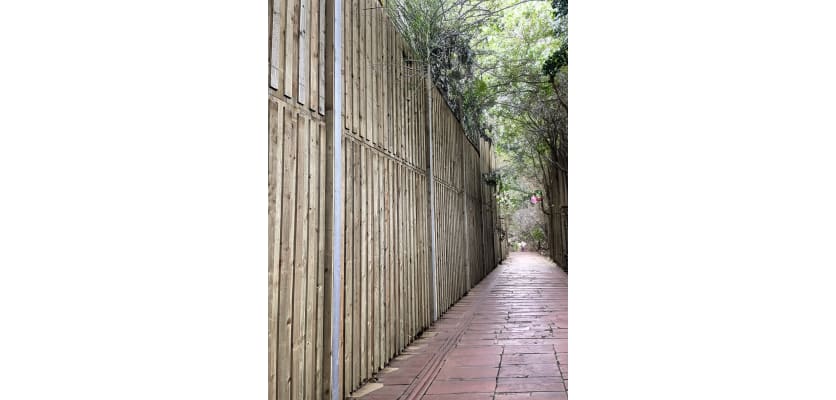

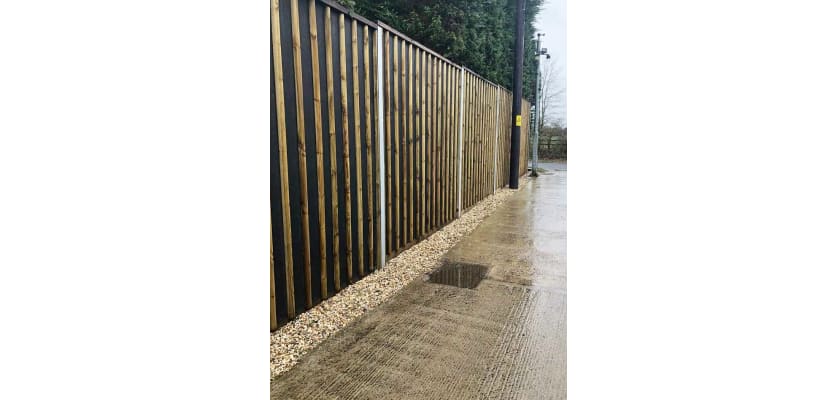

Finish and Function: The timber has a natural pale green finish which can be painted or stained with a breathable product. The solid panel construction also provides a high degree of visual privacy as an alternative to industrial-style fencing.
Kit and Installation Information
Kit Contents: Each loose kit contains all components required to assemble one 3.5m high x 3.0m wide fencing bay. This includes: EchoAbsorb Straight Boards, a Gravel Board, Capping and Counter Rails, Horizontal Rails, and Cover Strips.
Post Installation: The system requires a dig-in post installation. It is compatible with either timber posts or galvanised steel posts, which are available separately from First Fence. Steel posts are supplied with wooden wedges for installation.
Site Prerequisites: The intended fence line must be cleared of all vegetation. Panels should not be installed in locations where they may be subject to standing water. For wind loading suitability at a specific location, a structural engineer must be consulted.
Our EchoAbsorb Panels are available in heights from 1.8m to 10.0m and also in a 2.4m width format.
If you're looking for more timber acoustic fencing options, explore our EchoReflect and EchoGroove ranges. We also offer a range of Sound Absorption Barriers and accessories for temporary fencing.
Contact Us
If you have any questions about our timber acoustic fencing, please don't hesitate to contact us. Our friendly team of experts are happy to help, and can be reached by phone at 01283 512 111, or via our live chat service.
