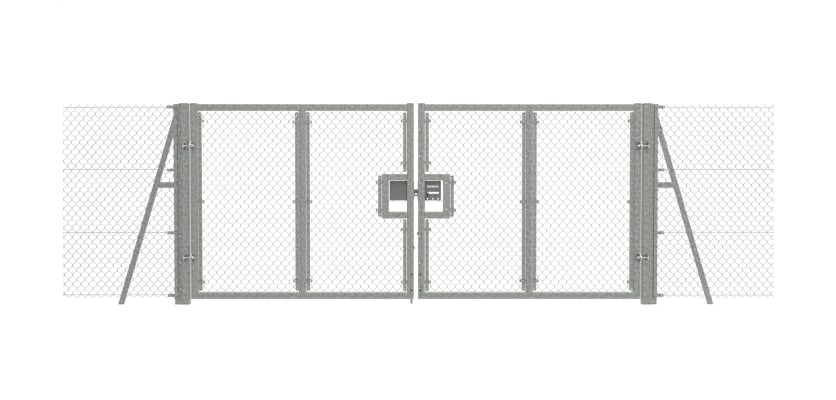

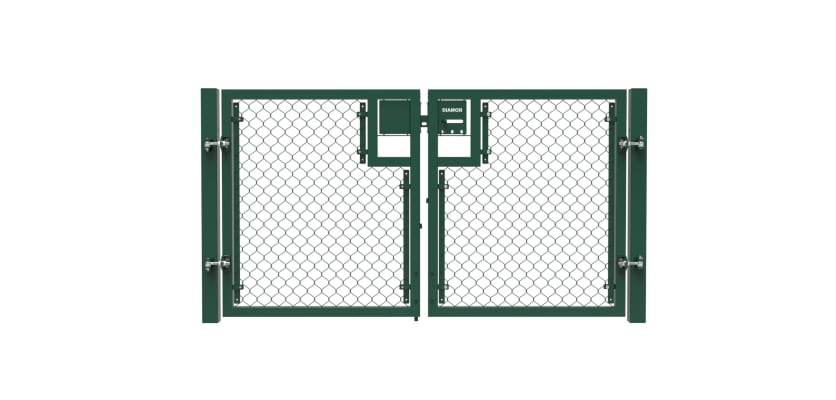

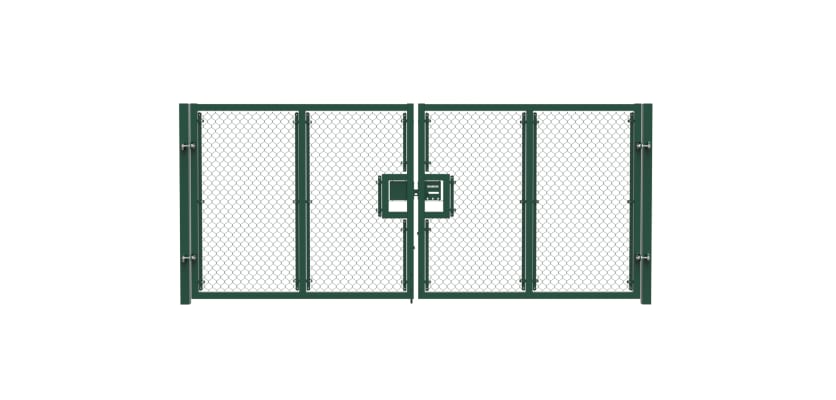

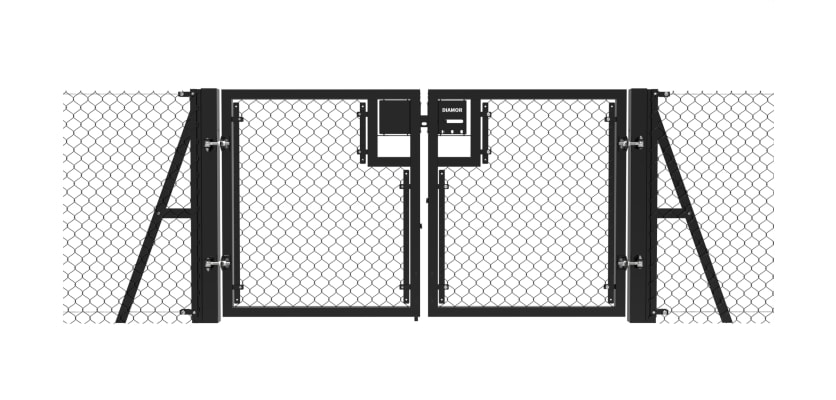

2.4m High Diamor™ Chain Link Double Leaf Gate Kit
Product Description

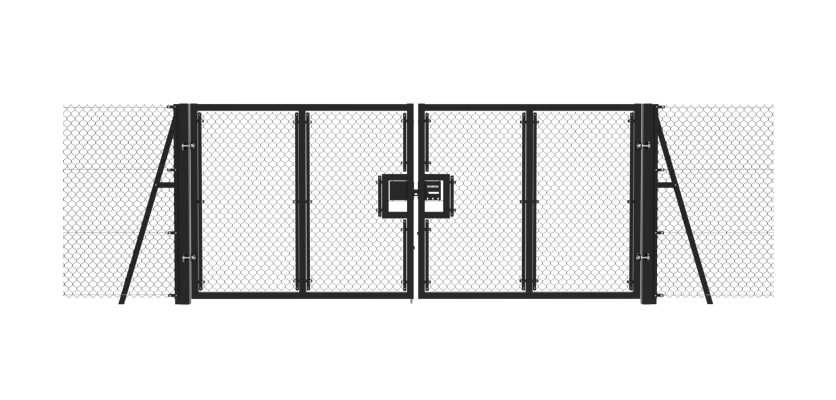

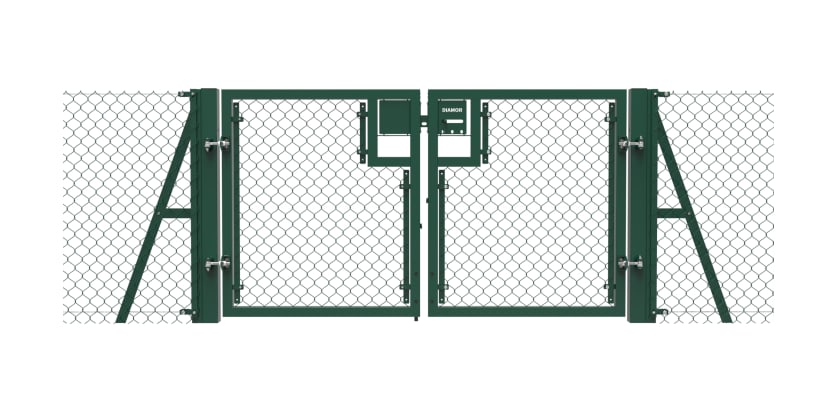

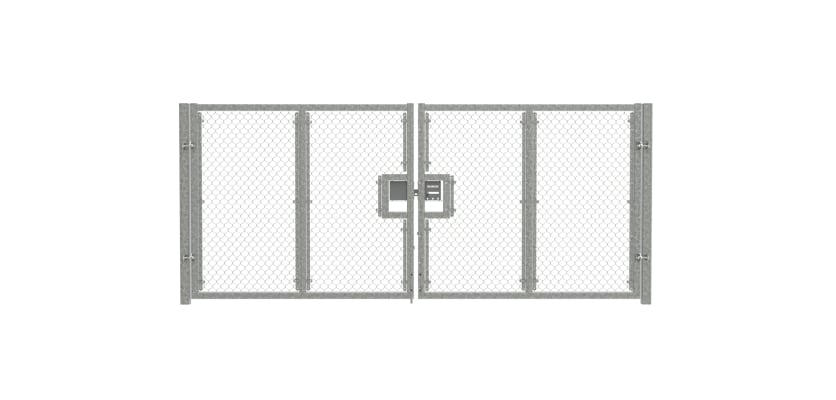

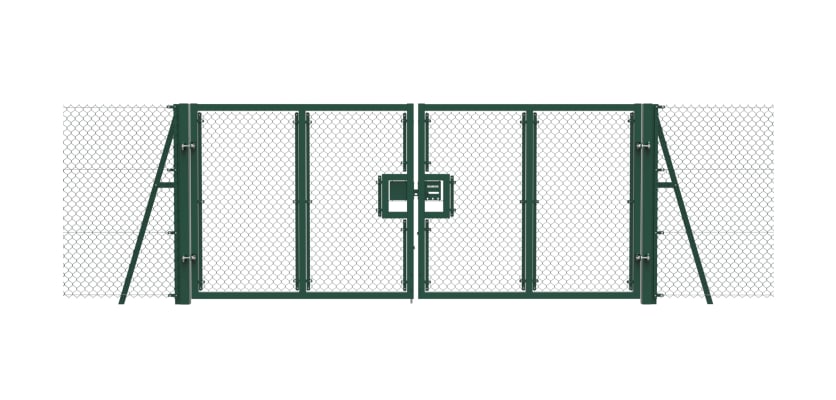

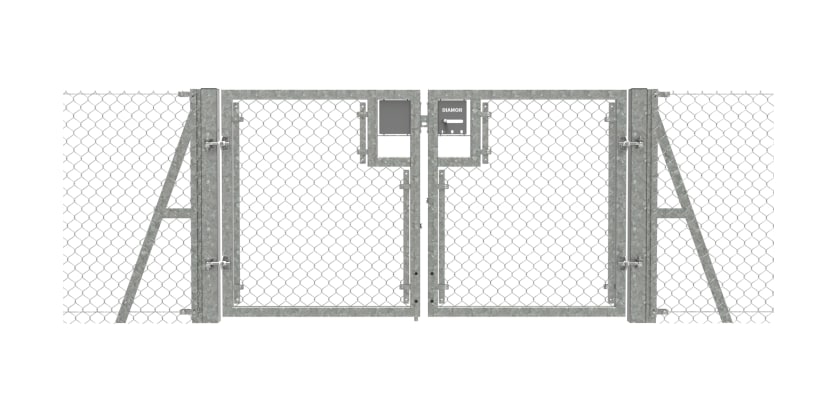

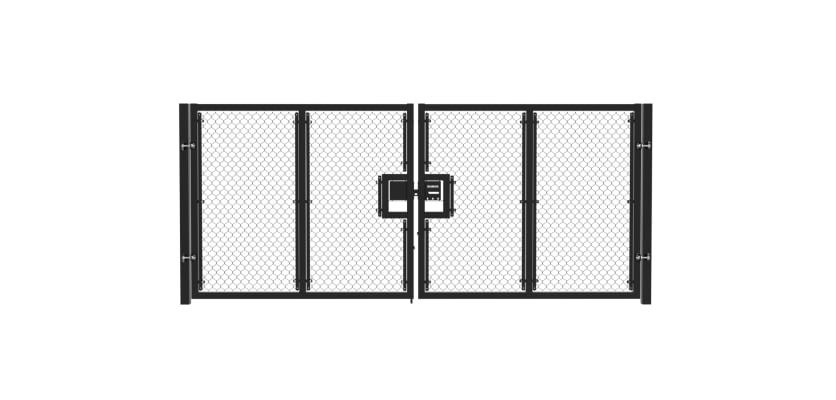

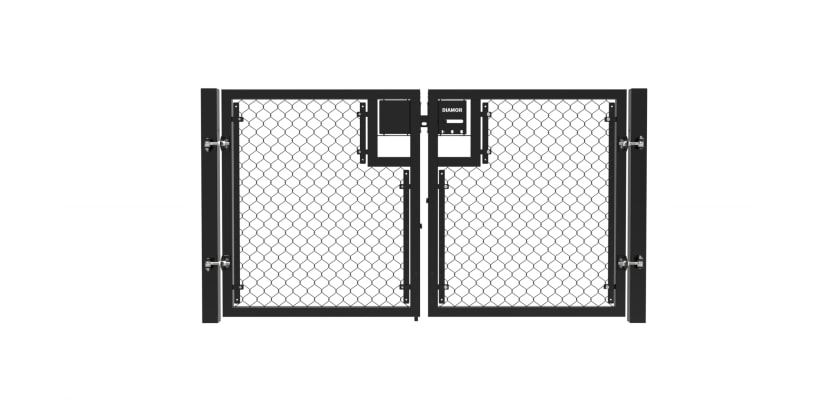

2.4m High Diamor™ Chain Link Double Leaf Gate Kit
Achieve maximum-tier perimeter security and establish high-clearance vehicle control with our 2.4m High Chain Link Double Leaf Gate Kit. Engineered as an ultra-robust, industrial-grade dual-gate solution, this kit creates an imposing, anti-climb entryway. It is the premier choice for high-security commercial perimeters, industrial compounds, logistics hubs, and restricted public infrastructure.
Designed to seamlessly integrate with heavy-duty 2.4m wire fencing layouts, this 8ft double chain link gate offers an exceptional physical barrier that delivers serious deterrence against unauthorised breaching attempts while maintaining completely clear sightlines for security cameras and perimeter monitoring.
Product Specifications & Customisation
Tailor this industrial double leaf mesh gate to your exact site specifications with our versatile range of total opening widths and finishes:
- Available Widths (Total Span): 2.0m, 3.0m, 4.0m, 5.0m, and 6.0m
- Available Finishes: Standard Galvanised Steel, Polyester Powder-Coated Black, or Polyester Powder-Coated Green
- Installation Type: Dig-in posts only (engineered for deep below-ground anchoring in heavy soil, concrete foundations, or soft ground)
Features and Benefits
- Twin-Leaf Maximum Vehicular Clearance: The dual-gate configuration provides maximum clearing widths, serving as an ideal budget-friendly solution for HGVs, flatbeds, heavy machinery, and emergency service access tracks.
- Industrial-Grade Structural Integrity: Fabricated from steel, the robust 2.4m double frames and reinforced support posts offer maximum rigidity. They are engineered to endure high-frequency commercial use without sagging or losing alignment.
- Ultimate Weatherproofing Shield: Every kit is galvanised and finished with an optional polyester powder coating as standard. This provides an uncompromising, rust-resistant barrier inside and out, ensuring a completely rot-proof, low-maintenance commercial service life.
- Aerodynamic Wind Defiance: At a commanding 8ft height, a solid double gate faces immense wind loading risks that can warp frames or snap hinges. Our open-weave diamond mesh allows heavy gales to pass cleanly through the structure, completely eliminating the ‘sail effect.’

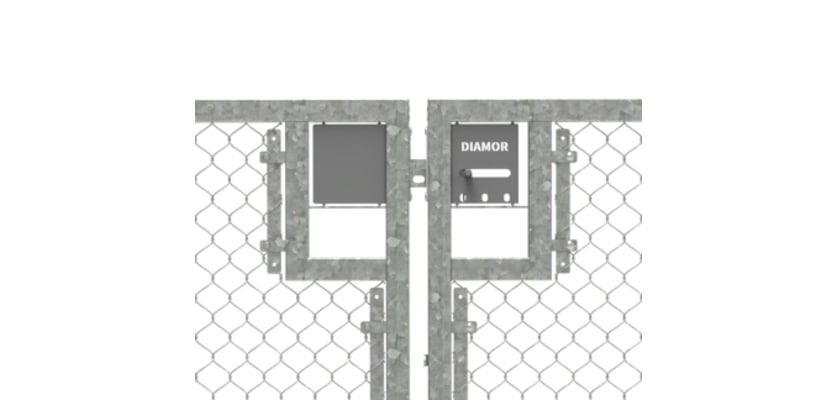

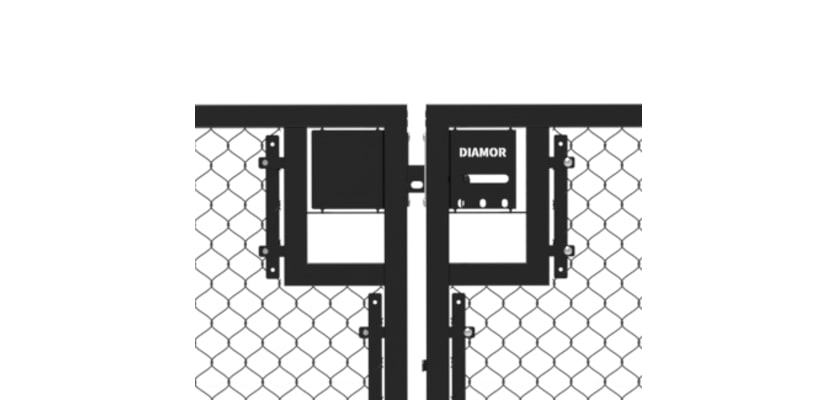

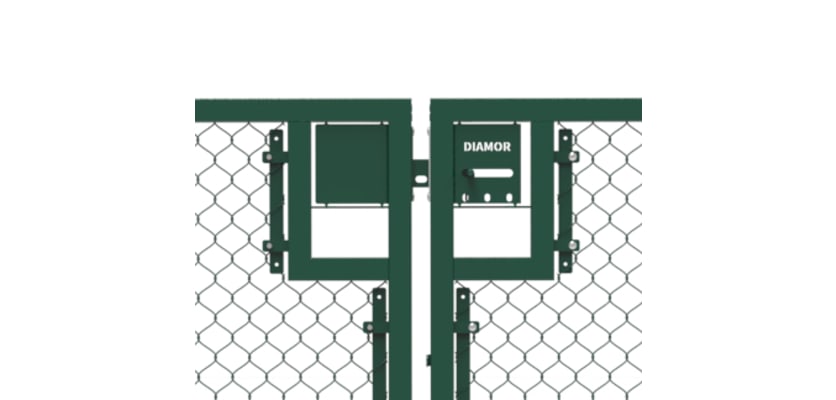

- Advanced Security Modularity (Unislide Kit Included): Each double gate system is equipped with a versatile Unislide Kit. This hardware allows security contractors to effortlessly upgrade to secure mechanical digital locks, keyed entry, or electronic card-access systems to match your facility's protocols.
- Cost-Effective High Security: When securing an expansive industrial entrance, a chain link double leaf gate offers an unbeatable cost-to-benefit ratio. Get a towering, lockable physical barrier at a fraction of the cost of heavy automated palisade or bespoke ironmongery gates.
What’s Included in Your Kit?
Our industrial double chain link gate kits are supplied as comprehensive, high-security systems ready for immediate deployment:
- 2.4m High Double Leaf Gate (Chosen Width): Twin steel gate frames, pre-filled with high-tensile galvanised chain link wire mesh.
- Hinge & Catch Posts: Two matching steel posts engineered for deep below-ground anchoring to safely support the massive swinging weight of both 8ft leaves.
- Drop Bolt & Central Catch: Includes a heavy-duty ground drop bolt mechanism, allowing you to lock one leaf firmly into the ground for pedestrian access, or open both sides fully for wide vehicle clearance.

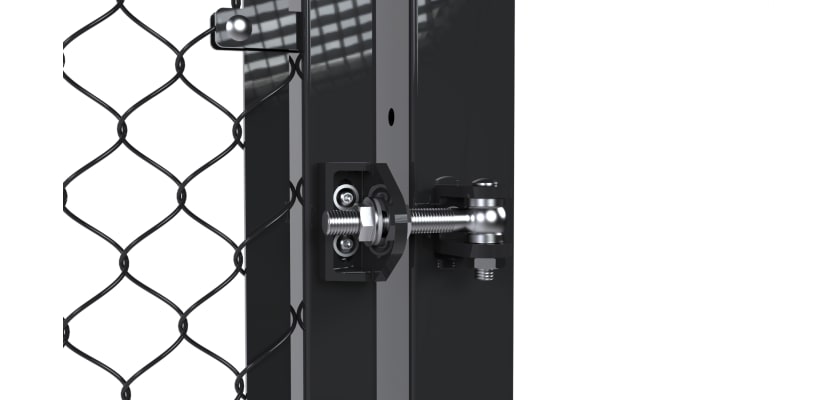

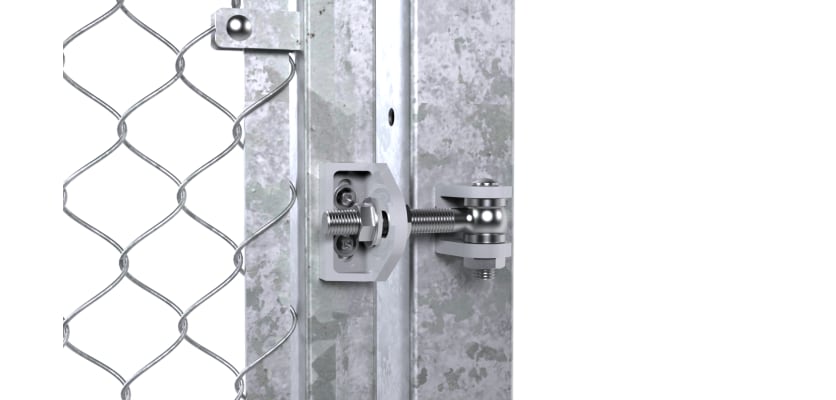

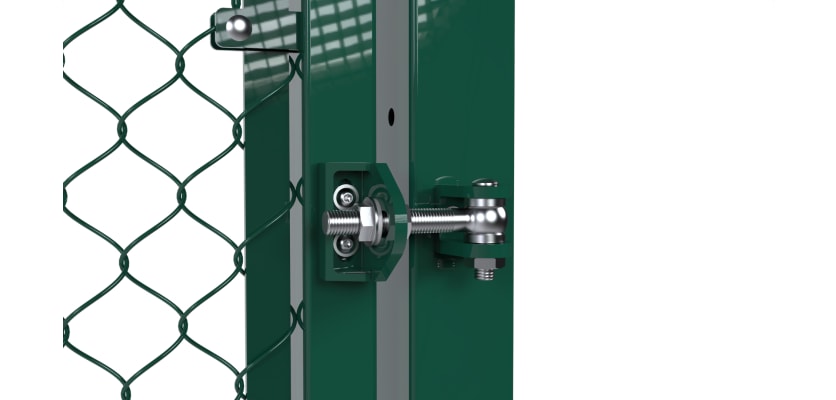

- Commercial Hardware: Fully adjustable hinges and a secure, heavy-duty sliding latch mechanism. These gates include the Locinox Bolt On HD 4D Adjustable Hinges for precise adjustment.
- Professional Installation Tip: This is a dig-in only format. Due to the full 2.4m industrial height and significant dynamic weight of the twin gate leaves, you must use a minimum of 4 bags of post mix per post for stability and a perfectly plumb line under heavy daily usage.
Versatile Applications
- Industrial & Commercial Compounds: Functions as a highly secure, low-maintenance main vehicle entrance gate alongside larger commercial security fencing and palisade installations.
- Utility Compounds & Critical Infrastructure: Creates wide, highly visible entry points around restricted sub-stations, water works, and storage yards, maintaining clear visibility for site security cameras.
- Logistics Hubs & Freight Terminals: Provides high-clearance access lines for commercial delivery fleets and heavy haulage vehicles.
- Schools & Sports Facilities: Allows installers to establish secure, towering boundary lines to control public vehicle access while keeping high-flying sports balls contained.
Explore Complementary Products
To create a uniform, gap-free perimeter, pair this double gate system with our standard 2.4m Chain Link Fencing Rolls, Steel Strainer Posts, and Intermediate Line Posts for a long-lasting, completely rot-free industrial installation.
Contact Us
Our friendly and helpful sales team is here to assist with any questions or technical queries you may have regarding these chain link gate kits or any of our other ground protection and perimeter fencing items. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or through our online live chat service.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Width | 2.0m, 3.0m, 4.0m, 5.0m, 6.0m |
| Total Post Length | 3200mm |
| Post Box Section | 80mm x 80mm [2.0, 2.4 and 3.0m wide], 100mm x 100mm [4.0, 5.0 and 6.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 2.4m high chain link mesh dig in hinge post 80x80 box section | 2 |
| 2.4m chain link universal mesh gate leaf cladded kit | 2 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 2 |
| Blank slide bolt security plate double kit | 1 |
| Unislide double slider padlockable gate kit | 1 |
| 60x60 black ribbed inserts | 4 |
| 80x80 black ribbed inserts [2.0 and 3.0m wide only] | 2 |
| 100x100 black ribbed inserts [4.0, 5.0 and 6.0m wide only] | 2 |
| 15mm plastic ribbed plug | 8 |
| First Fence branded locking drop bolt kit | 2 |
