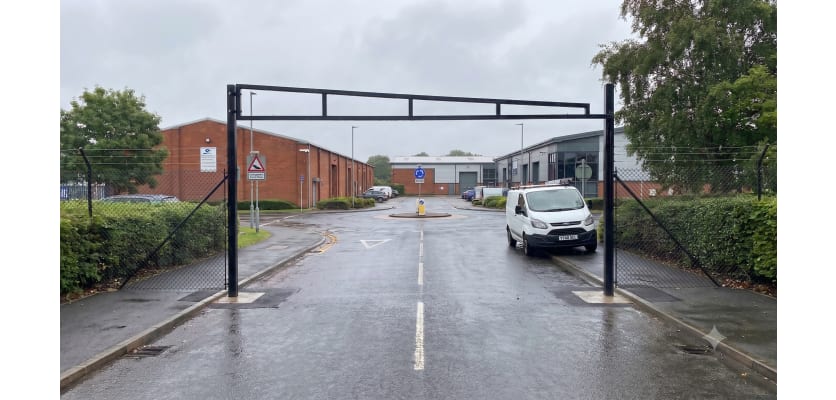

FirstLine® 2.2m High x 5.0m Wide Swing Height Restrictor Barrier
Product Description
FirstLine® 2.2m High x 5.0m Wide Swing Height Restrictor Barrier
Enhance your site’s security infrastructure with our professional FirstLine® 2.2m High x 5.0m Wide Overhead Access Barrier. This heavy-duty High-Level Swing Arm Kit is precision-engineered for regulating vehicle heights at expansive commercial hubs and industrial portals. Fabricated from industrial-grade mild steel, the unit utilises a wide pivoting arm to maintain a 2200mm vertical clearance, ensuring standard cars pass through while providing a manual bypass for oversized service vehicles.
This specialised barrier is dedicated to vertical space management. It is the perfect choice to:
- Inhibit Over-Height Entry: Effectively deter high-sided vans or lorries from entering parking zones while facilitating uninterrupted flow for passenger cars.
- Preserve 24/7 Access: Maintain a welcoming entrance for pedestrians and standard motorists without the need for restrictive ground-level gates.
- Enable Selective Clearance: Effortlessly swing the top-level arm open for authorised maintenance, emergency services, or scheduled deliveries.
Key Security & Features
- Tough Build: Constructed using 100x100mm steel box section hinge and receiver posts to ensure maximum structural stability.
- High-Visibility Nudge Bar: Features a suspended 80x40mm nudge bar designed to act as a physical and visual alert for approaching drivers.
- Reliable Locking Mechanism: Outfitted with a dedicated locking kit to keep the swing arm firmly anchored in its closed position.
- Corrosion Protection: A standard pre-galvanised finish (conforming to BS EN 10346) provides enduring defence against harsh weather.
Installation and Customisation
Engineered for long-term stability, the support posts include a 1000mm dig-in tail for deep concrete immersion. While the default finish is galvanised steel, we offer professional powder coating in a variety of custom RAL shades (BS EN 13438) to align with your facility's aesthetic.
Ideal Applications
- Commercial Retail Parks: Restricting tall commercial vehicles from shopper parking areas.
- Private Transit Routes: Ensuring only standard-sized passenger traffic utilises private lanes.
- Industrial Facilities: Safely managing height-sensitive loading bays and under-canopy zones.
- Municipal Open Spaces: Preventing unauthorised access by motorhomes or high-clearance campers.
Which Barrier Is Right For You?
Selecting the best vehicle access system depends on how traffic moves through your site and the specific security concerns you need to address:
- Double Swing Barrier with High-Level Arm: The ultimate security setup. Combines this height restrictor with ground-level gates for total site lockdown and maximum deterrence.
- Single Leaf Ground Barriers: Best for entry points with ample swing room. Simplifies locking with a single meeting point at the receiver post.
- Double Leaf Ground Barriers: Perfect for wider openings with limited clearance, as the shorter leaves require half the swing space of a single gate.
Contact Us
To discuss the technical specifications of the 2.2m x 5.0m High-Level Double Swing Barrier or to request a formal quote for your project, our team is ready to help. They can be reached by calling 01283 512 111, emailing sales@firstfence.co.uk or using Live Chat, available via our website for instant support.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 5.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 0.5m High x 5.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Adjustable Gate Eye [150mm] | 2 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 4500mm [Welded Lugs] | 1 |
| 15mm Plastic Ribbed Plug | 16 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
