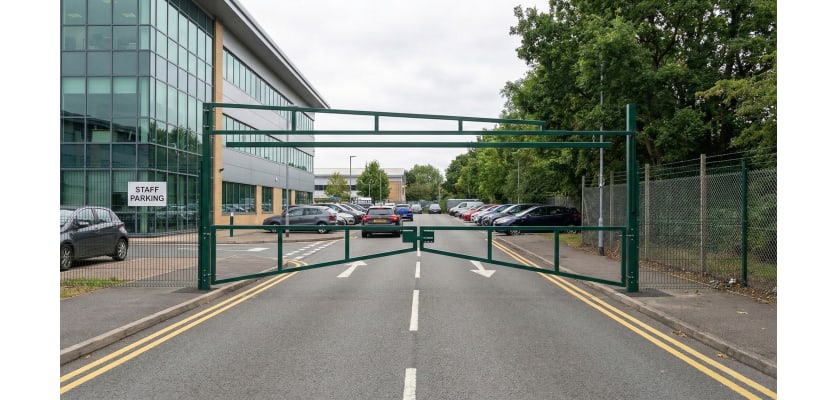

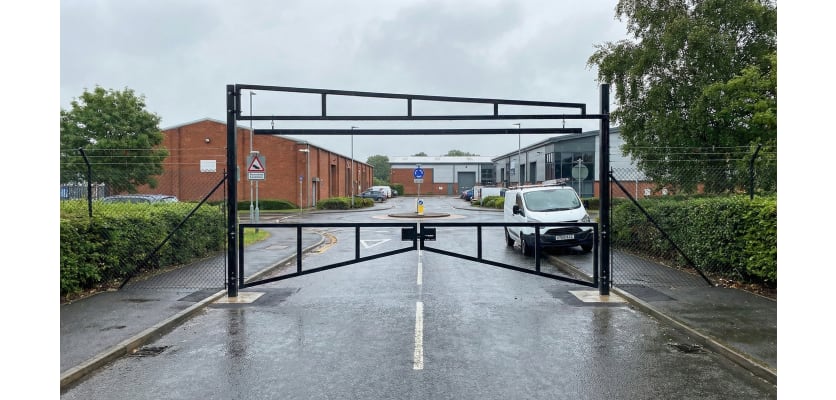

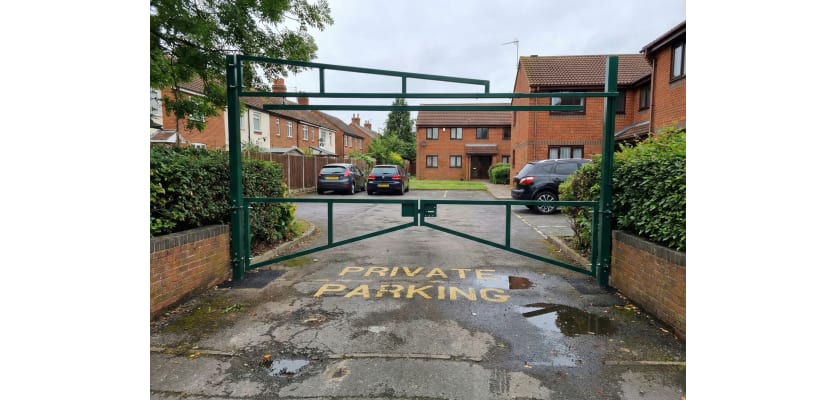

FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 3.0m Wide
Product Description
FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 3.0m Wide
The FirstLine® Double Swing Barrier with High-Level Swing Arm Kit is a premium security solution designed for sites requiring maximum height visibility and robust access control. This dual-leaf system is specifically engineered to secure wide entrances, such as industrial estate main gates, distribution centres, and high-security commercial yards. By utilising two synchronised swing arms paired with a high-level restrictor kit, this barrier provides a formidable physical and visual deterrent to unauthorised vehicle entry.
Enhanced Visibility for HGV & Heavy Traffic
Made from high-grade pre-galvanised steel, this double swing gate barrier is built for the rigours of high-traffic environments and harsh British weather. The inclusion of the High-Level Swing Arm Kit ensures it is clearly visible to HGV drivers sitting high in their cabs, significantly reducing the risk of accidental site collisions. The galvanisation process provides a deep-seated zinc coating that protects against rust and corrosion, ensuring a maintenance-free service life.
Versatile Dual-Leaf Operation
The double-leaf configuration offers superior flexibility for wide access points. Whether managing a two-way haulage road or a wide warehouse entrance, the dual arms can be opened independently or together.
- Smooth Operation: Each arm is mounted on heavy-duty posts for a reliable opening circle.
- Ergonomic Design: Features a vertical reach bar, allowing staff to control the height restrictor safely from ground level without the need for ladders.
Professional Grade Security & Stability
Security is at the heart of the design. The barrier utilises a Unislide double slider padlockable gate kit and a blank locking plate. This modular design allows you to upgrade or swap the lock kit easily using pre-lasered holes.

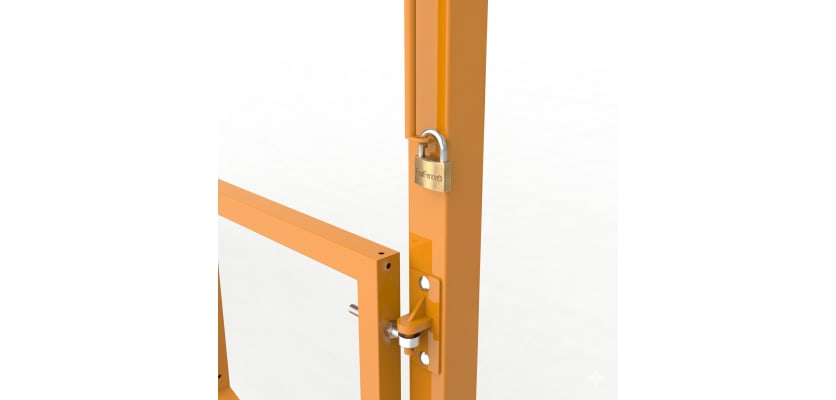

- Central Locking: A robust sliding bolt system secures both leaves firmly. Add a heavy duty padlock for extra security.
- Precision Alignment: Adjustable gate eyes ensure a perfect central meet during installation.
Installation and Customisation
- Dig-In Ground Mounting: This style is ideal for new builds or areas with softer ground. Posts are set deep into concrete foundations for maximum leverage resistance. We recommend 4 bags of Post Mix per post (sold separately).
- Bespoke Finishes: Available in high-visibility Safety Yellow, Emergency Red, or custom RAL colours to match corporate branding or local planning requirements.
- Catch Kits: To protect against wind damage and hinge strain, this product includes catch post kits. These keep the gates safely locked in the fully open position during operating hours.
Ideal Applications
- Logistics & Distribution: High-level arms prevent cab-height impacts in busy loading bays.
- Construction & Quarries: Maintains visibility even in rugged, dusty environments.
- Retail & Supermarkets: Prevents out-of-hours fly-tipping and unauthorised parking.
- Emergency Infrastructure: Provides wide-span access for fire tenders and utility vehicles.
Contact Us
Need a bespoke width or a technical drawing for your project? You can reach our sales team by phone at 01283 512 111, email us at sales@firstfence.co.uk, or use our live web chat for an immediate quote.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 3.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 1.5m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 3.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 2500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
