FirstLine® 2.2m High x 4.0m Wide Swing Height Restrictor Barrier
Product Description
FirstLine® 2.2m High x 4.0m Wide Swing Height Restrictor Barrier

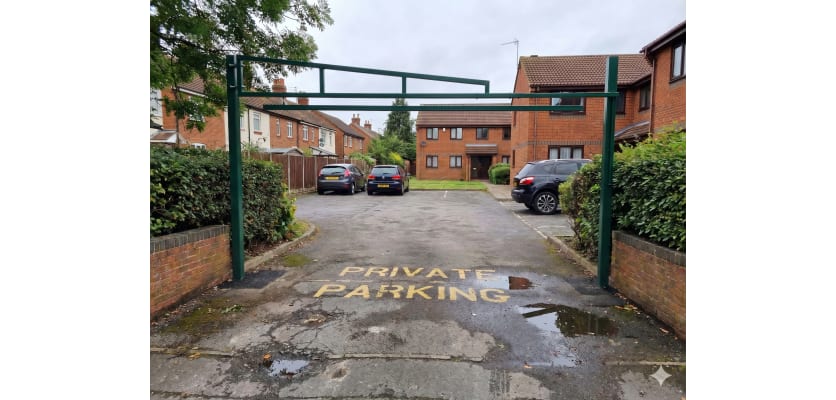

Elevate your premises' safety with our professional FirstLine® 2.2m High x 4.0m Wide Overhead Access Barrier. This heavy-duty High-Level Swing Arm Kit is precision-engineered to regulate vehicle heights at busy commercial hubs and industrial portals. Fabricated from industrial-grade mild steel, the unit utilises a 4.0m wide pivoting arm to maintain a 2200mm vertical clearance, ensuring standard cars pass through while providing a manual bypass for oversized service vehicles.
This specialised barrier is dedicated to vertical space management. It is the perfect choice to:
- Inhibit Over-Height Entry: Effectively deter high-sided vans or lorries from entering parking zones while facilitating uninterrupted flow for cars. The high-level arm is at eye-level for truck drivers, helping to prevent accidental post bumps.
- Preserve 24/7 Access: Maintain a welcoming entrance for pedestrians and standard motorists without the need for restrictive ground-level gates.
- Enable Selective Clearance: Effortlessly swing the top-level arm open for authorised maintenance, emergency services, or scheduled deliveries.
Key Security & Safety Features
- Sturdy Build: Made using 100x100mm steel box section hinge and receiver posts to ensure maximum structural stability.
- High-Visibility Nudge Bar: Features a suspended 80x40mm nudge bar designed to act as a physical and visual alert for approaching drivers.
- Reliable Locking Mechanism: Outfitted with a dedicated locking kit to keep the swing arm firmly anchored in its closed position.
- Corrosion Protection: A standard pre-galvanised finish (conforming to BS EN 10346) provides enduring defence against harsh weather.
Installation and Customisation
Designed for permanent security, the posts feature a 1000mm dig-in section for secure concrete anchoring. While the standard finish is galvanised, this product is available in a powder-coated finish to any custom RAL colour (BS EN 13438) to match your corporate branding.
Ideal Applications
- Commercial Retail Parks: Restricting tall commercial vehicles from shopper parking areas.
- Private Transit Routes: Ensuring only standard-sized passenger traffic utilises private lanes.
- Industrial Facilities: Safely managing height-sensitive loading bays and under-canopy zones.
- Municipal Open Spaces: Preventing unauthorised access by motorhomes or high-clearance campers.
Which Barrier Is Right For You?
Selecting the most suitable vehicle access system comes down to your site’s traffic patterns and the particular security risks involved:
- Double Swing Barrier with High-Level Arm: The ultimate security setup. Combines this height restrictor with ground-level gates for total site lockdown and maximum deterrence.
- Single Leaf Ground Barriers: Best for entry points with ample swing room. Simplifies locking with a single meeting point at the receiver post.
- Double Leaf Ground Barriers: Perfect for wider openings with limited clearance, as the shorter leaves require half the swing space of a single gate.
Contact Us
For more information on the 2.2m High x 4.0m Wide Double Swing Barrier, or to discuss bespoke requirements, please contact our team. You can reach us by phone at 01283 512 111, email sales@firstfence.co.uk, or use our online chat system to speak with an expert today.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 4.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 0.5m High x 3.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Adjustable Gate Eye [150mm] | 2 |
| Steel Telescopic Beam Kit [50x50x1.5mm x 1500mm] | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 3500mm [Welded Lugs] | 1 |
| 15mm Plastic Ribbed Plug | 16 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
