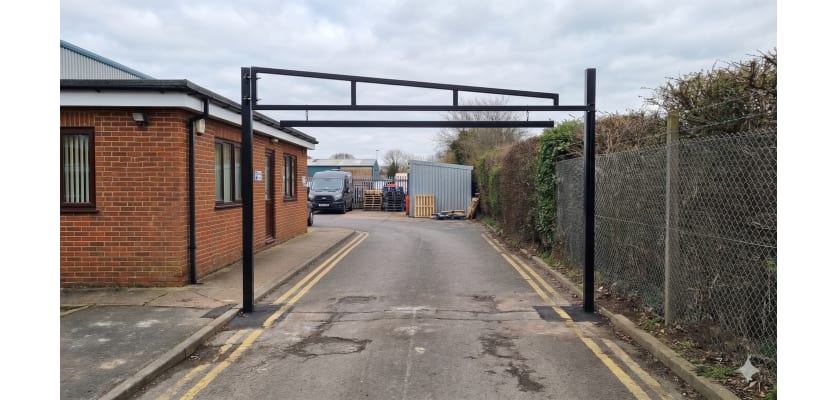

FirstLine® 2.2m High x 3.0m Wide Swing Height Restrictor Barrier
Product Description
FirstLine® 2.2m High x 3.0m Wide Single Leaf Height Restrictor Barrier
Optimise your site security with our professional FirstLine® 2.2m High x 3.0m Wide Height Restrictor. This robust High-Level Swing Arm Kit is engineered for precision vehicle height management at car parks, private roads, and industrial entrances. Constructed from heavy-duty mild steel, the system features a 3.0m wide swing arm providing a 2200mm clearance, perfect for standard traffic while allowing manual override access for authorised over-height vehicles. This anti-van barrier does not have lower gates; however, the high-level arm is at eye-level for truck drivers, which helps prevent accidental post collisions.
This overhead clearance control barrier focuses purely on vertical clearance management. It is the ideal solution for sites that require:
- Prevention of Over-Height Access: Block vans, campers, or HGVs from entering restricted car parks while allowing cars to pass freely.
- Constant Site Accessibility: Keep your site open to pedestrians and standard traffic 24/7 without the need for a ground-level gate.
- Emergency & Delivery Clearance: The high-level arm can be manually unlocked and swung open for authorised deliveries or emergency service vehicles.
Key Security & Safety Features
- Industrial-Grade Build: Features 100x100mm box section hinge and receiver posts, providing maximum structural integrity against impact and wear.
- High-Visibility Nudge Bar: Includes a 2500mm adjustable suspended nudge bar. This serves as both a physical and visual warning, alerting drivers to height limits before they reach the main barrier.
- Corrosion Protection: The standard pre-galvanised finish to BS EN 10346 ensures long-term protection against the British weather, providing a maintenance-free lifespan.
Installation and Customisation
Designed for permanent, high-security installation, the posts feature a 1000mm dig-in section for deep concrete anchoring.
Custom RAL Colours: We offer professional Polyester Powder Coating (BS EN 13438). Finish your barrier in safety yellow, emergency red, or corporate colours to enhance visibility and branding.
Ideal Applications
- Retail & Supermarket Car Parks: Deterring oversized vans and preventing unauthorised overnight stays.
- Public Parks & Amenity Sites: Controlling access for caravans, motorhomes, and large commercial vehicles.
- Private & Residential Access Roads: Limiting traffic flow to passenger vehicles only to reduce road wear.
- Industrial Loading Bays: Managing specific height-restricted zones within busy logistics hubs.
Which Barrier Is Right For You?
Selecting the right vehicle access solution depends on your site's specific traffic flow and security needs:
- Double Swing Barrier with High-Level Arm: The ultimate security setup. Combines this height restrictor with ground-level gates for total site lockdown and maximum deterrence.
- Single Leaf Ground Barriers: Best for entry points with ample swing room. Simplifies locking with a single meeting point at the receiver post.
- Double Leaf Ground Barriers: Perfect for wider openings with limited clearance, as the shorter leaves require half the swing space of a single gate.
Contact Us
If you require technical specifications for the Double Swing Barrier with High-Level Swing Arm Kit or need a bespoke width for your project, please contact us. You can reach our sales team by phone at 01283 512 111, email us at sales@firstfence.co.uk, or use our live web chat for an immediate quote.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 3.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 0.5m High x 3.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Adjustable Gate Eye [150mm] | 2 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 2500mm [Welded Lugs] | 1 |
| 15mm Plastic Ribbed Plug | 16 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
