Installed Height | 2000mm [Above Ground Incl. Clearance] |
Total Post Length | 2000mm [Bolt Down] 2600mm [Dig In] |
Panel Width | 2900mm |
Rail Style | Flat Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Material | Pre-Galvanised Steel |
Finish | Polyester Powder Coated (PPC) |
PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
Name | Quantity |
---|---|
EnviroRail® Flat Top Fencing Panel | 1 |
EnviroRail®Flat Top Fencing Posts | 1 |
Support Leg | 2 |
Twist Cleats | 6 |
M10 x 80mm Bolts | 6 |
M10 Shear Nuts | 6 |
Ribbed Insert | 1 |
Presenting the EnviroRail® Flat Top Railing Kit, an innovative solution meticulously developed by First Fence. Notable for its state-of-the-art, environmentally conscious design and manufacturing process, this advanced railing system outperforms traditional alternatives, providing a perfect combination of simplicity and functionality.

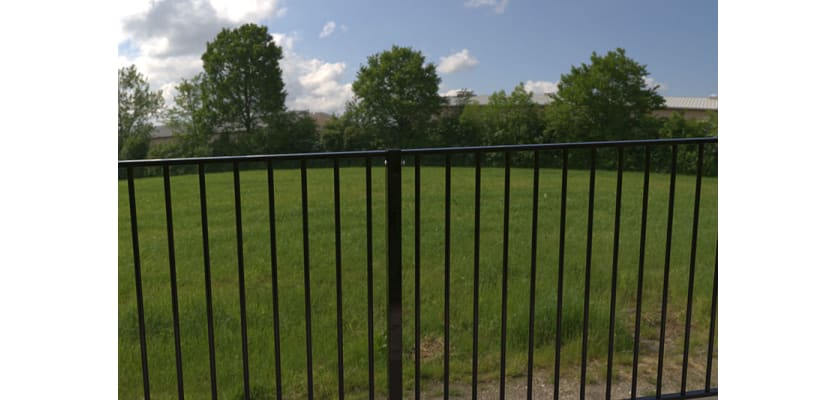

First Fence's EnviroRail® Flat Top Railings offer a versatile fencing solution suitable for diverse applications requiring boundary demarcation without the need for high-security measures. Their sleek and discreet design makes them an excellent choice for public spaces like recreational areas, parks, and gardens, seamlessly blending into various environments and adding a touch of sophistication.

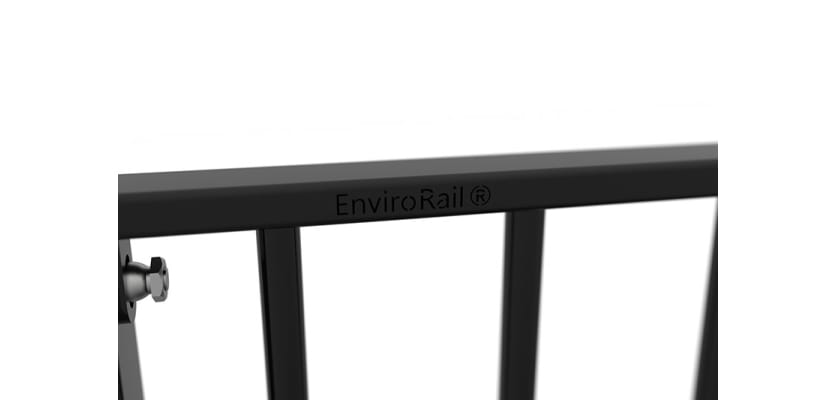

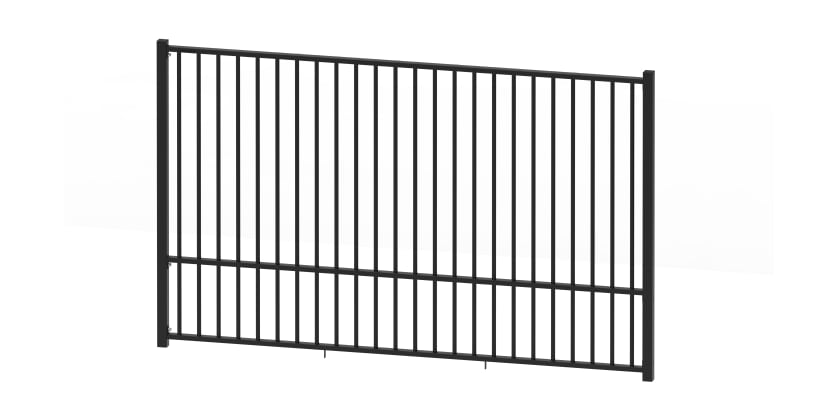

While the 2.0m High EnviroRail® Flat Top Railing Kit may appear typical, it stands out due to its environmentally conscious manufacturing process, minimising reliance on energy-intensive welding. The system utilises tailor-made, laser-cut, pre-galvanised interlocking components, creating robust connections when assembled through a simple pressing mechanism. For those emphasising environmental impact in gate production, this becomes the ideal choice.
These railings are well-suited for delineating areas, guiding pedestrian traffic, and protecting green spaces. In educational settings such as schools, they define perimeters around playgrounds and outdoor learning spaces, enhancing safety and organisation. Moreover, in landscaping applications, they safeguard flower beds and lawns from trampling or damage.

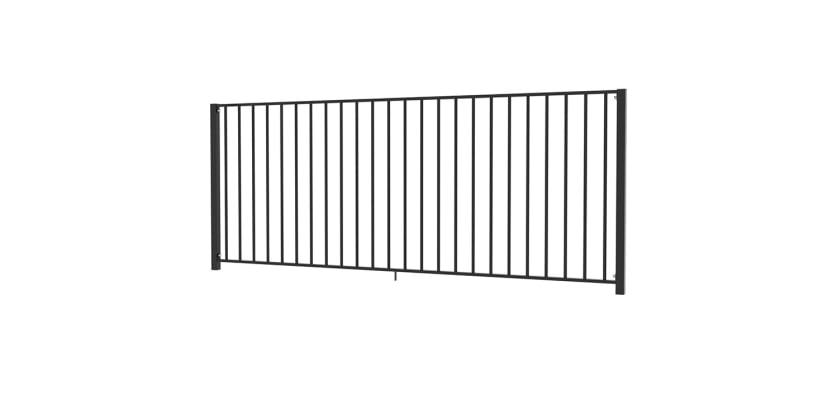

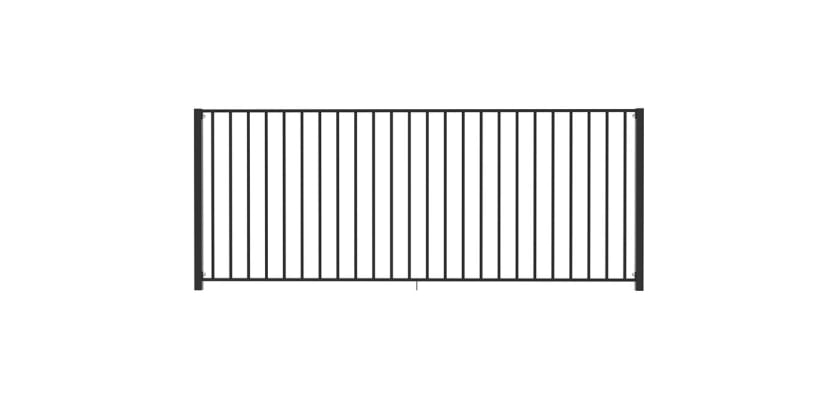

The EnviroRail® Flat Top Railing Kit features a 2900mm wide panel, providing a range of heights to meet specific needs. Designed to complement the EnviroRail® Gate of the same height and style, this kit facilitates the creation of a consistent and cohesive railing run.
Each EnviroRail® kit is comprised of pre-galvanised steel hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

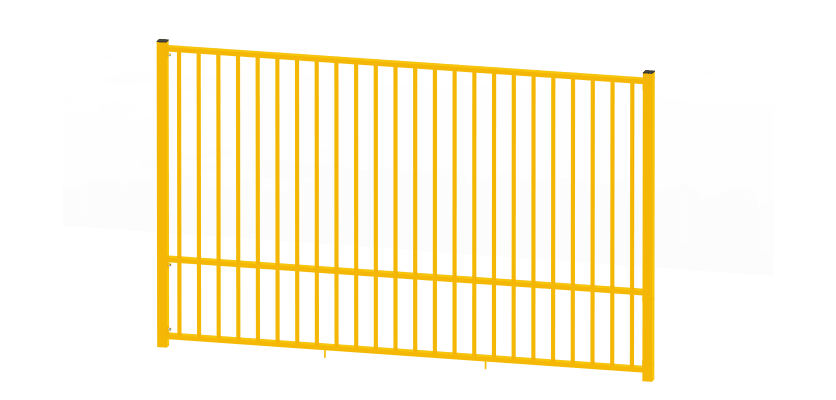

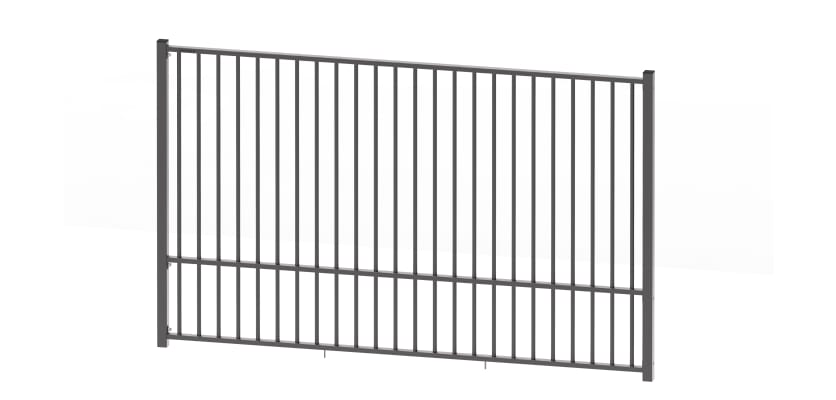

Each kit includes a panel, post, and necessary fixings, with options for both dig-in and bolt-down posts. Crafted from premium zinc-galvanised steel, these railings boast a durable finish, ensuring an extended functional lifespan. Choose from a variety of RAL colours for a high-quality Polyester Powder Coating, adding a personalised touch while providing additional protection and an attractive finish.
For the dig-in selection, Post Mix is recommended, with two bags per post suggested. For the bolt-down selection, add four M16 x 125mm Ground Anchor Bolts per post to your purchase.
First Fence extends its offering beyond the EnviroRail® Flat Top Railing Kit, featuring a comprehensive range of railings in both standard and EnviroRail® formats. Single and double leaf gate varieties are also available. Enhance safety and security with Heavy Duty Padlocks and Locking Drop Bolts, perfectly complementing your gate.
Step One: Drill a 6mm pilot hole in the desired location for the new cleat; this is dictated by the gradient.
Step Two: Open the hole to a 12mm hole size to take the M10 bolts (as listed in the step below).
Step Three: Touch up and spray the hole, if required.
Step Four: Attach the cleat using the M10 x 70mm Square Cup Head Bolt and Shear Nut (for 0.9m to 1.2m height system) or M10 x 80mm Square Cup Head Bolt and Shear Nut (1.5m to 2.4m height systems).
Step Five: Attach the railing panel as per standard installation guidance.
Note: Please ensure the spacing relationships are followed according to the existing hole centres on the posts.
If you have questions regarding the EnviroRail® Flat Top Railing Kit or any other products offered by First Fence, feel free to contact our approachable sales team at 01283 512111 or take advantage of our online chat tool. We are available to provide you with expert assistance and guidance.
