Height | 1800mm [Installed] |
Total Post Length | [Dig In: 2500mm] [Bolt Down: 1800mm] |
Total Width | 1280mm |
Access Width | 1000mm |

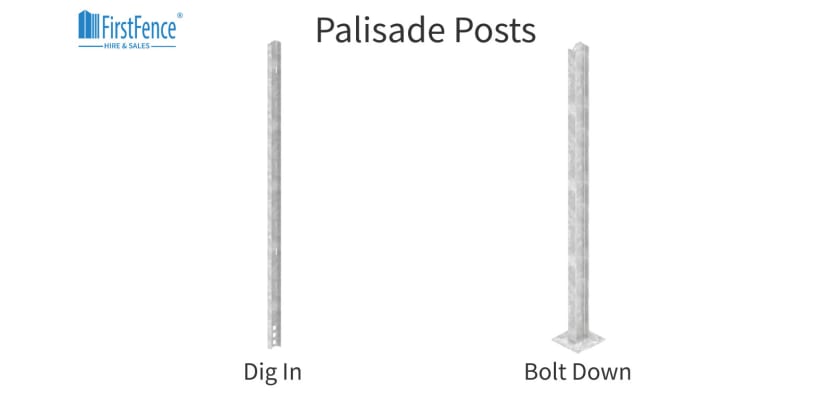

Post Types | Dig in, Bolt Down |
Box Sections of Posts | 80x80mm [Hinge] 80x80mm [Catch] |
Gate Hanging Side | Left Hand Hung [From Outside Looking In] |
Material | Galvanised Steel |
Finish | Galvanised, Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
Compliant To | BS EN ISO 1461:2009 |

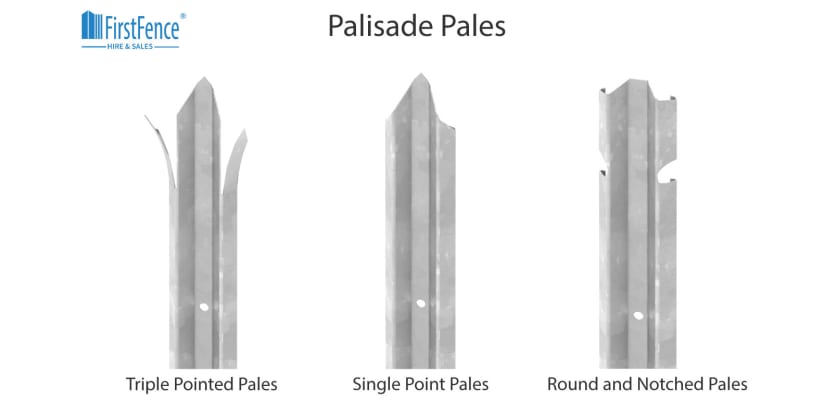

Pale Types | Triple Pointed, Round & Notched, Single Point |
Pale Height | 1750mm |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 2 |
Ribbed Inserts | 4 |
'W' Section Pales | 6 |
Bolt Pack | 1 |
Drop Bolt | 1 |

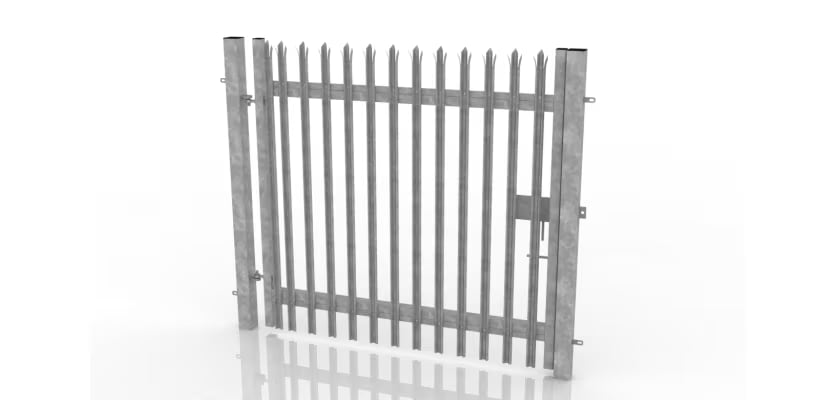

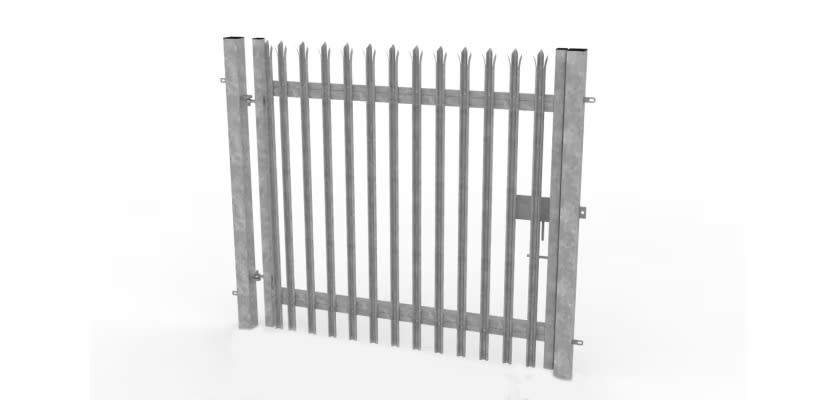

The 1.8m x 1.0m Pedestrian Palisade Security Gate Kit provides a reliable and functional entry point for pedestrians within a palisade fencing system. Designed to balance security with accessibility, this gate is a strong yet practical option for sites that require a clearly defined pedestrian route. Whether for commercial, industrial, or public use, it offers both long-term durability and ease of installation.
Palisade fencing is a familiar sight across the UK, chosen for its combination of strength and visibility. Constructed from vertical steel pales fixed between horizontal rails and posts, it creates a perimeter that is difficult to breach while still allowing clear sightlines for security monitoring. Its no-nonsense appearance also helps to act as a deterrent, reinforcing the impression of a protected boundary.
Palisade fencing is widely used across industrial estates, public infrastructure, schools, and commercial premises, where safety and protection are key priorities.
This 1.0m wide pedestrian gate is manufactured from cold rolled steel, a process that delivers strength and rigidity while keeping the overall weight manageable. This makes the gate straightforward to transport and install without compromising on its robustness once in position.
To ensure long-lasting performance, every gate is hot-dip galvanised in accordance with BS EN ISO 1461:2009 standards. This protective zinc coating shields the steel against rust and corrosion, ensuring the product stands up to outdoor exposure over many years.

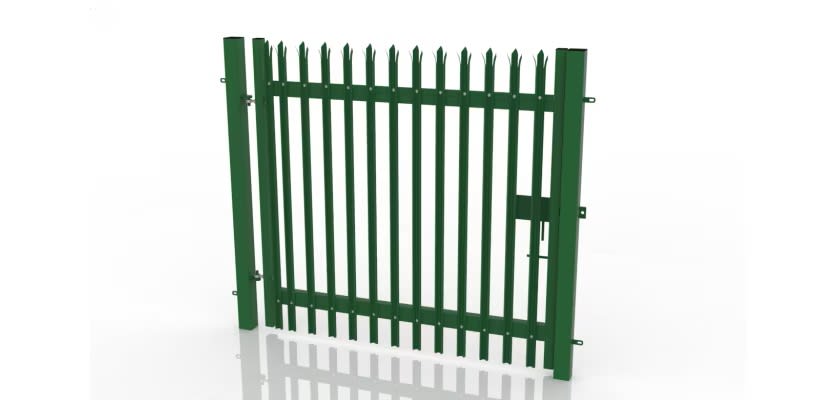

For projects requiring additional protection or a more tailored appearance, the gate can be supplied with a Polyester Powder Coated (PPC) finish in a wide range of RAL colours. This not only enhances the visual impact of the fencing line but also offers an extra layer of defence against wear and weathering.
Purpose-built pedestrian access – creates a dedicated entry point for foot traffic.
Strong steel construction – cold rolled for resilience and durability.
Galvanised protection – complies with BS standards to resist corrosion.
Optional colour finishes – available in a choice of RAL PPC coatings.
Easy to install – designed for straightforward fitting with all necessary fixings included.
This pedestrian gate is suitable for a wide variety of applications, including:
Industrial sites and factories
Business parks and commercial buildings
Schools and educational facilities
Utility and service compounds
Public sector premises
By incorporating this gate into your fencing line, you can ensure safe pedestrian entry and exit while maintaining the strength and security of the overall perimeter.
For more information about the 1.8m x 1.0m Pedestrian Palisade Security Gate Kit, or to discuss customisation options, please get in touch. Call us on 01283 512 111, use our live online chat, or email sales@firstfence.co.uk.
