1.8m High EnviroRail® Bow Top Play Sec Railing Kit - Multicoloured

1.8m High EnviroRail® Bow Top Playground Railing Kit - Multicoloured

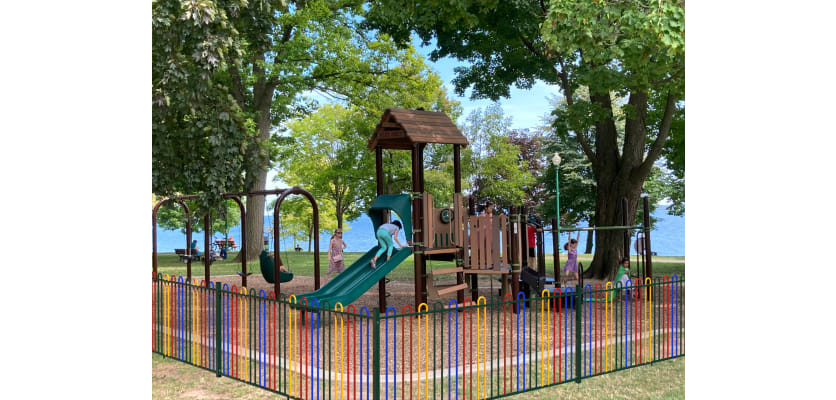

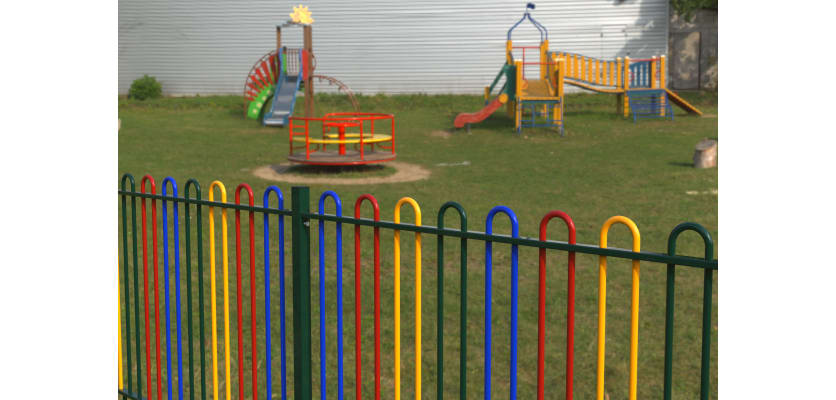

The 1.8m Play Sec Bow Top Railings offer a secure and decorative fencing solution, ideal for playgrounds, parks, schools, and residential areas.

The 1.8m Play Sec Bow Top Railings prioritise safety with a height that prevents unauthorised access and keeps children and pets secure. The rounded top removes sharp edges, while gaps no wider than 89mm prevent limb entrapment. Compliant with BS EN 1176 playground standards, these railings ensure safety in child-friendly areas.

These railings are part of the EnviroRail® range, designed to be a greener alternative to traditional metal bow top fencing systems. By reducing the amount of resource and energy-consuming welding required, the railings utilise custom-designed components that, when pressed together, form an incredibly tight bond. This innovative approach results in a high-quality, strong, and hard-wearing railing system that is more environmentally friendly than its counterparts.

Each bay of the 1.8m Play Sec Bow Top Railings is made from pre-galvanised steel hollow tubes, offering strength and durability while keeping the weight low for easier handling, transport, and installation.

Each 1.8m Bow Top Railing Kit includes:

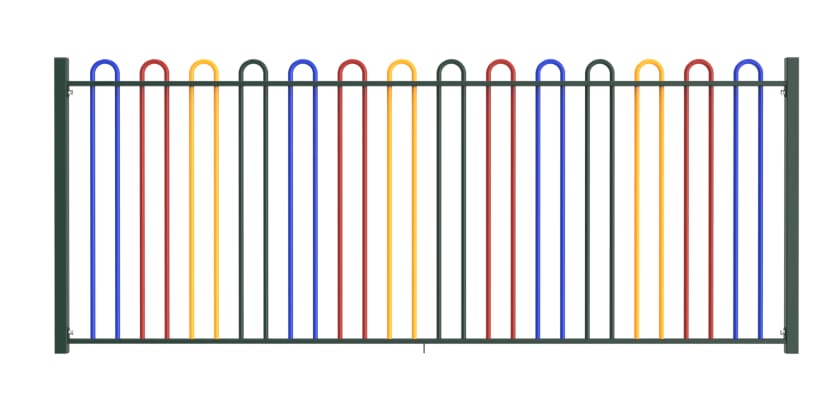

• 1 x 1.8m High EnviroRail® Bow Top Play Sec railing panel
• 1 x railing post
• 1 x support leg
• 1 x ribbed post insert
• 4 x twist cleats
• 2 x M10 x 70mm bolts
• 2 x M10 shear nuts

To suit various locations and ground types, these kits come with either dig-in or bolt-down posts. (Note: Post mix and ground anchor bolts are not included and must be purchased separately).

Polyester Powder Coated Finish

The EnviroRail® 1.8m Bow Top Playground Railing kits come with a high quality Polyester Powder Coating (PPC). This product line comes in a multicoloured finish allowing you to create bright and colourful play area perimeters. These coatings also provide an additional function of protecting the steel against the damaging effects of corrosion and rust formation. The bright and varied colours of this railing make a playground more inviting and appealing to children, adding a cheerful and vibrant look. A mix of colours can stimulate children's imagination too. The bright, contrasting colours increase visibility, making it easier for children, parents and supervisors to spot them, avoiding accidents. The distinct colours can also help anyone with visual impairments or colour blindness to navigate the playground more easily.

If the powder coating is damaged, it can be restored using a touch-up spray, maintaining both protection and appearance.

To complement our EnviroRail® Bow Top Play Sec Railing system, we offer a range of compatible Play Sec Gates that seamlessly integrate with the fencing. These gates are designed with the same child-safe features as the railings, ensuring consistency in safety and aesthetics. Available in both single and double leaf options, they can be customised to fit various openings. Our gates utilise the same high-quality materials and construction methods as the railings, providing durability and longevity. With their secure latching mechanisms and compliance with safety standards, these gates offer peace of mind while maintaining easy access to your enclosed area.

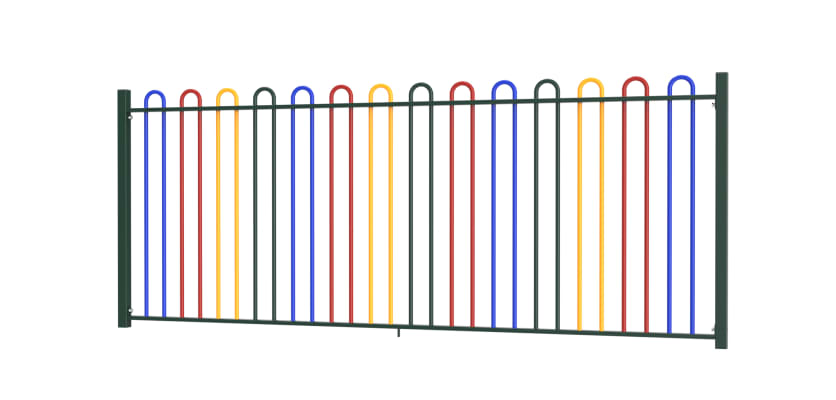

How to step your panel

Step One: Drill a 6mm pilot hole in the desired location for the new cleat; this is dictated by the gradient.

Step Two: Open the hole to a 12mm hole size to take the M10 bolts (as listed in the step below).

Step Three: Touch up and spray the hole, if required.

Step Four: Attach the cleat using the M10 x 70mm Square Cup Head Bolt and Shear Nut (for 0.9m to 1.2m height system) or M10 x 80mm Square Cup Head Bolt and Shear Nut (1.5m to 2.4m height systems).

Step Five: Attach the railing panel as per standard installation guidance.

Note: Please ensure the spacing relationships are followed according to the existing hole centres on the posts.
