1.2m High EnviroRail® Flat Top Railing Kit
Product Description

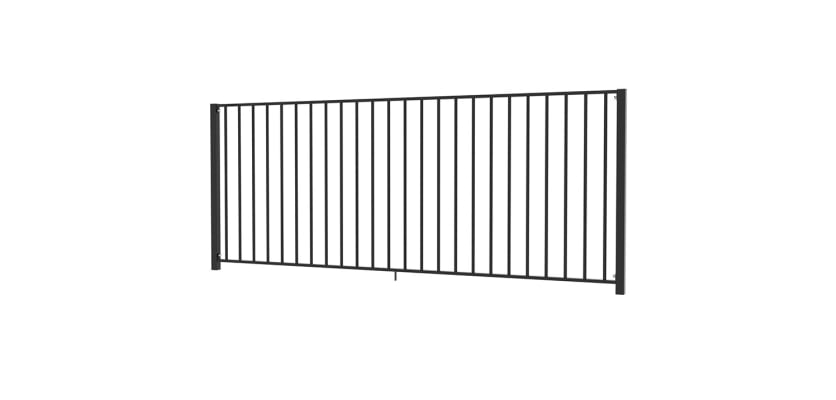

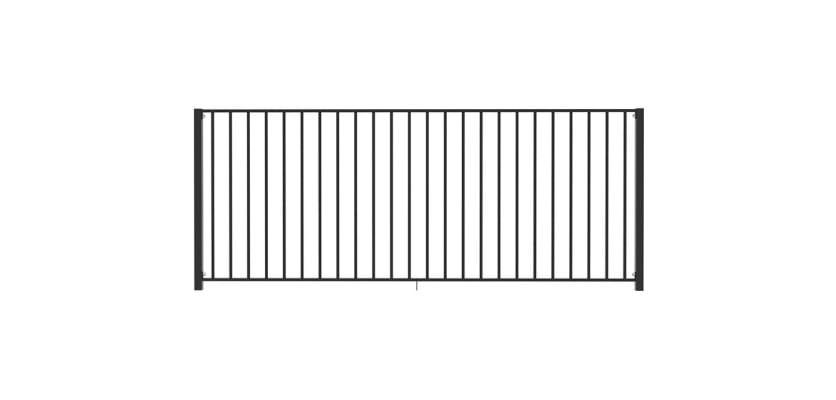

1.2m High EnviroRail® Flat Top Railing Kit
The 1.2m High EnviroRail® Flat Top Railing Kit offers a clean, modern solution for defining boundaries and separating spaces. Its simple flat-top design provides a balance of security and visibility, making it ideal for public spaces, schools, parks, gardens and landscaped areas.
The system is particularly suited to low-security applications where clear boundary demarcation is required without creating a closed or restrictive feel.
Key Features & Benefits
- 1.2m high with a 2900mm wide panel
- Clean, flat-top design suitable for a range of settings
- Ideal for schools, parks, gardens, recreational areas and landscaping
- Helps guide pedestrian traffic and protect green spaces
- Manufactured using pre-galvanised steel tubular sections
- Hollow tubular construction provides strength while keeping weight low
- Available with dig-in or bolt-down posts
- Designed to match the EnviroRail® Flat Top Railing Gates for a uniform finish
- Available with a Polyester Powder Coating (PPC) in a choice of RAL colours
Environmentally Considered Design
EnviroRail® is manufactured using custom-made, laser-cut, pre-galvanised interlocking components that create strong joints during assembly, reducing reliance on energy-intensive welding.
What's Included?
Each kit includes:
- 2900mm railing panel
- Post
- Support leg
- Twisted cleats
- Required fixings
For dig-in posts, we recommend Post Mix, with two bags per post.
For bolt-down posts, M16 x 125mm Ground Anchor Bolts are required and can be added to your order.
Installation
- Drill a 6mm pilot hole in the required position for the new cleat, depending on the gradient.
- Open the hole to 12mm to accommodate the M10 bolts.
- Touch up and spray the hole where required.
- Secure the cleat using the appropriate M10 square cup head bolt and shear nut:
- Attach the railing panel following the standard installation guidance.
Important: Ensure spacing follows the existing hole centres on the posts.
Complete Your Railing System
EnviroRail® is available in a range of heights and styles, with matching single and double-leaf gates available. For additional gate security, consider adding a Heavy Duty Padlock or Locking Drop Bolt.
Explore our full range of railings to find the right solution for your project.
Contact Us
Our friendly sales team can help with any questions about EnviroRail® or our wider range of fencing and access solutions. Call 01283 512111 or contact us via our online chat.
Specifications & Downloads
| Height | 1200mm [Above Ground Incl. Clearance] |
| Total Post Length | 1200mm [Bolt Down] 1700mm [Dig In] |
| Panel Width | 2900mm |
| Weight | 31.5kg [Bolt Down], 31.9kg [Dig In] |
| Rail Style | Flat Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |

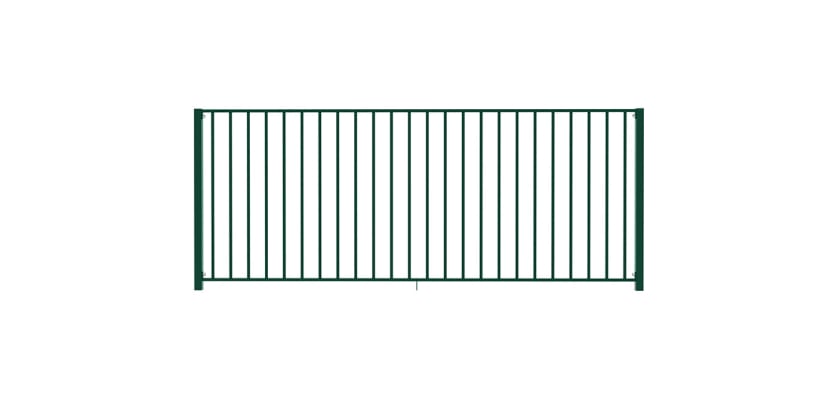

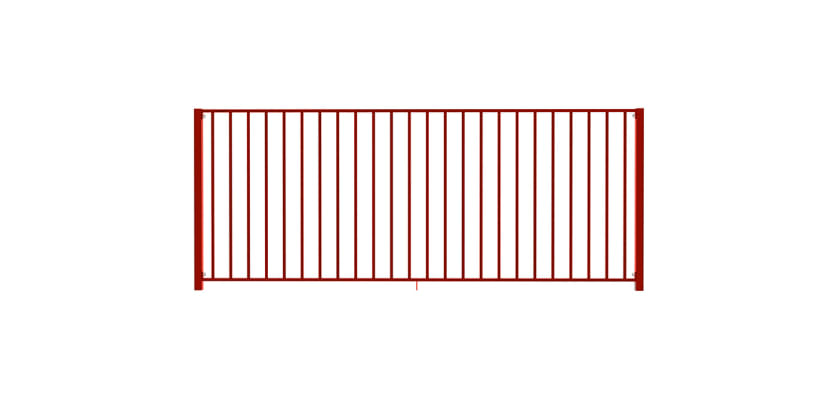

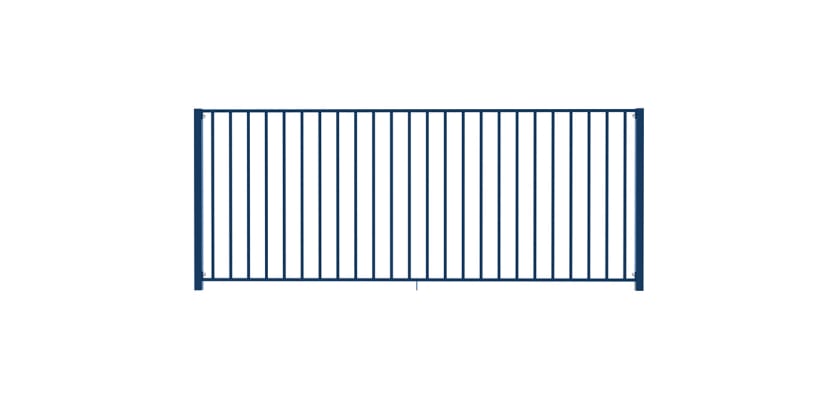

| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
What's Included
| Name | Quantity |
|---|---|
| EnviroRail® Flat Top Fencing Panel | 1 |
| EnviroRail®Flat Top Fencing Posts | 1 |
| Support Leg | 1 |
| Twist Cleats | 4 |
| M10 x 80mm Bolts | 4 |
| M10 Shear Nuts | 4 |
| Ribbed Insert | 1 |
Specifications & Downloads
| Height | 1200mm [Above Ground Incl. Clearance] |
| Total Post Length | 1200mm [Bolt Down] 1700mm [Dig In] |
| Panel Width | 2900mm |
| Weight | 31.5kg [Bolt Down], 31.9kg [Dig In] |
| Rail Style | Flat Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
What's Included
| Name | Quantity |
|---|---|
| EnviroRail® Flat Top Fencing Panel | 1 |
| EnviroRail®Flat Top Fencing Posts | 1 |
| Support Leg | 1 |
| Twist Cleats | 4 |
| M10 x 80mm Bolts | 4 |
| M10 Shear Nuts | 4 |
| Ribbed Insert | 1 |
