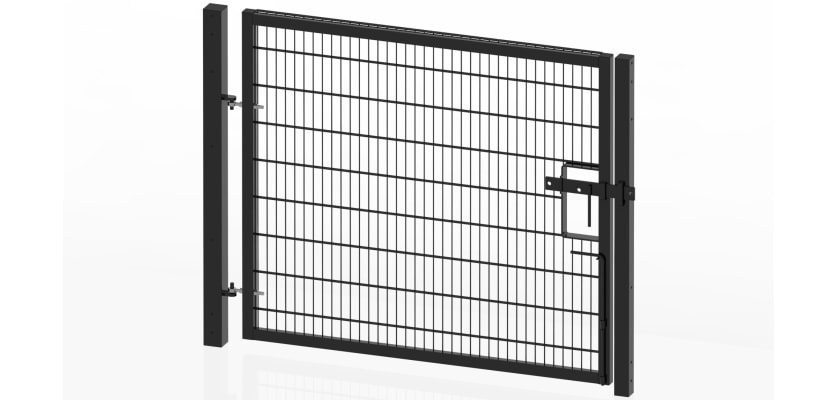

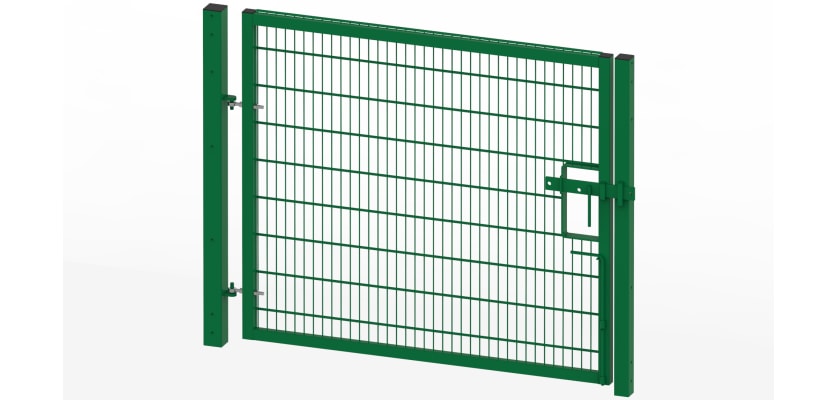

Apollo® 3.0m High x 3.5m Wide 868 Twin Mesh Single Leaf Gate Kit
Product Description
Apollo® 3.0m High x 3.0m Wide 868 Twin Mesh Single Leaf Gate Kit
The Apollo 3.0m High x 3.0m Wide 868 Twin Mesh Single Leaf Gate Kit is a heavy-duty, security-grade solution designed to protect commercial, industrial, and high-risk properties. Constructed with precision-engineered 868 twin wire mesh, this gate delivers outstanding strength, rigidity, and resistance to intrusion, making it ideal for perimeter fencing systems that require both durability and visibility.
This single leaf mesh gate is purpose-built for integration with 868 mesh fencing and offers secure access for vehicles and personnel while maintaining a secure barrier against unauthorised entry.
High-Security 868 Twin Wire Mesh Construction
The gate is manufactured with the trusted 868 twin mesh system, using:
- 8mm thick horizontal twin steel wires
- 6mm thick vertical steel wires
This mesh layout provides: - Superior strength and anti-cut performance
- Resistance to deformation and vandalism
- Excellent visibility for monitoring and CCTV coverage
- Anti-climb characteristics thanks to the tight mesh aperture
This makes the gate ideal for areas requiring a robust yet transparent security barrier.
Designed for High-Security, High-Access Applications
With a height of 3.0 metres, this gate is ideal for securing:
- Warehouses and logistics centres
- Transport depots and infrastructure sites
- Utility stations and critical facilities
- Government or correctional perimeters
- Airports, railways, and military bases
The 3.0m wide single gate leaf ensures easy entry for large vehicles, forklifts, and machinery while maintaining access control.
Built from hot-dip galvanised steel to BS EN ISO 1461 standards, this gate offers excellent corrosion resistance and is suitable for harsh weather and heavy use.
Featuring a three-hinge construction, our Apollo gates offer an additional layer of safety. This design is fully compliant with BS EN 12604, which mandates that the gate must not fall if a single hinge breaks.
Product Features & Specifications
- Gate Size: 3.0m Height x 3.0m Width
- Mesh Type: 868 twin wire (8/6/8 configuration)
- Finish: Hot-dip galvanised for long-term protection
- Leaf Type: Single leaf
- Included Hardware: Hinges, latch, drop bolt, and fixings
- Compatible Fencing: 868 twin mesh security panels
- Applications: Commercial, industrial, utilities, public access control
Why Choose the Apollo 3.0m High x 3.0m Wide Mesh Gate?
The Apollo 868 Mesh Gate Kit is the preferred choice for contractors, facility managers, and security professionals seeking:
- Maximum height for perimeter protection
- Strong anti-cut, anti-climb properties
- High visibility for surveillance compatibility
- Corrosion resistance and weatherproofing
- Fast installation with included hardware
Whether you're upgrading your fencing system, installing a vehicle access gate, or securing a high-risk compound, this gate delivers strength, simplicity, and reliability.
Secure your perimeter with confidence. The Apollo 3.0m High x 3.0m Wide 868 Twin Mesh Single Leaf Gate Kit provides the perfect combination of security, functionality, and durability, engineered for serious protection in demanding environments.
Contact Us
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 3000mm |
| Access Width | 3500mm |
| Total Width | 3900mm |
| Hinge Post Size | 150mm x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
